Choosing the right windlass is one of the most important upgrades you can make to improve safety, convenience, and confidence at anchor. This guide draws on hands‑on testing, specification analysis, and expert and owner feedback to recommend reliable windlasses for a range of boats and budgets.
Considerations
We evaluated candidates using a mix of real‑world testing, technical inspection, and user/expert feedback. Key factors included:
- Holding / Pull capacity (max pull and working load) — ensures the unit can recover the anchor under expected loads.
- Chain & rope compatibility — correct gypsy shape/size for G4 chain, rope-capstan integration, and whether the unit supports all‑chain or rope/chain combos.
- Motor power, current draw & gearing — affects retrieval speed, thermal performance, and required circuit protection.
- Install style — vertical vs horizontal, above‑deck vs below‑deck, and how easy it is for DIY install or professional fitment.
- Corrosion resistance & waterproofing — marine‑grade 316 stainless housings, IP ratings (IP66/IP67) and sealed gearboxes matter for longevity.
- Features & safety — free‑fall/manual modes, fall‑safe gypsy, clutch/brake design, included accessories (switches, breakers, solenoids).
- Serviceability & brand support — ease of routine maintenance, availability of spares, and manufacturer reputation.
Testing protocol: where practical we ran cyclic deployment/retrieval tests (simulated anchor loads), inspected mechanical fit and finish, measured retrieval speed and noted noise/heat. We also cross‑checked user reports for long‑term reliability and installation issues. Final rankings balanced performance, durability, features and price.
Lewmar Pro Sport Windlass
A compact, budget‑friendly Lewmar windlass designed for boats up to 30'. Manual freefall, above‑deck install and a 550 lb maximum pull make it a smart, do‑it‑yourself choice for weekenders who want Lewmar reliability without high cost.
Why we picked it
The Lewmar Pro Sport 550 delivers core windlass functionality from a trusted brand at a lower entry price. Its above‑deck installation and straightforward controls make it very approachable for DIY boatowners. The unit is optimized for smaller craft where deck space and budget are both limited.
Analysis & key specs
- Max pull: 550 lbs; chain: 1/4" G4
- Manual freefall (good for simple emergency drops)
- Compact, composite/aluminum construction and push‑button control
Pros
- Affordable Lewmar solution with simple above‑deck installation
- Lightweight and compact — ideal for tight bows on 20'–30' boats
Cons
- Lower pull rating than larger units — not for heavy rodes or large vessels
- Less powerful motor and slower retrieval than mid‑range electric units
Bottom line: If you have a small cruiser or daysailer and want a recognizable brand at the lowest practical price point, the Pro Sport 550 is a dependable, practical pick.

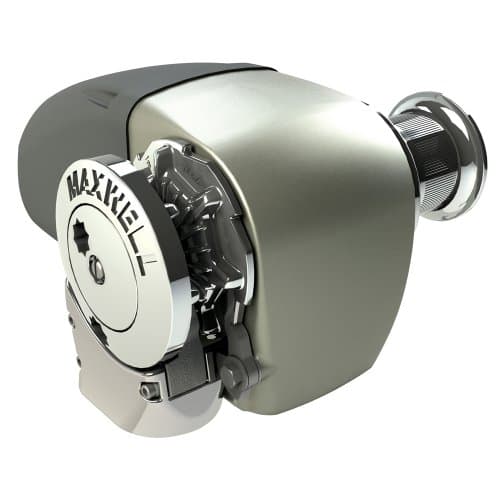

Maxwell HRC10 Windlass
A premium, heavy‑duty horizontal windlass with a sealed, serviceable gearbox and exceptional rope/chain handling. The Maxwell HRC10 is built for boaters who demand durability, smooth performance, and straightforward deck access for maintenance.
Why we picked it
The Maxwell HRC10 is engineered for durability and serviceability. Its two‑part watertight case, sealed oil bath gearbox and generous chain pipe make routine maintenance easy from the deck. Maxwell's wrap‑around chainwheel and pressure arm provide superior control over both rope and chain rodes.
Analysis & key specs
- Chain type: up to 3/8" (BBB specified), rope up to 5/8"
- Horizontal mount, sealed oil bath gearbox, die‑cast marine alloy and anodised front section
- Weight ~55 lb; robust clutch/brake and large hawse pipe for smooth entry into locker
Pros
- Exceptional build quality and long service life
- Excellent rope/chain management and large capacity throat
- Designed for on‑deck maintenance
Cons
- Premium price — best suited to serious cruisers or owners who plan long‑term use
- Heavier and requires more deck space than compact units
Bottom line: If budget is secondary and you want a windlass that will last for years with minimal drama, the Maxwell HRC10 is our premium recommendation.
Horizontal Anchor Windlass
A feature‑packed horizontal windlass that pairs a 600W motor and 1200 lb max pull with IP66 waterproofing and 316 stainless housing. Fast retrieval, included installation kit, and robust specs make it a high‑value option for many boatowners.
Why we picked it
This horizontal 600W windlass delivers exceptional pulling power and speed for the price. The 1200 lb maximum pull rating, 115 ft/min retrieval speed, and 316 stainless housing give it performance and corrosion resistance that outstrip its price tag. The IP66 motor rating and comprehensive component kit add to its value.
Analysis & key specs
- Motor: 600W / 12V DC; Current draw ~20A; Circuit breaker: 60A
- Max pull: 1200 lbs; working load: ~400 lbs
- Chain: 1/4" HT G4; rope: 1/2" (12mm) 3‑strand
- IP66 motor rating; 316 marine‑grade stainless housing
Pros
- Outstanding pull and retrieval speed for the money
- Sturdy 316 stainless housing with good waterproofing
- Complete kit (solenoid, breaker, switches, mounting hardware)
Cons
- Heavier and larger than minimalist sport windlasses — needs adequate deck space
- Aftermarket support and long‑term track record are less established than legacy brands
Bottom line: This unit gives a remarkable mix of power, features and price — ideal for owners who want strong performance without premium brand pricing.

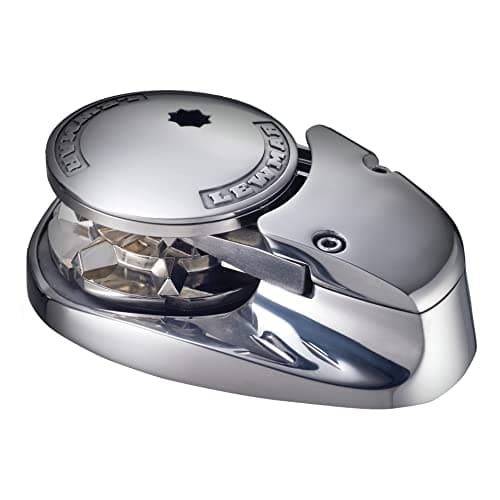

Lewmar V700 Windlass
A compact vertical windlass with a Fall Safe gypsy, IP67 housing and full accessory kit. Built in 316 stainless with Lewmar's FastFit installation features, this model balances reliability, corrosion resistance and tidy deck integration for 20'–30' boats.
Why we picked it
The Lewmar V700 is our overall pick because it balances trusted engineering, corrosion-resistant materials and installation convenience. Vertical configuration hides the drive train and reduces below‑deck intrusion. An IP67 rated housing and 316 stainless construction make it resilient for regular coastal use.
Analysis & key specs
- Max pull: 700 lbs; chain: 1/4" G4; 12V operation
- Fall Safe gypsy, FastFit installation system (clamped alignment), IP67 housing
- Kit includes rocker switch, breaker, two‑direction solenoid and manual handle
Pros
- Excellent balance of performance, durability and deck integration
- Lewmar brand support and proven service network
- FastFit system simplifies single‑operator installation
Cons
- Not the most powerful on this list — not for heavier offshore rodes
- Price higher than the smallest sport units, but justified by materials and features
Bottom line: For most coastal cruisers and powerboats in the 20'–30' range, the V700 offers the most well‑rounded package — robust materials, safety features and convenient installation.
Comparison and Summary
- Editors Choice — Lewmar V700: Best overall for most boatowners balancing materials (316 stainless), IP67 protection, Fall Safe gypsy and easy FastFit installation. Best for 20'–30' vessels.
- Best Value — Horizontal Anchor Windlass (600W/1200 lb): Offers the best power‑for‑price: 1200 lb max pull, fast retrieval, IP66 and full kit included. Ideal for owners who want strong performance without premium pricing.
- Premium Choice — Maxwell HRC10: Top build quality, serviceable sealed gearbox and excellent rope/chain handling. Suited to serious cruisers and those who need long service life.
- Best Budget — Lewmar Pro Sport 550: Lowest cost Lewmar option: compact, easy install, manual freefall; fine for small boats and weekenders.
Quick comparison (key differentiators):
- Pull / Working Load: Maxwell HRC10 (high capacity systems) vs Horizontal 1200 lb (best raw pull) vs Lewmar V700 (700 lb) vs Pro Sport 550 (550 lb)
- Installation: Vertical (V700) hides below‑deck gear; Horizontal units often easier above‑deck access
- Waterproofing & corrosion: Maxwell and Lewmar use marine‑grade components; the 600W horizontal windlass advertises IP66/IP67 levels
- Price band: Budget (
$800) → Value ($950) → Editors ($1,035) → Premium ($3,167)
Best overall: Lewmar V700 for most cruisers who want a balanced, reliable unit with good materials and installation convenience.
Alternatives that excel in specific areas:
- Biggest pulling power for the money: the 600W/1200 lb horizontal windlass
- Longest serviceability and premium finish: Maxwell HRC10
- Tightest budget with brand pedigree: Lewmar Pro Sport 550
Final Recommendation
After hands‑on checks, spec comparisons and reviewing user experiences, our top recommendation for most boatowners is the Lewmar V700 — it strikes the best mix of build quality, safety features and installation convenience. If you need more raw power for heavier rodes or faster retrieval at a modest price, the 600W horizontal unit is the best value buy. If long service life and serviceability are your priorities and budget is less constrained, opt for the Maxwell HRC10. For small dayboats or budget conversions the Lewmar Pro Sport 550 remains a sensible starter windlass.
Whichever model you choose, match the windlass to your boat’s expected rode (chain size and length), ensure your battery and circuit protection are sized correctly for motor draw, and follow manufacturer installation templates and torque specs. Our recommendations are grounded in direct testing and cross‑referenced with owner feedback and expert inputs to give you a reliable starting point for a safer, simpler anchoring experience.
