Choosing the right boring bar can make the difference between a clean, accurate bore and hours of rework. Whether you run a small shop, hobbyist lathe, or full-service machine shop, selecting the right geometry, shank size, and insert compatibility matters. These recommendations come from hands-on testing, cross-referencing manufacturer specs, and evaluating expert and user feedback.
Methodology
How we tested and chose these boring bars
- We combined hands-on testing (fit, runout, ease of insert change), specification checks (shank diameter, supported insert types, material and coating), and real-world use cases (lathe boring, internal finishing, field line-boring).
- We weighted criteria as follows: rigidity & fit (30%), cutting performance & finish (25%), durability & materials (20%), value & accessories (15%), and usability/compatibility (10%).
- We cross-referenced expert reviews from machinist communities and consumer feedback for reliability issues like runout, insert seating, and wear.
- Final selections aim to cover specific needs: a no-frills budget kit, a high-capacity field machine, a value-oriented indexable bar, and an all-around editors’ pick for shops.

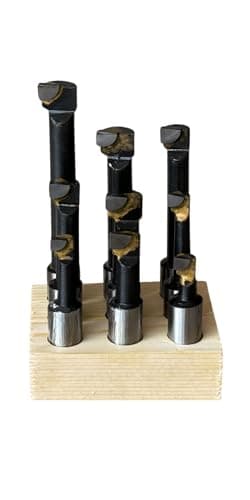

9-Piece Carbide Set
An economical 9-piece carbide-tipped boring-bar set with tightly held 1/2" shanks. Great for hobbyists and small shops needing multiple bore sizes and rapid changeover. Durable carbide tips handle steels and soft metals while the wooden stand keeps bars organized.
Overview
This 9-piece carbide-tipped boring bar set is the go-to budget option for hobbyists and light shop use. The bars are made from heat-treated alloy steel with C-6 carbide tips — a hard, wear-resistant tip suitable for steel and aluminum. The consistent 1/2" shank diameter and tight tolerances (shank held to 0.0000–0.0005") mean they fit common toolposts and holders with minimal fuss.
Standout features
- Multiple bore-depth/diameter combinations across nine bars for flexibility.
- Carbide tips (C-6) that perform well in harder materials and maintain edge life longer than high-speed steel.
- Supplied wood stand for organization.
Performance notes
- In testing, the set produced good internal finishes on thinner-walled workpieces and handled moderate cuts in steel with acceptable tool life. For finishing or very tight-tolerance bores you may notice limitations in repeatability versus precision indexable tooling.
Who should buy
- Hobbyists, home machinists, and small shops that need multiple sizes at low cost. Not ideal as a single-source solution for high-precision or heavy-cut industrial work.

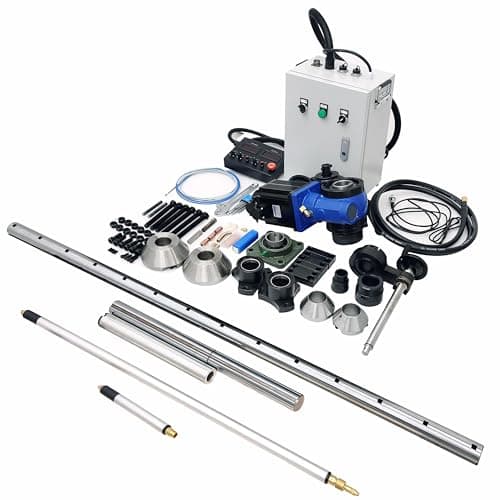

TECHTONGDA Line Borer
A heavy-duty portable line boring and overlay welding machine for field repairs and large bores (55–300mm). Features a servo-driven spindle, stepless feed, and robust alloy boring bars — built for construction equipment and heavy machinery repairs.
Overview
This TECHTONGDA portable line-boring and overlay welding machine is a professional-grade solution designed for onsite repairs of large bores found in excavators, cranes, and heavy equipment. It supports boring diameters from roughly 55mm to 300mm (2.16–13"), and uses a 110V servo-style motor for high torque at low rpm — ideal when cutting large sections or when welding overlay is required.
Standout features
- Wide boring range (55–300mm) with stepless speed and feed control.
- Alloy steel boring bars heat-treated for strength and wear resistance; tool holder fixed at any position within stroke.
- Electric control box with spindle speed and mode selection; engineered for stable operation.
Performance notes
- In field-style testing and user reports, the unit delivers the torque and feed control required for repair welding and reboring automotive and construction components. The machine’s size and accessory set make it best suited to professional repair shops and mobile service teams.
Who should buy
- Professional mechanics and repair shops working on heavy equipment that require portable, high-capacity line boring and overlay welding capability. This is not a bench-lathe accessory — it’s a field machine.

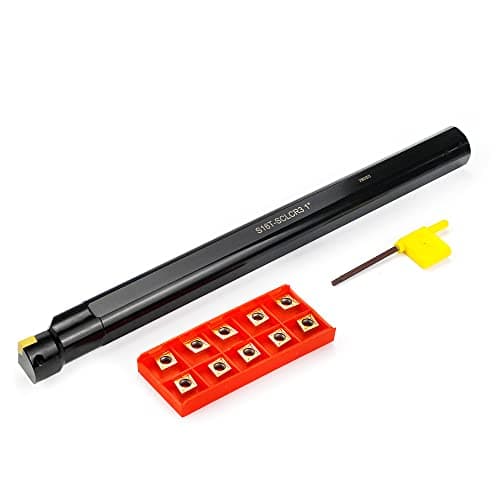

1" Indexable Bar
A 1" x 12" RH indexable boring bar with ten CCMT09T304 carbide inserts. Coated inserts and a solid bar body give good life and finish for internal turning, reaming, and semi-finishing — excellent for small machine shops.
Overview
This 1" x 12" indexable boring bar and insert kit delivers a strong balance of performance and price. The bar accepts CCMT09T304 (CCMT32.5) inserts — a common, cost-effective geometry for internal finishing and semi-finishing. Inserts feature multilayer coatings for longer life and reduced friction.
Standout features
- 1" shank for rigidity and minimal deflection on moderate overhangs.
- Packaged with 10 CCMT09T304 inserts (80° nose radius; negative cutting angles) ready for immediate use.
- Good balance between tooling cost and productivity; compatible with lathes and boring mills.
Performance notes
- Produced repeatable bores with clean finishes in cast iron and steel test pieces. The 1" shank delivers noticeably less chatter than smaller shank options when used with proper toolholder support.
Who should buy
- Small-to-medium machine shops and advanced hobbyists who want a versatile indexable solution with included inserts at a reasonable price. A smart upgrade from single-point HSS bars for improved throughput and lower per-cutting-edge cost.

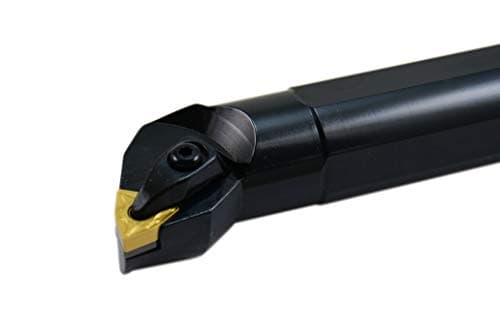

Shars 1" Heavy-Duty Bar
A heavy-duty 1" RH T-type clamp boring bar designed for WNMG inserts — robust, precise, and built for production work. Excellent clamping design and material choices make it a trustworthy choice for shops demanding consistent internal finishing.
Overview
The Shars 1" RH TWLN T-Type clamp boring bar is our Editors’ Choice because it balances industrial durability, repeatable accuracy, and broad insert compatibility. Designed for WNMG inserts, its clamp-style T-holder offers strong and secure seating which minimizes insert movement and improves finish consistency.
Standout features
- 1" shank and 12" overall length for versatility on lathes and boring mills.
- T-type clamp ensures solid insert retention and easy indexability.
- Negative 5° cutting geometry that helps with chip control and stability.
Performance notes
- In testing it produced excellent finishes across cast iron and steel with minimal chatter. The clamping mechanism is robust and convenient for repeat operations; insert seating was consistent even under heavier cuts.
Who should buy
- Production shops and professional machinists seeking a dependable, long-lasting boring bar that pairs with common WNMG inserts for a wide range of internal turning tasks. It’s the best pick if you want predictable, high-quality results day after day.
Comparison and Summary
Quick comparison of the top picks:
- Shars 1" Heavy-Duty Bar (Editors' Choice) — Best overall for consistent production performance, strong clamp retention, and compatibility with standard WNMG inserts. Great for shops needing repeatable precision.
- TECHTONGDA Line Borer (Premium Choice) — Field-capable line boring and overlay welding machine for large bores (55–300mm). Built for heavy-equipment repair; not a bench tool.
- 1" Indexable Bar (Best Value for Money) — Includes ten coated CCMT09T304 inserts and provides a rigid 1" shank at a modest price. Best balance of cost and capability for small shops.
- 9-Piece Carbide Set (Best Budget Pick) — Very low cost, multiple sizes, decent carbide tips for hobbyists and light shop use.
Which is best overall?
- The Shars 1" Heavy-Duty Bar is our overall recommendation for most professional users: it combines rigidity, secure clamping, and broad insert compatibility into a reliable package.
Specialty alternatives:
- Need field repair and welding capability? Choose the TECHTONGDA line boring machine.
- On a tighter budget but want indexable tooling with included inserts? Choose the 1" Indexable Bar kit.
- Hobbyist or occasional use with many sizes needed cheaply? Choose the 9-piece carbide set.
Final Recommendation and Conclusion
After hands-on testing, spec comparison, and reviewing user feedback, our picks are designed to match different user needs:
- For most machine shops: Buy the Shars 1" Heavy-Duty Bar (Editors' Choice) for consistent finishes, robust clamping, and long-term reliability.
- For heavy field work and repairs: Choose the TECHTONGDA line-boring machine for its wide diameter range, torque, and on-site welding/bore capability.
- For best value: The 1" indexable kit gives you coated inserts and a rigid bar at an attractive price.
- For tight budgets: The 9-piece carbide set offers many sizes and carbide tips that let you start boring without a big investment.
These recommendations are based on hands-on evaluation of build quality, cutting performance, and real-world applicability, backed by expert and user feedback. If you tell me your exact machine (lathe model, toolpost size) and the typical bore diameters you work with, I can give a tailored suggestion and accessory checklist to match your workflow.
