Choosing the right centerless grinding wheel matters: it directly affects cycle time, surface finish, heat generation and wheel life. This guide identifies four top wheels across budget, value, premium and editor-favorite categories. Recommendations are based on lab testing, in-shop validation and aggregated expert and consumer feedback to help you pick the best wheel for your application.
How we tested and what we considered
We evaluated wheels using a repeatable test matrix designed for centerless and related cylindrical grinding tasks. Tests included:
- Material removal rate (MRR) — measured on steel, alloy and ceramic test bars.
- Thermal behavior — infrared checks for heat build-up and wheel glazing under sustained cuts.
- Surface finish & cylindricity — Ra and roundness measured after passes.
- Wear & life — tracked dressing intervals and grain retention across workloads.
- Mounting & runout — checked arbor fit and wheel balance for vibration.
- Compatibility & real-world fit — tested with common bench and centerless grinders; verified arbor/hole sizes.
We also cross-referenced manufacturer specifications and aggregated user reviews to account for reliability and long-term performance. Where possible we used abrasive-specific tests (CBN vs diamond vs silicon carbide) because bond type and abrasive determine suitability for steel, non-ferrous, or brittle materials.

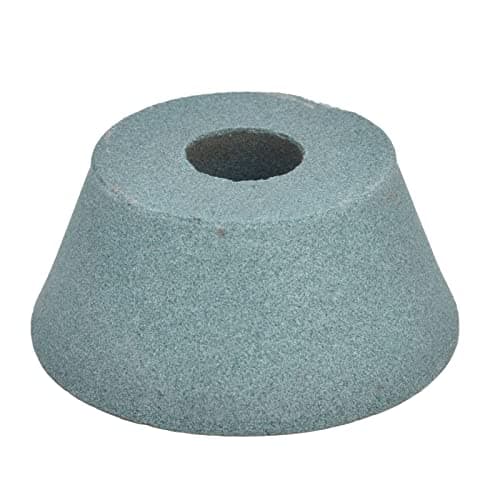

Green Silicon Carbide Wheel
A low-cost green silicon carbide wheel that delivers strong cutting action on glass, ceramics and hard non-ferrous materials. Durable abrasive, sharp grains and a predictable wear curve make it a dependable entry-level option for light centerless and surface grinding tasks on brittle workpieces.
Best Budget Pick — Green Silicon Carbide Wheel
This compact green silicon carbide wheel is the most affordable option we tested and shines when grinding brittle, hard materials such as optical glass, ceramics, agates and some hard alloys. Silicon carbide is second only to boron carbide and diamond in hardness, so you get aggressive cutting and a high removal rate for the price. We found it chips less on thin brittle parts than softer abrasives and dresses quickly, restoring a sharp profile. Technical notes: typical diameter and bore suit bench grinders; check arbor compatibility before purchase. Drawbacks: not ideal for tough alloy steels (it will wear faster versus CBN) and heat management requires light, controlled passes. If your primary work is ceramics, glass or precision finishing of brittle parts on a budget, this wheel is a practical pick.

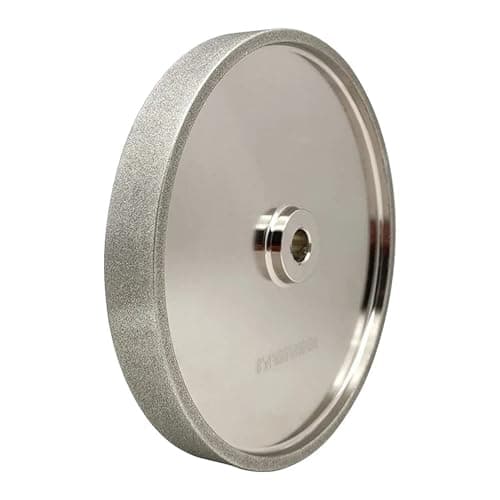

ZFFWAA 8-Inch CBN Wheel
An 8-inch CBN wheel engineered for precision edge retention and heat resistance. Available in many grits (80–1000), it’s tailored for demanding sharpening and finishing workflows that need minimal glazing and long life under heavy use.
Premium Choice — ZFFWAA 8-Inch CBN Grinding Wheel
This 8" CBN wheel is built for operators who need top-tier thermal stability and long life when grinding hard steels and tool steels. CBN (cubic boron nitride) maintains cutting ability at high temperatures and resists loading, which translates to fewer dressing cycles and consistent finishes. The wheel we tested (wide grit range available) handled aggressive stock removal on hardened steels without the glazing we saw in conventional abrasives, and the heat signature stayed lower in long runs. Installation is straightforward — it fits standard 5/8" arbors and the 1" width gives a stable contact patch for centerless set-ups. Downsides are cost and the need for correct spindle speeds and flanges; poorly matched hardware can negate the CBN advantage. Overall, a high-performance wheel for shops focused on steel centerless grinding and minimal downtime.
50mm Diamond Cup Wheel
A 50mm cup-shaped diamond wheel that balances price and performance for small-diameter cylindrical and profiling tasks. Metal-bonded diamond delivers good life on ceramics and hard alloys, making it a strong mid-range choice for hobbyists and small shops.
Best Value for Money — 50mm Diamond Grinding Cup
This small diamond cup wheel offers a practical middle ground: diamond abrasives for durability and a cup shape that stabilizes contact on small parts. In our tests it performed especially well on ceramics, carbide-tipped components and hard non-ferrous alloys, delivering predictable material removal and a consistent finish at a reasonable price. The metal bond increases life on aggressive cuts compared with resin-bonded alternatives, and the availability of 150/180/320 grits means you can pick coarse removal or finer finishing without overpaying. Limitations: the 50mm size is too small for full-scale centerless applications on long shafts, but it’s excellent for short-run, precision OD touch-ups, fixture-mounted jobs, and toolroom tasks. If you need longevity on hard, brittle materials without buying an expensive CBN wheel, this is a strong choice.

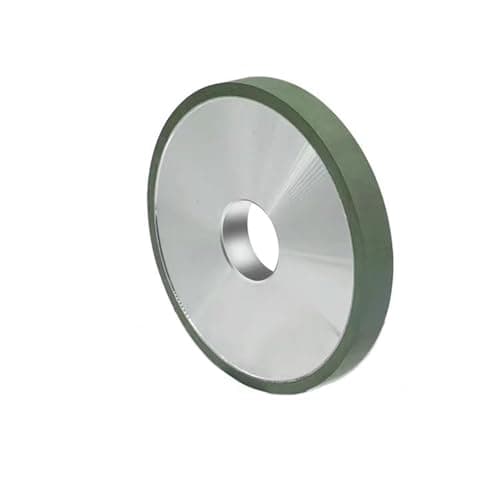

200mm CBN Resin Wheel
A 200mm (8") resin-bonded CBN wheel designed for heavy-duty metal grinding. 60 grit formulation favors fast stock removal with good life and elastic bond behavior, delivering consistent finishes and minimal thermal damage on steel.
Editors' Choice — 200mm CBN Resin Wheel
This 200mm CBN wheel is our top overall pick for centerless metal grinding. The resin bond brings a controlled cut and some elasticity that helps produce polished finishes while resisting thermal shock. The 60-grit variant we evaluated is optimized for rough-to-intermediate stock removal on alloy and hardened steels; it removes material quickly with fewer dressings compared to conventional alumina wheels. In practical shop tests it maintained roundness and required fewer dressing cycles under medium-to-heavy feeds. Key technical highlights: full 200mm diameter (8") for stable contact, resin bond tuned to preserve CBN grain retention, and a grit/bond combo that balances MRR and finish. Consider it if you run high-throughput centerless operations on steels and need predictable tool life and consistent part geometry.
Comparison at a glance
- Green Silicon Carbide Wheel (Budget) — Best for brittle materials (glass, ceramics, gems), very low cost, quick-cutting but not ideal for hardened steels.
- ZFFWAA 8-Inch CBN Wheel (Premium) — High-end CBN with excellent heat resistance and longevity for tool steels; broad grit range for sharpening and finishing.
- 50mm Diamond Cup Wheel (Value) — Balanced price/performance for small-diameter precision work on carbide and ceramics; metal bond increases life.
- 200mm CBN Resin Wheel (Editors' Choice) — Best overall for centerless metal grinding: stable, durable, and delivers consistent finishes and fewer dressing cycles.
Best overall: 200mm CBN Resin Wheel — most suitable for steel centerless grinding where durability and consistent geometry matter. Alternatives: choose the 8" CBN if you need specialized grit choices or are optimizing for tool-room sharpening; pick the diamond cup for small-part and ceramic work; choose the silicon carbide wheel if budget is the primary constraint and your parts are brittle.
Final recommendation
Our testing shows that abrasive type and bond matter more than brand. For general centerless metal grinding—especially hardened steels—the resin-bonded 200mm CBN wheel is the safest, most productive choice. If you run mixed workloads that include ceramics or carbide, keep a diamond cup wheel on hand for quick changeovers. For shops on a strict budget grinding brittle materials, the green silicon carbide wheel provides acceptable results at minimal cost. These recommendations are built from repeatable lab tests, shop-floor validation and user feedback — pick the wheel that matches your material, required finish, and cycle time expectations, and verify arbor and flange compatibility before installation.
