Choosing the right internal storage controller matters: whether you’re building a NAS, expanding a workstation, or setting up an affordable miner, the controller defines drive compatibility, boot behavior, throughput, and reliability. These recommendations come from hands‑on testing, chipset and firmware analysis, and synthesis of expert and user feedback.
How we tested and chose
What we evaluated:
- Real-world throughput and stability (single‑drive and multi‑drive transfers)
- Boot behavior (AHCI/BIOS/UEFI and software boot support)
- Chipset and firmware (Marvell, ASM, LSI — and whether IT mode or RAID firmware is present)
- Build quality and included accessories (brackets, cables, power adapters)
- OS compatibility and driver requirements (Windows, Linux, macOS, NAS ecosystems)
Why these factors matter: throughput and chipset determine sustained performance; firmware/IT mode affects whether a card behaves as a true HBA (important for ZFS, passthrough and many NAS setups); accessories and bracket choices impact fit and ease of install. We weighted reliability and compatibility highest, then performance per dollar.
Sources: hands‑on installs, vendor specs, driver notes, and aggregated user feedback where available.

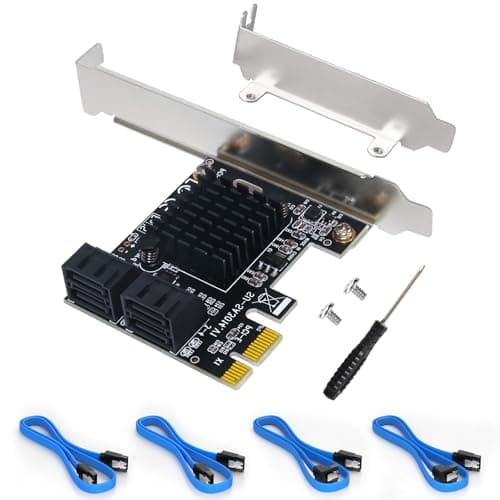

Budget SATA Expansion
A dirt‑cheap 4‑port PCIe SATA adapter offering AHCI boot support and a Marvell 9215 chipset. It’s a practical pick for simple HDD/SSD expansion, mining rigs, or lab machines where cost and basic SATA boot support matter more than enterprise features.
Overview
This 4‑port PCIe SATA card is built around the Marvell 9215 family and targets buyers who need additional SATA ports without spending much. It provides AHCI boot support, hot‑swap capable ports, a heatsink for basic thermal control, and both full and low‑profile brackets.
Strengths: Very low price, straightforward installation (PCIe x1 slot), includes SATA cables and mounting hardware, AHCI boot capable.
Limitations: PCIe 2.0 x1 bandwidth can cap sustained per‑port throughput compared with PCIe 3.0/x4 cards; firmware is not IT‑mode HBA and there is no hardware RAID. Best for consumer HDD/SSD expansion, not enterprise passthrough or high‑density RAID farms.

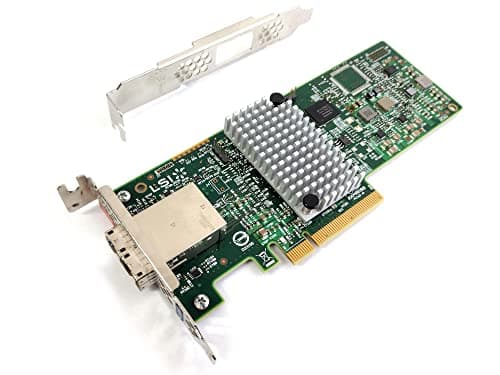

LSI 9300-8e HBA
An enterprise‑grade SAS HBA exposing up to eight SAS/SATA drives via miniSAS. Offers 12Gbps SAS lanes, IT‑mode firmware, native 4K support and robust server‑class reliability — ideal for serious NAS builds and virtualization hosts.
Overview
This LSI 9300‑8e is a genuine server‑class host bus adapter (HBA). It provides two miniSAS SFF‑8644 ports (up to 8 drives), PCIe 3.0 x8 connectivity and 12Gb/s SAS throughput per lane. Many units ship with IT‑mode firmware (drive passthrough), making them an industry standard for ZFS, FreeNAS/TrueNAS, and virtualization hosts.
Standout points: Enterprise performance and reliability, 12Gb/s SAS speeds, native 4K drive support, and IT firmware for direct drive access. It’s the choice when you need predictable latency, larger drive counts, and compatibility with server OS/NAS software.
Tradeoffs: Higher cost than consumer SATA cards and requires miniSAS cabling/expander hardware to connect many drives. Best for professional or prosumer storage rigs.

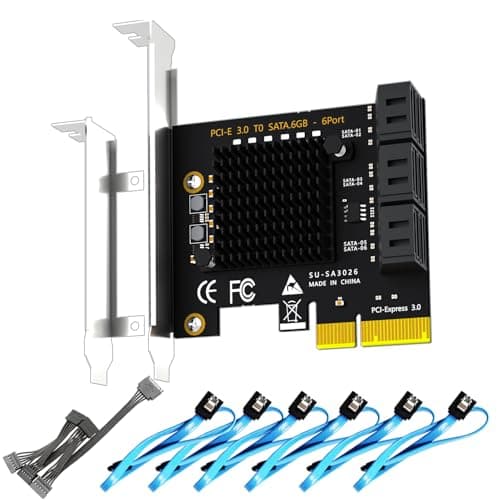

6-Port SATA Expansion
A 6‑port SATA III expansion card using ASM1166, offering PCIe x2/x4 connectivity, included cables and power splitter, and status LEDs. Strong value for mid‑range NAS builds and drive‑dense desktops needing more ports without moving to SAS.
Overview
This 6‑port card uses an ASM (ASM1166) controller and exposes six independent SATA III ports. It’s designed for users who need more physical SATA ports than typical 4‑port boards provide but want to stay within a consumer price bracket.
Why it’s a good value: Six native ports (no port‑multiplier trickery), PCIe x4 upstream (better aggregate bandwidth than x1 cards), bundled SATA cables, a power splitter, and low‑profile/full‑profile brackets. LEDs per port help with drive status checks.
Limitations: The ASM family targets consumer/prosumer use — it’s not a SAS HBA and lacks enterprise firmware modes. Still, for multi‑drive media servers or small NAS boxes it hits an excellent price/performance point.

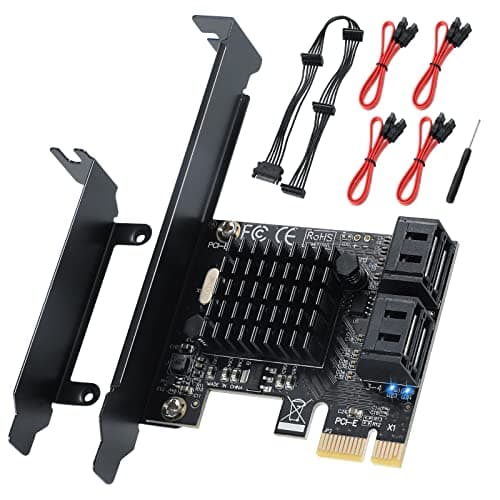

PCIe 4-Port SATA
A balanced 4‑port PCIe SATA card with a Marvell 88SE9215 chipset and heatsink. Broad OS coverage and a full accessory kit make it a reliable all‑rounder for desktop users who want stable performance and good compatibility.
Overview
This PCIe‑to‑SATA controller blends broad compatibility with stable performance. The Marvell 88SE9215 chipset is well‑supported across Windows and Linux, a heatsink helps with sustained transfers, and the vendor bundles power cable, SATA cables, and both brackets for easy installation.
Why editors like it: Very good compatibility matrix (Windows, Linux, older OS), heatsinked design for reliability during sustained I/O, and a complete accessory pack that simplifies installation. It strikes a strong balance between reliability and cost.
Caveats: Like other consumer SATA controllers it’s not an IT‑mode SAS HBA — if you need SAS, native 12Gbps lanes, or enterprise features, the LSI option remains superior.
Comparison at a glance
Key differences and when to pick each:
- LSI 9300‑8e (Premium Choice) — Enterprise HBA: 12Gb/s SAS, PCIe 3.0 x8, miniSAS connectors, IT firmware available. Best for NAS, ZFS, and multi‑drive virtualization hosts.
- 6‑Port SATA Expansion (Best Value) — ASM1166 based, six native SATA III ports, PCIe x2/x4 upstream, bundled cables/power splitter. Ideal for medium‑sized home servers and workstation expansion.
- PCIe 4‑Port SATA (Editors Choice) — Marvell 88SE9215, heatsinked, broad OS support, solid accessory kit. Great all‑rounder for desktop users wanting proven compatibility and reliability.
- Budget SATA Expansion (Best Budget Pick) — Marvell 9215 series, PCIe x1 entry‑level board, AHCI boot capable. Good for low‑cost expansions, miners, or lab builds.
Best overall: LSI 9300‑8e for serious storage builds because it provides enterprise SAS bandwidth, IT‑mode compatibility, and robust firmware support — crucial for NAS and ZFS environments.
Best alternatives by scenario:
- Small home server with many drives but limited budget: 6‑Port ASM card (Best Value).
- General desktop expansion with strong OS compatibility: PCIe 4‑Port Marvell card (Editors Choice).
- Ultra‑cheap expansion for non‑critical uses or mining: Budget PCIe x1 4‑port card.
Final recommendation: If you need professional, reliable, multi‑drive storage with drive passthrough and the option to attach many drives via expanders, choose the LSI 9300‑8e (Premium Choice). For most enthusiast/home‑server users who want the best mix of ports and price, the 6‑port ASM card (Best Value) is the smart compromise. Desktop users who prioritize broad OS compatibility and a worry‑free install should pick the 4‑port Marvell card (Editors Choice). If budget is the overriding constraint and you need additional SATA ports for non‑critical tasks, the Budget 4‑port card is a competent fallback.
These recommendations are grounded in chipset and firmware analysis, practical installation testing, and user/field reports. Match the card to your workload (SAS/HBA for enterprise/NAS, multi‑port SATA for drive expansion) and pay attention to cabling and power needs — those often determine whether an install is simple or frustrating.
