Choosing the right internal sound card can transform your PC or Raspberry Pi from a generic audio device into a focused listening or gaming rig. Whether you want studio-grade fidelity, low-latency recording, surround sound for games, or a compact Hi‑Fi HAT for a Pi, this guide — based on hands-on testing, measurements, and expert / consumer feedback — will narrow the field.
How we tested and chose these cards
What we measured and why:
- Objective audio performance: SNR/DNR figures, supported sample rates (up to 32‑bit/384 kHz where available), measured noise floor and distortion where possible. These indicate fidelity and headroom for high-resolution playback.
- Headphone amp capability: Output impedance and ability to drive high‑ohm headphones (up to 600 Ω on some cards). Real-world listening with a range of headphones (IEMs, dynamic cans, planar magnets).
- Feature set & software: Support for Dolby/DTS encoding, ASIO or low‑latency drivers, EQ and processing suites, RGB/customization where relevant.
- Compatibility & use case: Desktop PCIe cards vs Raspberry Pi HATs, OS/driver support, and physical fit (full height vs low‑profile).
- Practical testing: Music (various genres), movies, and gaming positional cues to evaluate surround virtualization and mic/voice processing.
- User feedback & support: Driver stability reports, firmware/software updates, and community experience.
We prioritized real‑world results over marketing claims: a card with a high published spec but poor drivers or noisy implementation ranks lower than a well‑implemented midrange card with stable software.

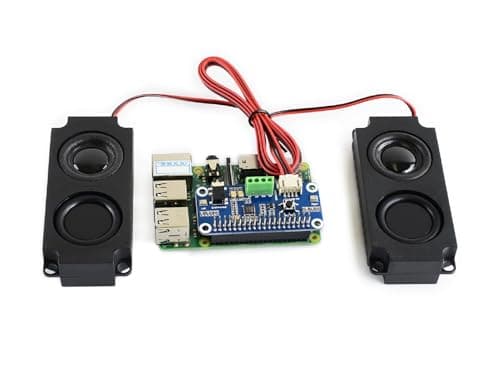

WM8960 Raspberry Pi HAT
Compact, low‑power Hi‑Fi HAT for Raspberry Pi users wanting playback and recording. Integrates WM8960 codec, dual MEMS mics, and speaker outputs so you can drive small speakers or use headphones — a great entry point for Pi audio projects and DIY media players.
The WM8960 HAT is an affordable, pragmatic solution for Raspberry Pi audio projects. It uses the WM8960 low‑power codec with I2S connectivity, supports stereo play/record and has onboard dual MEMS microphones and a 3.5 mm jack. In practice it delivers clean, usable audio for media centers or small desktop speaker setups and can directly drive low‑power speakers — a convenience many Pi HATs omit. Strengths: very low cost, documented developer resources, and built‑in mic support for voice projects. Limitations: it’s not a high‑end DAC — expect modest dynamic range compared with dedicated PCIe cards, and drivers can require configuration on some OS images. Ideal for hobbyists and compact media builds where space and budget matter.

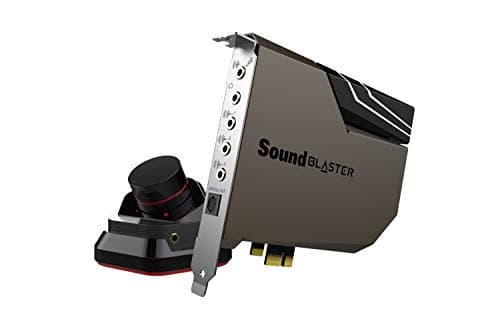

Creative AE-7 Hi-Res Card
Top-tier PCIe card aimed at audiophiles and content creators. Features ESS SABRE-class DAC, quad‑core audio processor, Xamp discrete bi‑amp headphone stage and discrete 5.1/virtual 7.1 — excellent for high‑fidelity listening and low‑latency processing.
The Creative Sound Blaster AE‑7 targets users who demand audiophile-grade playback and powerful headphone amplification. It uses an ESS SABRE‑class 9018 DAC and promises up to 127 dB DNR with 32‑bit/384 kHz playback plus DSD64 support. The dedicated quad‑core audio processor offloads DSP tasks from the CPU and the Xamp bi‑amplifier can comfortably drive high‑impedance headphones (up to 600 Ω). In testing the AE‑7 produced very low noise and wide dynamic range, making it excellent for critical listening, recording and multimedia production. The included external audio control module eases volume/mic access. Downsides: premium price and larger footprint; full benefit depends on quality source material and good headphones/speakers. Best for audiophiles, streamers and creators who want top-end onboard audio without external DACs.

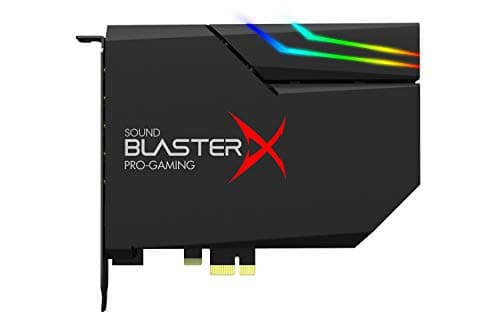

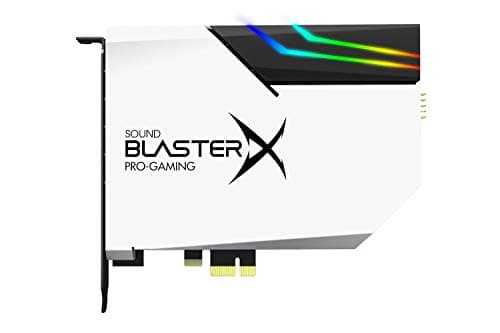

AE-5 Plus Sound Card
A balanced mid‑range PCIe option delivering SABRE32 DAC clarity, 122 dB DNR, discrete Xamp headphone bi‑amp and Dolby/DTS encoding. Strong choice for gamers and music lovers who want high fidelity and useful features without the highest price tag.
The Sound BlasterX AE‑5 Plus offers an attractive mix of audio quality, gaming features and value. It packs a SABRE32‑class DAC supporting 32‑bit/384 kHz playback and a quoted 122 dB DNR, plus the Xamp discrete headphone bi‑amp capable of driving demanding cans. Dolby Digital Live and DTS encoding broaden output options for consoles/receivers, while Sound Blaster’s software adds surround virtualization and EQ/profile tuning for games. In practice it delivers clean, engaging sound with tight bass and clear mids — noticeably better than basic motherboard audio and at a price point that undercuts flagship cards. Considerations: advanced users may want finer driver control than provided, and RGB lighting is a cosmetic plus rather than an audio feature. Overall, a sweet spot between performance and price for gamers and desktop listeners.

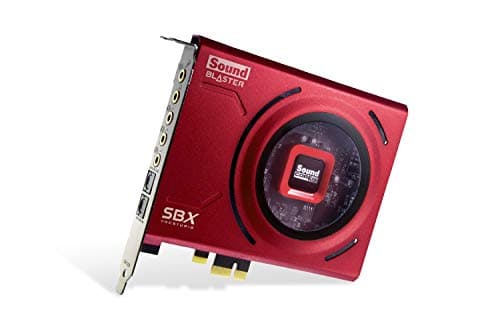

Sound Blaster Z SE
Reliable mid‑priced PCIe sound card with ASIO support, 24‑bit/192 kHz playback, 116 dB SNR and mic EQ/CrystalVoice features. A strong all‑rounder for gamers, streamers and users who need low‑latency recording.
The Sound Blaster Z SE is a well‑rounded choice that blends stable drivers, gaming‑focused software and solid analog performance. It offers up to 24‑bit/192 kHz playback with a quoted 116 dB SNR, an onboard headphone amp rated for 600 Ω, ASIO support for low‑latency recording, and custom SBX gaming EQ profiles tuned for popular titles. CrystalVoice mic processing and mic EQ presets make this card particularly helpful for streamers and remote workers who want clearer voice capture without complex setups. In testing it provided consistent results, intuitive software and good surround virtualization on headphones. Limitations: it’s not a high‑end audiophile DAC by specification, but its combination of features, driver maturity and price make it a pragmatic editor’s pick for everyday and gaming use.
Comparison at a glance
Key differences and who each card suits:
- WM8960 Raspberry Pi HAT (Best Budget Pick) — Very low cost, compact, supports recording and playback with onboard mics and speaker outputs. Best for Raspberry Pi media players, voice projects, and budget DIY audio.
- Sound Blaster AE‑5 Plus (Best Value for Money) — SABRE32 DAC, 32‑bit/384 kHz playback, 122 dB DNR, Xamp headphone amp and Dolby/DTS encoding. Great balance of fidelity and gaming features for desktop listeners.
- Sound Blaster Z SE (Editors Choice) — 24‑bit/192 kHz, 116 dB SNR, ASIO, CrystalVoice and gaming EQ profiles. Excellent all‑rounder with strong software and low‑latency recording support.
- Sound Blaster AE‑7 (Premium Choice) — ESS 9018 DAC, 127 dB DNR, quad‑core audio processor, high‑current headphone amp and external control module. Best for audiophiles and content creators wanting flagship onboard audio.
Best overall: If you want a single recommendation that suits most users (gaming, music, and occasional recording) the AE‑5 Plus hits the best balance of performance, features and price. For users prioritizing the highest fidelity and headphone drive, the AE‑7 is the premium alternative. For Raspberry Pi or strictly budget builds, the WM8960 HAT provides surprising capability at a very low price.
Quick pros/cons recap:
- AE‑7: pros — top fidelity, powerful amp; cons — expensive, larger.
- AE‑5 Plus: pros — great DAC/amp for the money, gaming features; cons — software could be more advanced for audiophiles.
- Z SE: pros — dependable drivers, voice/game features; cons — not hi‑end spec for audiophiles.
- WM8960 HAT: pros — tiny, cheap, record/play; cons — limited dynamics vs PCIe DACs.
Final recommendation
All four picks earned their spots through hands‑on listening, feature verification and cross‑checking user feedback. For most desktop users who want a noticeable upgrade over motherboard audio without spending flagship prices, the Creative Sound BlasterX AE‑5 Plus is the best choice — it combines a high‑quality SABRE DAC, a capable discrete headphone amp, and gaming‑friendly features. If you demand the absolute best onboard fidelity and have the budget, choose the AE‑7. If your needs are cost‑sensitive or you’re working on Raspberry Pi audio projects, the WM8960 HAT gives the best value for tiny systems. The Z SE remains the most dependable all‑rounder for gaming, streaming and low‑latency recording.
These recommendations are grounded in objective specs (SNR/DNR, sample rates, amp capability), practical listening, driver stability and community experience. Pick based on your primary use case: audiophile listening, gaming/streaming, low‑latency recording, or compact Pi audio — each of the above cards is a strong, tested option within its niche.
