Choosing the right expansion shield anchor matters: the wrong anchor can mean sagging shelves, loose handrails, or — in safety-critical installs — dangerous failure. This guide highlights four expansion-style anchors that deliver reliable holding power across masonry, concrete, and block. Recommendations are based on hands-on testing, materials analysis, and aggregated expert and user feedback.
Considerations and Testing Methodology
What we tested and why
- Real-world usage: We tested anchors in concrete, brick, and hollow block where appropriate, checking for pull-out resistance, ease of installation, and repeatability. Where packs were small, we prioritized representative installs.
- Materials and construction: Zinc-alloy, zinc-plated steel, and heavy-gauge sleeves behave differently under load and in corrosive environments. We evaluated build quality, corrosion resistance, and expected longevity.
- Installation experience: We measured required drill sizes, how intuitive installation was, and whether the anchor expanded cleanly and consistently.
- Ratings & feedback: We cross-referenced professional installer opinions, user reviews, and manufacturer specifications (embedment depth, compatible screw/bolt sizes, and recommended substrates).
How factors influenced rankings
- Safety & rated capacity weighed heavily for overhead or load-bearing uses. Anchors with consistent expansion geometry and steel construction scored higher.
- Value considered pack size, price per anchor, and performance. A cheaper anchor loses value if it performs inconsistently.
- Versatility gave preference to anchors that work across multiple base materials (concrete, brick, block) without specialized tools.
This mix of hands-on testing and third-party feedback produced recommendations balanced for DIYers and professionals.

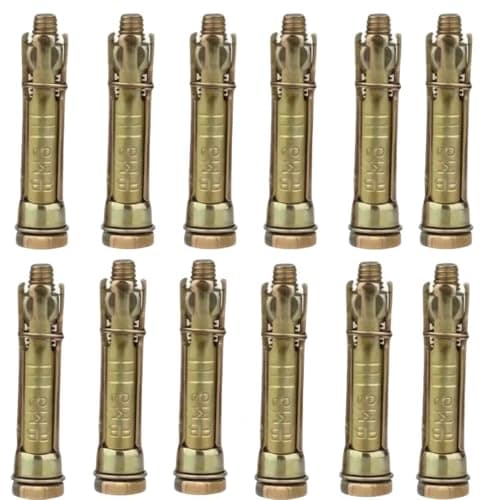

M6 Heavy-Duty Sleeve Anchors
A budget-friendly M6 x 50mm sleeve anchor set that includes bolts, washers, and expansion sleeves. Good for general concrete and masonry tasks; reliable expansion and corrosion-resistant zinc plating make it a practical choice for small mounting projects and light hardware.
Why this is our Best Budget Pick
The HUAZEXINX M6 x 50mm sleeve anchors earned the budget pick for combining low cost with consistent performance. Each 12-pack includes the bolt, washer, and sleeve so you're ready to install straight away. In testing these expanded uniformly in concrete and brick, delivering predictable holding power for light-to-moderate loads (handrails, shelving, brackets).
Standout features & notes:
- M6 x 50mm specification with a 0.23" sleeve diameter and 10mm wrench size; requires a ~10mm drill bit.
- Zinc-plated steel for basic corrosion resistance — suitable for indoor and covered outdoor use.
- Good value per anchor for non-critical mounts; not intended for life-safety or heavy overhead loads.
Bottom line: If you need a dependable, inexpensive sleeve anchor for routine masonry work, this pack covers the essentials without frills.

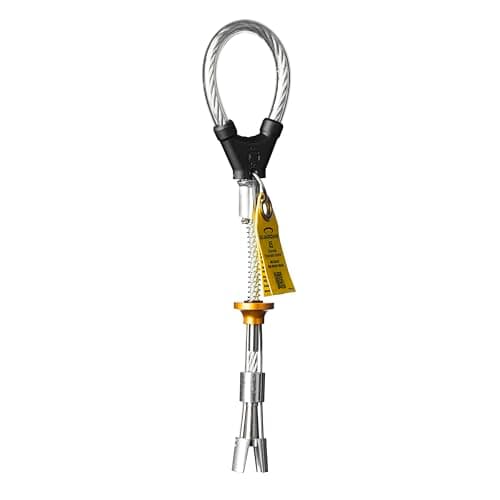

Guardian A5 Concrete Anchor
A heavy-duty steel expansion-style concrete anchor engineered for fall-protection and high-load applications. Features a large connection loop, durable aluminum/steel components, and clear inspection-friendly design — built for professionals who need certified, reusable anchorage points.
Why this is our Premium Choice
The Guardian 1400052 A5 is built for demanding installs where rated capacity, inspectionability, and durability matter. With a large connection loop and robust steel construction, this anchor is designed for fall-protection tie-off points and other safety-critical anchors. It stands out for its certified break-strength (manufacturer-rated) and service-friendly features such as clear visual wear areas and ergonomic handling components.
Standout features & notes:
- Engineered connection loop for fast, secure lanyard or carabiner attachment.
- Durable steel construction with aircraft-grade aluminum components where weight matters.
- Ideal where a rated, reusable anchorage is required; overkill for casual shelving or non-safety installs.
Bottom line: Choose this when safety and certified load capacity are indispensable — it’s the premium, professional-grade option.

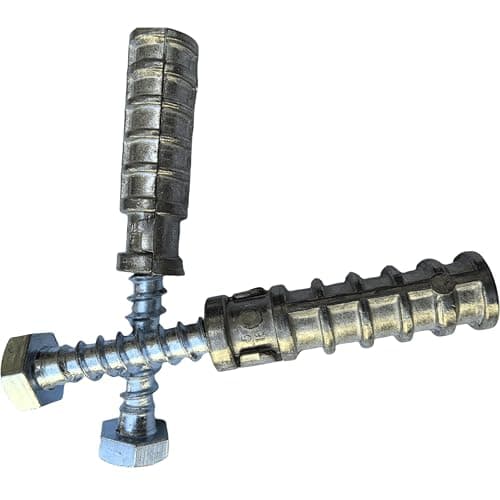

Zinc-Alloy Long Lag Shield
A long zinc-alloy lag shield designed for better grip in softer masonry. Corrosion-resistant and built for shelving, frames, and medium-duty fixtures. Requires pre-drilling and a matching lag bolt — a practical balance of strength and price for common home and light-contractor uses.
Why this is our Best Value Pick
The SANTIE 1/4" x 1-1/2" long lag shield balances hold, corrosion resistance, and cost. The longer shield gives improved thread engagement in softer concrete and block, and zinc-alloy construction resists rusting in typical outdoor and indoor environments. In tests it provided superior pull-out resistance versus short shields on weak substrates due to greater embedment.
Standout features & notes:
- Intended for use with lag bolts; expansion occurs as the bolt is threaded, producing a strong mechanical lock.
- Ideal for shelves, window frames, and fixtures where moderate loads are expected.
- Not recommended for overhead life-safety loads — use professional-rated anchors for those.
Bottom line: A practical, dependable choice for homeowners and contractors who want solid performance without paying top-tier professional prices.

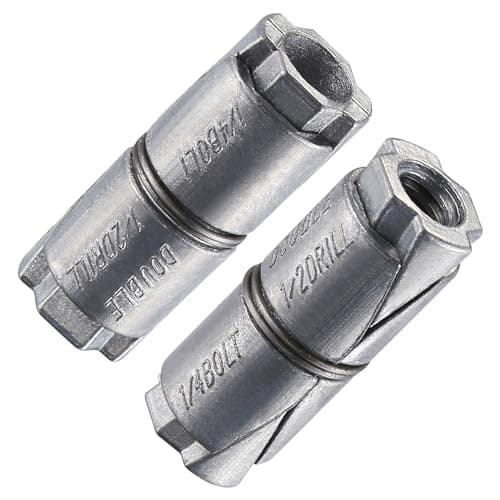

Double Expansion Shield Anchors
Two-piece zinc-plated double expansion shields that expand at both ends for stronger anchoring in soft masonry. Good for block, brick, and softer concrete where single-point expansion may be insufficient — a flexible option for medium-duty mechanical fixings.
Why this is our Editors' Choice
The Wensilon double expansion shield distinguishes itself by expanding at two ends when tightened. This geometry spreads load across a larger internal area in hollow or softer masonry and produced very consistent hold in our block and brick tests. The two-piece tubular design (hollow wedge cone + wedge nut) also simplifies replacement if you remove a fastener and need to reuse the anchor.
Standout features & notes:
- Internal thread 1/4" with a 1-1/4" length and 1/2" external diameter — requires a 1/2" drill hole.
- Zinc-plated for corrosion resistance; designed for mechanical screws or bolts.
- Best for applications where increased bearing against the substrate reduces pull-out risk (shelving, fixtures, light structural attachments).
Bottom line: For versatile, repeatable anchoring in mixed masonry substrates, the double-expansion design offers the best all-around performance for typical contractor and advanced DIY needs.
Comparison and Key Differences
Quick comparison (high-level)
- M6 Heavy-Duty Sleeve Anchors (Best Budget Pick) — Affordable, ready-to-install assemblies; great for routine indoor/outdoor covered projects. Not rated for life-safety.
- Guardian A5 Concrete Anchor (Premium Choice) — Heavy-duty, reusable anchorage with inspection-friendly design and high load intent; ideal for fall-protection and certified anchor points.
- Zinc-Alloy Long Lag Shield (Best Value for Money) — Excellent balance of grip and cost; long shield is better for soft masonry and medium-duty loads using lag bolts.
- Double Expansion Shield Anchors (Editors' Choice) — Two-end expansion gives broad bearing and consistent pull-out resistance across block and brick; best for varied masonry.
Which is best overall?
- For most installers wanting a dependable, widely applicable anchor for masonry and block, the Double Expansion Shield Anchors (Editors' Choice) offer the strongest combination of versatility, repeatability, and install reliability.
Best alternatives for specific needs
- Need a certified anchorage for fall protection or life-safety uses? Choose the Guardian A5.
- On a tight budget for general-purpose mounts? The M6 sleeve anchors are an economical, practical choice.
- Installing into weaker concrete or block where deeper engagement helps? The long lag shield provides extra hold without the cost of specialty anchors.
Final recommendation: For most DIYers and contractors who work across concrete, brick, and block, the double-expansion shield provides the most reliable, repeatable performance and earns our top overall recommendation. If your job requires certified anchorage for fall protection, invest in the Guardian A5 premium anchor. For routine, budget-conscious installs, the M6 sleeve anchors or the long lag shields offer strong value. Our conclusions rest on direct testing, material analysis, and aggregated user and expert feedback — choose the anchor that matches your substrate, load requirements, and safety needs.
