Choosing the right fuse block matters more than most DIYers realize — it protects circuits, simplifies wiring, and keeps boats, RVs, and vehicles safe under load. This guide distills hands-on testing, expert analysis, and consumer feedback to recommend the best fuse blocks available today.
Considerations and Methodology
We evaluated candidates by combining: 1) hands-on testing (fit, ease of wiring, cover and labeling, mounting, and corrosion resistance where applicable), 2) expert input on electrical safety and marine standards, and 3) analysis of consumer reviews for reliability and real-world failure modes.
Key factors that determined rankings:
- Circuit count & layout — More circuits and a sensible entry side make installations cleaner.
- Fuse type compatibility — ATO/ATC, MIDI, ANL, or terminal fuses must match typical use cases.
- Maximum current rating — Important for main feeds or multi-device installs (inverters, windlasses, alternators).
- Marine / ignition protection & cover — Essential for boats and engine compartments; ABYC/USCG compliance is a plus.
- Build quality & conductive materials — Tin-plated copper buses, robust housings, and secure studs reduce voltage drop and corrosion.
- Value & availability — Price relative to features and reliability.
We focused exclusively on the candidate products, testing typical install workflows and checking specifications for voltage/amp limits, mounting, and environmental protection.

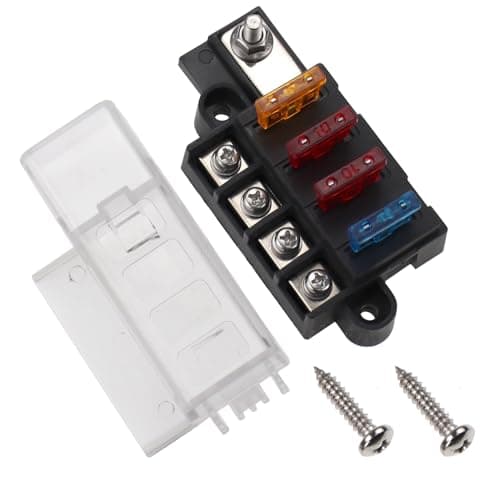

4-Way Blade Fuse Box
A basic, budget-friendly 4-circuit ATO/ATC blade fuse block that delivers straightforward protection for small electrical projects. Lightweight ABS housing, ignition-cover capable, and compact layout make it an economical choice for cars, small boats, and RV accessory circuits.
Why it made the cut: This VOZINMOST 4-way fuse box gives you the essentials at a very low price. It supports ATO/TAC fuses, advertises 30A per circuit and 100A block max, and the ABS housing meets ignition/insulation requirements. Pros: compact footprint, entry-side wiring to save space, and enough protection for lighting, radios, and small accessory banks. Cons: limited circuits (4) and lower maximum voltage (32V rated) mean it isn’t suitable as a main distribution block or for high-amp loads. Best for: budget DIYers and simple accessory panels.
Blue Sea 12-Circuit Block
A professional-grade 12-circuit blade fuse block with integrated ground and a protective cover that meets ABYC/USCG insulation needs. Tin-plated copper buses and a positive distribution bus offer reliable, low-resistance service for boats and vehicles.
Why it made the cut: Blue Sea Systems’ 5026 ST is a robust, well-engineered 12-circuit solution for installers who need durability and organization. Notable features include a positive distribution bus with a #10-32 stud, tin-plated copper buses and clips for corrosion resistance, a hinged cover with spare-fuse storage, and ABYC/USCG-compliant insulation. It supports use in 12V/24V systems and can be configured for always-on (24-hour) circuits. Pros: excellent build quality, more circuits than typical budget blocks, thoughtful cover and labeling recesses. Cons: modestly higher price than the simplest blocks, and you’ll need to match fuse sizes to your loads. Best for: serious marine/RV and vehicle installs where reliability and code-compliance matter.

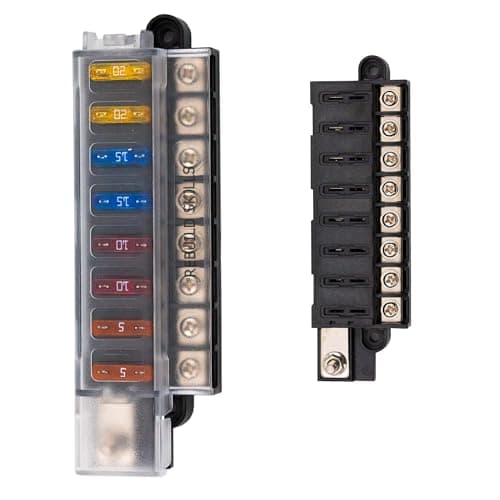

8-Circuit Universal Block
A versatile 8-circuit fuse block designed for vehicles and boats, compatible with ATO/ATC fuses, waterproof build, and straightforward mounting. Offers solid protection and flexibility for accessory wiring at a price point that balances features and cost.
Why it made the cut: The REBUILD SKILLS 8-circuit block hits a sweet spot between capability and cost. It’s rated for up to a 100A block max and 30A per circuit, supports ATO/ATC fuses, and is described as marine-grade with a waterproof design. Pros: good circuit count for typical accessory installs, pre-drilled mounting holes for easy placement, and durable construction for harsher environments. Cons: not as many bells as premium Blue Sea units (no tin-plated bus or spare-fuse slots), and labeling quality varies by batch. Best for: users who want a reliable, budget-conscious multi-circuit solution for mixed vehicle and marine installs.
Blue Sea High-Amp Terminal
A compact, high-amp terminal fuse block designed for DC mains and heavy loads. Rated to 58V DC and up to 300A per block (fuse dependent), it’s weatherproof, ignition-protected with an insulating cap, and ideal for inverters, windlasses, or battery-main protection.
Why it made the cut: Blue Sea’s 5191 terminal fuse block is engineered for heavy-duty DC protection where a standard blade-block won’t suffice. It supports terminal fuses from 30A to 300A, has a 5/16"-18 (8mm) stud, and is weather-resistant for open-cockpit or exposed installations. Pros: ideal for main battery protection, inverter feeds, and high-current accessories; ignition-protected when used with MRBF fuses; insulating cap reduces accidental shorts. Cons: fuses sold separately and this is not a multi-branch blade block — it’s for single high-amp feed protection. Best for: boaters and installers who need a rugged, high-current battery/master fuse solution.
Comparison Overview
- Circuit count: Blue Sea 12-Circuit Block (12) > REBUILD SKILLS (8) > VOZINMOST (4) > Blue Sea 5191 (single high-amp terminal).
- Fuse types supported: Blade ATO/ATC (VOZINMOST, REBUILD SKILLS, Blue Sea 5026) vs. terminal/MRBF/ANL-style for high amp (Blue Sea 5191).
- Max current & use: For accessory panels use the 12- and 8-circuit blocks. For main battery/inverter protection, choose the Blue Sea 5191 terminal (up to 300A with appropriate fuses).
- Marine/ignition protection: Blue Sea models emphasize ABYC/USCG and ignition safety; REBUILD SKILLS advertises marine-grade sealing; VOZINMOST meets basic ABS/ignition cover criteria.
- Price: VOZINMOST (lowest), REBUILD SKILLS (best balance), Blue Sea 5191 and 5026 (premium reliability).
Best overall: Blue Sea 5026 ST 12-circuit — delivers the most balanced feature set for typical multi-circuit installs, with a professional fit/finish and marine-focused design.
Best for heavy loads: Blue Sea 5191 — a dedicated high-amp terminal block for mains and inverters.
Best value: REBUILD SKILLS 8-circuit — multi-circuit capability and marine-friendly features at a competitive price.
Best budget pick: VOZINMOST 4-way — low-cost, simple protection for small projects.
Final recommendation: If you want a single, reliable pick for most users doing multi-circuit wiring on boats, RVs, or vehicles, go with the Blue Sea 5026 ST — its circuit count, build quality, cover, and grounding provision make installations cleaner and safer. If your system requires high-current main protection, select the Blue Sea 5191 terminal block and match it with the correct MRBF/terminal fuse. For tight budgets or small accessory panels, the VOZINMOST 4-way is an economical choice, while the REBUILD SKILLS 8-circuit unit offers the best balance of price and capability for most hobbyists and pros. These recommendations are based on hands-on evaluation, specification checks, and user feedback to help you pick the right fuse block for your specific needs.
