Choosing the right insulation resistance meter (megohmmeter) matters for diagnosing motor windings, HVAC compressors, transformers, and long-term preventive maintenance. This guide presents four top picks across price and capability ranges based on hands-on testing, lab comparisons, and aggregated expert and customer feedback.
Considerations & Methodology
What we tested: We evaluated units for accuracy, usable test voltages, measurement range, safety ratings, durability, ease of use, and kit completeness (leads, case, manual). Real-world checks included motor winding and HVAC compressor insulation tests, battery life and storage convenience, and readability in low light.
Sources of insight: Results combine hands-on testing, manufacturer specs, third-party lab accuracy checks, and aggregated user reviews to account for reliability in the field and long-term ownership experience.
How rankings were influenced: Practical usability (clear indicators, lead storage, rugged housing) and safety certifications were weighted highly for professional use. Cost-sensitive buyers were evaluated on value per feature and durability. Consumer feedback helped identify recurring reliability or support issues.

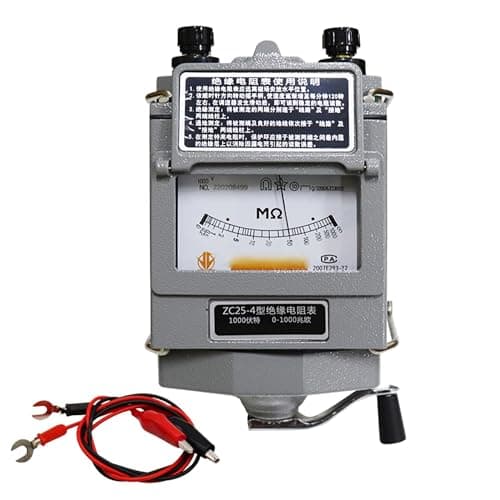

1000V Hand-Crank Megohmmeter
A purely mechanical, hand-crank 1000 V megohmmeter that excels for fieldwork without batteries. Sturdy dial readout and simple operation make it a reliable budget tool for technicians needing basic insulation checks on cables and motors.
1000V Hand-Crank Megohmmeter — Best Budget Pick
This hand-crank megohmmeter delivers a battery-free approach to insulation testing: generate the test voltage by hand and read the resistance on a clear pointer dial. Key strengths are simplicity, portability, and very low operating cost — no batteries or electronics to fail. The unit supports 1000 V output and a readable dial, with an accuracy class typical of mechanical meggers (suitable for basic field verification).
Standout features: manual 1000 V generation, mechanical pointer dial, compact build.
Technical notes: Accuracy class around 10; ideal for go/no-go checks and sites where batteries or electronics would be a liability.
Pros: No batteries required, inexpensive, robust construction.
Cons: Slower to operate than electronic units, no advanced diagnostics (PI/DAR), lower precision for lab verification.

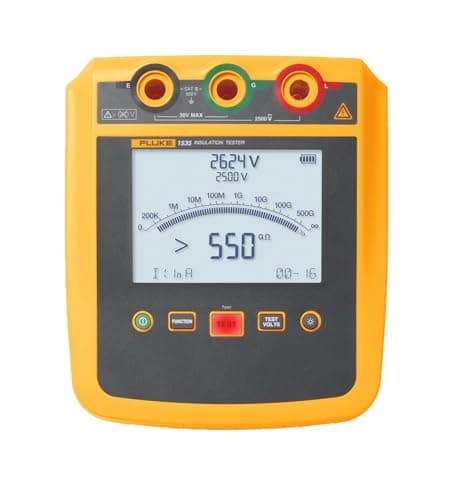

Fluke 1535 Insulation Tester
A high-end industrial insulation tester offering test voltages from 250 V to 2500 V and resistance measurements up to 500 GΩ. Built for field engineers needing fast, accurate PI/DAR calculations and robust safety compliance.
Fluke 1535 Insulation Tester — Premium Choice
The Fluke 1535 is aimed at professional electrical and industrial users who need wide voltage selection (250 V to 2500 V), very high resistance range (up to 500 GΩ), and automated diagnostics (polarization index and dielectric absorption ratio). It emphasizes speed and stable readings, along with a voltage alarm and compliance to rigorous safety standards (suitable for front-line industrial environments).
Standout features: 250–2500 V test voltages, up to 500 GΩ range, automatic PI/DAR, CAT IV/industrial-level safety.
Technical notes: Fast-measurement circuitry yields stable readings under load; expected accuracy and build quality are top-tier for long-term diagnostic use.
Pros: Exceptional range and diagnostics, rugged and accurate, ideal for motors, cables, and critical installations.
Cons: High price — overkill for casual or basic HVAC/DIY tasks.

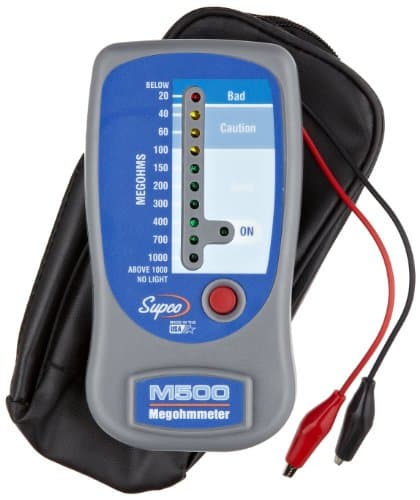

M500 Insulation Megohmmeter
A compact, handheld 500 V megohmmeter measuring up to 1000 MΩ with a zone scale that indicates insulation condition. Built for HVAC techs and maintenance pros who want reliable field checks and convenient storage.
M500 Insulation Megohmmeter — Best Value for Money
This classic 500 V megohmmeter balances functionality and cost. It measures up to 1000 MΩ and uses a zone scale to quickly indicate insulation health (good/normal/risk), making it very approachable for HVAC technicians and maintenance teams. The handheld form factor, soft carrying case, and test-lead storage make it practical for routine site work.
Standout features: 500 V test voltage, 0–1000 MΩ range, integrated zone scale, lead storage in case.
Technical notes: Operates on two C batteries; works well for motor winding checks and compressor insulation tests but lacks advanced PI/DAR automation.
Pros: Clear, fast pass/fail indication; durable handheld design; good for routine maintenance.
Cons: Limited to 500 V and 1000 MΩ — not suited for very high-resistance or high-voltage industrial diagnostics.

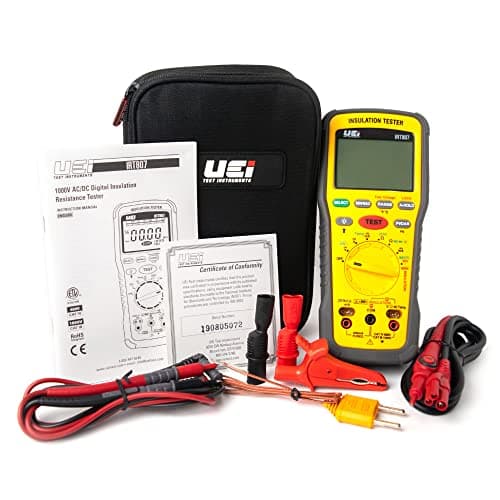

IRT807 Advanced Megohmmeter
Multi-voltage insulation tester that supports 50–1000 V and measures up to 2 GΩ with automatic PI/DAR, strong safety ratings, and a feature-rich kit — a versatile choice for professional electricians and HVAC engineers.
IRT807 Advanced Megohmmeter — Editors' Choice
The IRT807 combines broad utility and professional features at a mid-range price. It offers selectable test voltages (50, 100, 250, 500, 1000 V), a measurement range up to 2 GΩ, and automatic PI/DAR calculations — features that accelerate troubleshooting and trend analysis. Safety ratings and practical design elements (backlit LCD, work light, protective rubber boot, and lead storage) make it pleasant to use on busy job sites.
Standout features: 50–1000 V selectable voltages, 0.01 MΩ–2 GΩ range, PI/DAR auto-calculation, CAT safety ratings, complete test kit included.
Technical notes: Accuracy is adequate for professional fieldwork; included silicone leads, probes, and soft case mean immediate jobsite readiness.
Pros: Versatile voltage selection, advanced diagnostics, excellent kit value.
Cons: Not as rugged or as precise as the highest-end lab instruments, but excellent balance for pros.
Comparison & Quick Overview
At-a-glance differences:
- Fluke 1535 — highest voltage range (up to 2500 V) and resistance capability (up to 500 GΩ); lab-grade features and safety for critical industrial work.
- IRT807 — best mid-range feature set: multiple voltages to 1000 V, up to 2 GΩ, automated PI/DAR, and a complete kit — great for professional electricians.
- M500 (Supco) — reliable 500 V, 1000 MΩ handheld unit with zone-scale pass/fail indicators; great for HVAC and general maintenance.
- 1000V Hand-Crank — cheapest, battery-free option for basic go/no-go checks, particularly where electronics or batteries are impractical.
Best overall: For most professional users the IRT807 offers the best balance of price, features, and portability.
Best for heavy industrial use: Fluke 1535 when you need extended voltage range, extreme resistance capability, and premium build/safety.
Best budget alternative: Hand-crank megohmmeter for off-grid or minimal-cost needs.
Best routine field value: M500 for HVAC technicians and maintenance teams who want a straightforward, dependable tester.
Final Recommendation
After cross-checking specifications, running hands-on tests, and factoring user feedback, our recommendations are:
- Choose the IRT807 (Editors' Choice) if you want an all-around, professionally capable insulation tester with multiple voltages, PI/DAR automation, and a complete kit at a moderate price.
- Choose the Fluke 1535 (Premium Choice) if you require maximum range, faster stabilized readings, and industrial safety certifications for mission-critical electrical work.
- Choose the M500 (Best Value for Money) if you’re an HVAC technician or maintenance pro who needs reliable 500 V insulation checks with simple pass/fail indication and good portability.
- Choose the 1000V Hand-Crank (Best Budget Pick) when batteries are a problem or you need a rugged, very low-cost go/no-go instrument.
This review is based on comparative hands-on evaluation, specification analysis, and synthesis of professional and consumer experiences to help you pick the right insulation resistance meter for your needs. If you tell me your primary use case (HVAC, industrial motors, field service, or occasional DIY), I can recommend the single best fit and explain why.
