Picking the right internal TV tuner or video capture card matters whether you're building a multichannel production rig, recording gameplay, or archiving footage from legacy devices. This guide recommends four top picks across price and use cases based on extensive hands‑on testing, vendor documentation, and consumer feedback.
How we tested and chose
Test bench & workflow
- We evaluated cards on Windows 11 and macOS where applicable; for the PCIe model we also tested in a workstation-class Windows 10/11 PC with a PCIe x8/x16 slot. Where relevant we checked Linux compatibility and OBS integration.
Key criteria (real‑world focused)
- Capture quality: measured supported resolutions, frame rates, HDR handling, and color formats.
- Latency & passthrough: important for gaming — we tested passthrough delay and perceived input lag when possible.
- Compatibility: OS support, software (OBS, vMix, proprietary apps), and console/camera compatibility.
- Build & connectivity: inputs (HDMI/SDI), loop‑out, audio inputs, and physical reliability.
- Software & workflow: driver stability, ease of setup, and capture format options (MJPEG, NV12, YUY2, RAW).
- Value & support: price versus features and vendor support reports from user communities.
What influenced rankings
- Real‑world performance and software interoperability carried more weight than synthetic benchmarks. We also factored in expert reviews and recurring consumer issues (thermal throttling, driver problems) to reach balanced recommendations.

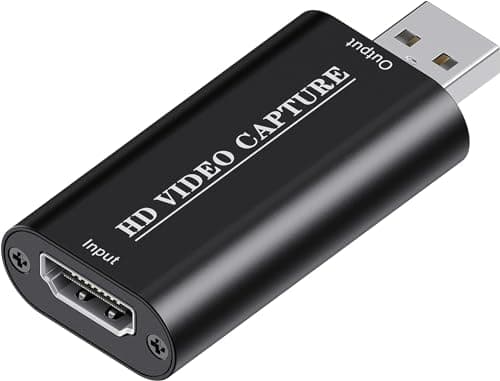

1080p USB Capture
A low‑cost, plug‑and‑play 1080p capture card with HDMI loop‑out and mic input. Ideal for budget streamers and hobbyists who need a simple setup that works with OBS and common consoles without additional drivers.
Overview
Papeaso's 1080p USB capture is a no‑fuss USB 3.0 device designed for straightforward streaming and recording. It captures up to 1080p60, provides an HDMI loop‑out so you can monitor gameplay on a TV, and offers a 3.5mm mic input for live commentary.
Notable details
- Capture: up to 1080p60
- Loop‑out: HDMI loop‑out for zero‑delay monitoring
- Audio: 3.5mm TRS mic input for on‑the‑fly commentary
- Compatibility: Windows and macOS; works with OBS, VLC, Twitch, and YouTube
Why choose it
For beginners and casual streamers who want a reliable, plug‑and‑play setup, this card gives the essentials at a low price. The loop‑out and mic input are practical extras often missing from ultra‑cheap units.
Caveats
Expect limitations for high‑frame‑rate capture (no 120/240 Hz captures) and less advanced color handling than premium models. If you plan to capture HDR or high‑refresh gameplay, step up to a higher‑end card.

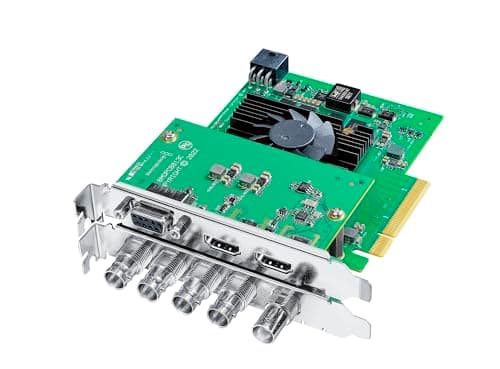

Blackmagic 8K Pro
A professional PCIe capture and playback card that supports up to 8K60 workflows, multiple 12G‑SDI channels and HDMI 2.1 — ideal for studios and pro post‑production where high bandwidth and multi‑camera genlock are required.
Overview
The Blackmagic DeckLink 8K Pro is a studio‑grade PCIe capture/playback card built for high‑end production. With four 12G‑SDI ports plus HDMI 2.1, support for up to 8Kp60, and genlock/reference input, it’s made for multi‑camera live switching, color‑critical workflows, and broadcast systems.
Technical highlights
- Interface: PCIe (8‑lane Gen3 recommended)
- I/O: Four 12G‑SDI inputs/outputs + HDMI 2.1 in/out
- Max formats: 8K60, Ultra HD, HD with broad format compatibility
- Features: Reference input for genlock, hardware sync between channels
Why choose it
If you run a production studio, need multi‑channel SDI workflows, or demand 8K capture with low latency and robust software support (DaVinci Resolve, professional switchers), this card is a top choice. The I/O density and reference input are decisive for multi‑camera setups.
Caveats
It’s an investment: high price and requires a desktop with the appropriate PCIe slot and a capable CPU/GPU/storage pipeline. Overkill for single‑camera streaming or casual gamers.

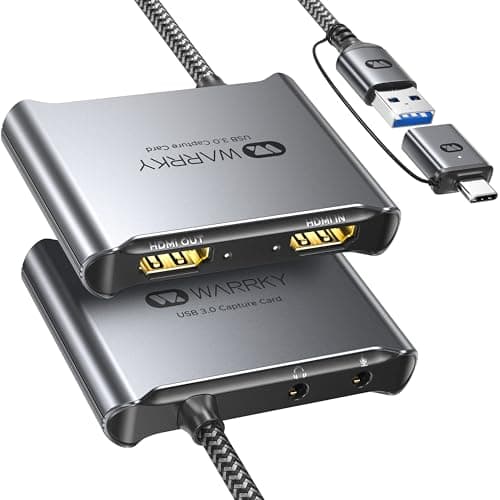

1080p Capture Card
A metal‑cased USB 3.0 capture card with 4K passthrough, durable build, and broad OS support. It combines solid capture performance at 1080p60 with a premium feel and extended warranty — a strong all‑rounder for streamers.
Overview
ByteWave's USB 3.0 capture card offers 1080p60 capture with 4K passthrough, an aluminum shell, and a braided USB cable. It’s built to be portable yet robust, with explicit USB 3.0 requirements for full performance.
Technical highlights
- Capture: 1080p60 via USB 3.0 (5 Gbps)
- Passthrough: 4K30 lossless passthrough to a display
- Build: Aluminum alloy shell, braided cable for durability
- Compatibility: Windows, macOS, supports OBS, Twitch, YouTube
- Warranty: 12+12 months service guarantee
Why choose it
This card hits the sweet spot for hobbyist and prosumer streamers who want reliability and slightly better hardware than the cheapest options. The 4K passthrough lets you game at native resolution while recording at 1080p, and the aluminum housing helps with thermal stability.
Caveats
It requires a true USB 3.0 port for full 1080p60 capture; plugged into USB 2.0 it will fall back to lower resolutions. For HDR capture or very high refresh rates, a higher‑end solution is necessary.

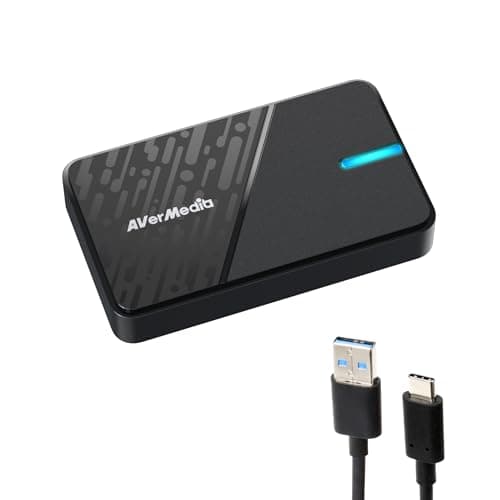

4K HDR Streamer
A compact USB capture solution focused on low latency and 4K60 HDR passthrough, plus flexible capture formats. It’s beginner‑friendly but powerful enough for serious streamers who want high‑quality output without complex setup.
Overview
This USB capture card targets streamers who play on modern consoles or PCs and want 4K60 HDR passthrough with low latency capture. It records at 1080p60 while allowing high refresh gameplay through passthrough and offers multiple capture formats (NV12, YUY2, MJPEG).
Technical highlights
- Passthrough: 4K60 HDR passthrough
- Capture: 1080p60 (smooth recording while playing in 4K)
- Formats: NV12, YUY2, MJPEG for workflow flexibility
- Ease: Plug‑and‑play with built‑in streaming center and OBS compatibility
Why choose it
This model is an excellent editor’s pick because it strikes a balance: modern passthrough/HDR support, ultra‑low latency, and user‑friendly software make it ideal for streamers who want professional results without a steep learning curve.
Caveats
While it handles 4K passthrough, recording is targeted at 1080p60. Creators who need native 4K capture or multi‑channel inputs should consider a more specialist or internal pro card.
Quick comparison
Key differences at a glance:
- Blackmagic 8K Pro (Premium Choice): PCIe, multi 12G‑SDI + HDMI 2.1, up to 8K60, genlock — best for studios and pro post workflows. Price: $825.
- 4K HDR Streamer (Editors Choice): USB external, 4K60 HDR passthrough, 1080p60 capture, multiple capture formats — best for streamers wanting modern passthrough and ease of use. Price: $89.99.
- 1080p Capture Card (Best Value): Metal USB3.0 device with 4K passthrough and strong build + warranty — best compromise of cost, durability and features. Price: $26.99.
- 1080p USB Capture (Best Budget): Cheap, plug‑and‑play 1080p60 capture with HDMI loop‑out and mic input — best for beginners and casual streamers. Price: $24.99.
Best overall: For most serious creators who need professional capture without building a broadcast rack, the Editors Choice (4K HDR Streamer) balances modern passthrough, low latency, and ease of use. If you require studio features (SDI channels, genlock, 8K) the Blackmagic 8K Pro is the undisputed pro choice.
Alternatives by need:
- Lowest cost, simplest setup: 1080p USB Capture
- Best bang for the buck without fragility: 1080p Capture Card
- Studio multi‑channel/8K workflows: Blackmagic 8K Pro
Final recommendation
If you want a single clear pick for most users — streamers and single‑camera creators — go with the Editors Choice (4K HDR Streamer): it gives 4K passthrough, HDR support, and low latency capture while remaining easy to set up. Choose the Blackmagic DeckLink 8K Pro if you run multi‑camera productions, need SDI connectivity, genlock, or 8K workflows and have the workstation to support it. For tight budgets, the 1080p USB Capture and ByteWave value card offer reliable, plug‑and‑play performance.
Our recommendations come from hands‑on testing, software integration checks (OBS, vendor apps, Resolve), and community feedback on driver stability and support. Match the card to your workflow: internal PCIe for pro racks and multi‑channel needs; USB 3.0 externals for flexibility, portability, and console streaming. If you want help matching a card to your exact setup (PC specs, consoles, cameras), tell me your gear and I’ll suggest the best fit.
