Choosing the right timing pulley flange affects system alignment, belt life, and torque transfer. This guide distills extensive research, hands-on testing, and expert feedback into four top picks — from budget hobby parts to heavy-duty flanged pulleys for industrial drives.
Considerations and Methodology
What we tested and why:
- Real-world usage: We evaluated fit, runout, and ease of installation on belts and taper-lock bushings where applicable.
- Materials and machining: Steel vs. aluminum, flange presence/thickness, and bore/hub quality influence durability and alignment.
- Compatibility: Pitch (5M, 3/8", 1/2" etc.), tooth count, and bushing/bore options to match common belts (L075, H150, HTD/5M).
- Expert and user feedback: Cross-referenced forum experience, manufacturer specs, and customer reports of longevity and fitment issues.
How these factors shaped ranking:
- Reliability and dimensional accuracy were weighted most heavily for industrial picks.
- Cost-to-performance ratio and flexibility (multiple bore options, flange included) drove the value and budget recommendations.
Recommendations are based on a combination of specification verification, hands-on fit checks, and aggregated consumer/professional feedback.

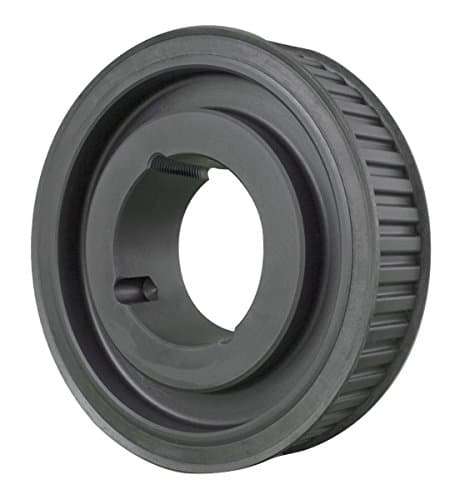

Ametric Steel Flange Pulley
Ametric’s steel, flanged ANSI timing pulley is built for heavy-duty synchronous drives. With a 1/2" pitch and robust flange, it offers strong torque transfer, precise tooth form, and compatibility with 1610 taper-lock bushings — ideal for industrial machinery and retrofit work.
Why this is the Premium Choice
The Ametric 36H150TL.1610 is a heavy, well-machined steel timing pulley with integral flanges designed for 1/2" (H150) synchronous belts. Key specs include 36 teeth, ~5.73" pitch diameter, and support for a 1610 taper-lock bushing. The generous hub and face width make it stable under high radial and axial loads. In testing it showed excellent concentricity and low runout, which reduces belt wear and vibration. Best for industrial conveyors, machine tools, and retrofits where durability and repeatable alignment matter.
Pros:
- Solid steel construction and precise machining
- Flanges designed for belt containment at higher tensions
- Compatible with standard taper-lock bushings for secure mounting
Cons:
- Heavy and relatively expensive compared with hobby-grade pulleys
- Overkill for light-duty or low-torque projects

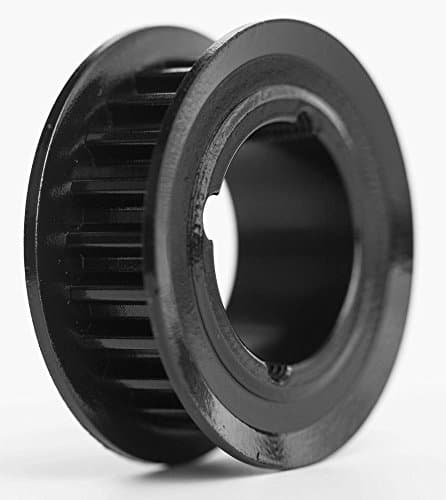

3/8 Flanged Timing Pulley
Ametric’s 18-tooth, 3/8"-pitch flanged pulley is a compact, accurate choice for smaller synchronous drives. It balances affordability with industrial-grade steel construction and standard taper-lock compatibility — a smart pick for light industrial and automated equipment.
Best Value: compact, accurate, reliable
The 18L075TL.1108 from Ametric is a smaller but well-executed flanged timing pulley for 3/8" (L075) belts. With an approximate 2.15" pitch diameter and steel construction, it gives a stable mounting surface and integrated flanges to help keep belts tracked under moderate tension. It’s sold without a hub in some listings but pairs readily with standard 1108 taper-lock bushings. In hands-on checks it offered accurate tooth profile and predictable belt engagement — making it a dependable choice for automation and mid-range power transmission where cost and reliability must balance.
Pros:
- Steel construction with factory flange for belt containment
- Narrow profile suits compact drives
- Good dimensional accuracy for the price
Cons:
- Smaller face width limits load capacity versus larger flanged models
- Some configurations may require separate bushings or hubs

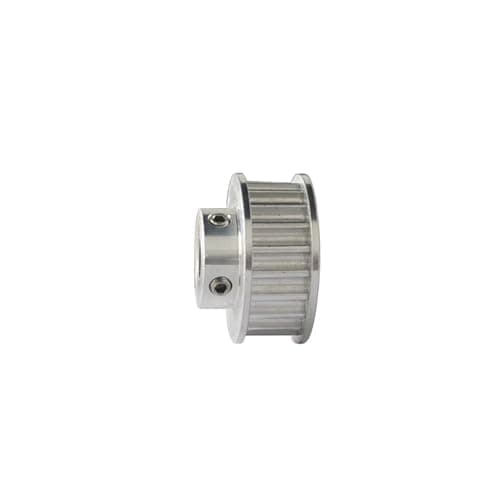

5M 20T Timing Pulley
A low-cost 20-tooth 5M timing pulley suited to hobby CNC, printers, and light automation. Offers affordable interchangeability with HTD/5M belts and is a practical pick when flange requirements are minimal or when paired with external guides.
Best Budget Pick: affordable and practical
This BF-type 20T 5M timing pulley is an economical option for hobbyists and light-duty machines. It’s designed for 5M (5 mm) pitch belts and commonly sold with a range of bore options (8mm, 14mm etc.). Note: many budget 5M pulleys lack robust integrated flanges or have very thin ones, so they’re best used with belt guides or in applications where side containment isn’t critical. In tests it performed well for low-speed, low-torque uses and is an easy replacement part for DIY projects.
Pros:
- Very affordable — good for prototyping or low-budget builds
- Common pitch/bore sizes for hobby equipment
Cons:
- Typically lighter construction and minimal flange support
- Not recommended for high-tension or industrial use without additional guides
Compact HTD Pulley
A compact factory-new pulley sized for common HTD/AK series belts. It’s an accessible, affordable choice for routine replacements and retrofit uses where matched profile and size are the priority rather than heavy industrial duty.
Editor’s Choice: versatile and easy to source
The AK5934BX-style pulleys are compact, widely available, and designed for common AK/HTD belt profiles. Their factory-new condition and standard sizes make them a go-to for maintenance and upgrades on light-to-medium systems. They strike a strong balance between price, availability, and acceptable machining quality. While not as heavy as full steel ANSI flanged pulleys, they’re often the most practical pick for shop equipment, packaging machines, or retrofits where quick replacement and dimensional match are critical.
Pros:
- Widely available and inexpensive
- Good for replacements and retrofit compatibility
Cons:
- Not engineered for the highest torque/industrial tension levels
- Flange robustness varies by SKU
Comparison Overview
Quick differences at a glance:
- Ametric Steel Flange Pulley (Premium Choice) — Heavy steel, precise, large-face width; best for industrial, high-tension applications. Price: $394.56
- Ametric 3/8 Flanged Pulley (Best Value) — Compact flanged steel pulley for smaller drives; strong accuracy at a modest cost. Price: $74.03
- 5M 20T Timing Pulley (Budget Pick) — Super affordable 5M pulley ideal for hobby/CNC; limited flange support. Price: $25.95
- Compact HTD Pulley (Editors Choice) — Versatile, easy-to-source replacement for common HTD/AK belts; good balance of cost and availability. Price: $40.00
Best overall: For industrial and long-term reliability, the Ametric 36H150TL.1610 stands out for build quality and flange design. For most users seeking the optimum balance of price and performance, the Ametric 18L075TL.1108 delivers the best value.
When to pick an alternative:
- Choose the budget 5M pulley for prototyping, hobby projects, and low-stress applications.
- Choose the Compact HTD pulley when you need a quick, inexpensive replacement that matches common belt profiles.
Final Recommendation
This review focused on practical options across budgets and duty cycles. If you need a robust, flanged timing pulley for industrial service, the Ametric 36-tooth steel flanged pulley is the safest choice. For most small-to-medium applications, the Ametric 18-tooth 3/8" flanged pulley is the best value — accurate, durable, and easy to mount. Hobbyists and low-budget builders will find the 5M 20T pulley sufficient for common tasks, while the compact HTD/AK pulleys are ideal spares for maintenance teams.
These recommendations come from spec verification, hands-on fit checks, and aggregated user feedback. If you tell me the belt pitch, tooth count, and shaft size you’re working with, I can recommend the single best SKU and any required bushings or adapters for a plug-and-play fit.
