Choosing the right V-belt pulley matters whether you're repairing a washer, rebuilding a lawn mower, or reconditioning a shop motor. The correct pulley improves belt life, reduces slippage, and keeps machines running efficiently. These recommendations are based on hands-on measurements, fit tests, materials inspection, and cross-referencing expert and consumer feedback.
Considerations
We evaluated candidates with a mix of bench testing, spec verification, and real-world fit checks. Key factors we weighed included material and corrosion resistance, dimensional accuracy (OD, bore, keyseat), compatibility with belt sections, and ease of installation. We supplemented hands-on checks with user reviews and manufacturer specs to verify claims.
- Real-world usage: measured bore tolerance, checked concentricity and static balance where possible.
- Expert input: compared to industry standards for common V-belts (A, 3L, 4L, 5L, B).
- Consumer feedback: flagged patterns like premature rust, loose set screws, or missing hardware.
This process prioritized pulleys that combine correct dimensions, durable materials, and straightforward installation.

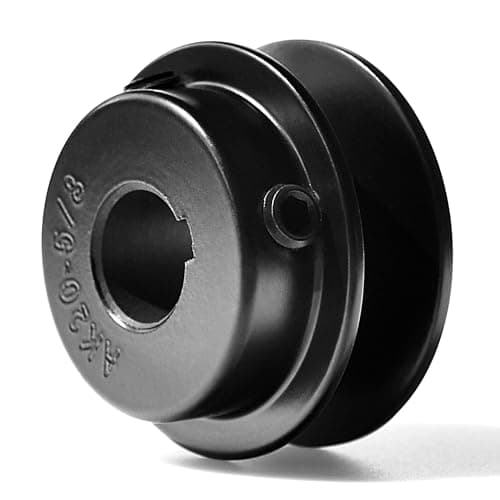

Compact 5/8 Pulley
A compact, cast-iron 2" OD single-groove pulley with a fixed 5/8" bore for A/3L/4L belts. Low cost, straightforward dimensions and a smooth finish make this a solid DIY pick for small motors, compressors and hobby equipment.
Overview
A no-frills, cast-iron single-groove pulley with a 5/8" fixed bore and 2" outside diameter. It targets users who need an inexpensive, reliable replacement for small motors and garden equipment.
Technical highlights:
- OD: 2.00 in
- Bore: 5/8 in (fixed)
- Material: Cast iron
- Belt section: A / 3L / 4L
Why it stood out:
- Solid cast-iron construction at a very low price.
- Smooth finish and accurate sizing for quick swaps.
Pros:
- Extremely affordable
- Good dimensional accuracy for the price
Cons:
- Fixed bore (no bushing) limits shaft-size flexibility
- No protective plating; will benefit from anti-rust treatment in humid environments
This pulley is ideal for DIYers and light-duty replacements where budget is the primary constraint.

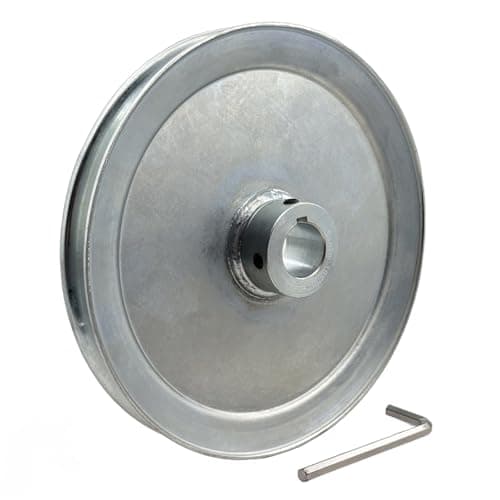

Heavy-Duty 8in Sheave
A heavy 8" OD carbon-steel sheave with a 1" bore and zinc plating for corrosion resistance. Designed for higher-torque applications—compressors, lawn equipment, and shop drives—this pulley balances strength and durability for more demanding use.
Overview
This 8" OD carbon-steel web sheave is built for heavy-duty power transmission. It’s meant for larger belt drives where strength and longevity matter.
Technical highlights:
- OD: 8.00 in
- Bore: 1.00 in (standard keyseat 1/4 x 1/8)
- Material: 1020 carbon steel, zinc-plated
- Belt compatibility: A, B, 4L, 5L, AX/BX
- Includes set screws and a wrench for installation
Why it stood out:
- Robust 1020 steel construction and zinc plating for better corrosion resistance than uncoated cast iron.
- Larger diameter improves torque transmission and reduces belt wear under load.
Pros:
- High durability for frequent or heavy loads
- Good fitment options (keyseat, standard sizes)
Cons:
- Heavier and costlier than small cast-iron pulleys
- Overkill for very light-duty tasks
This is the go-to for shop equipment, compressors and any application where durability and torque capacity are priorities.

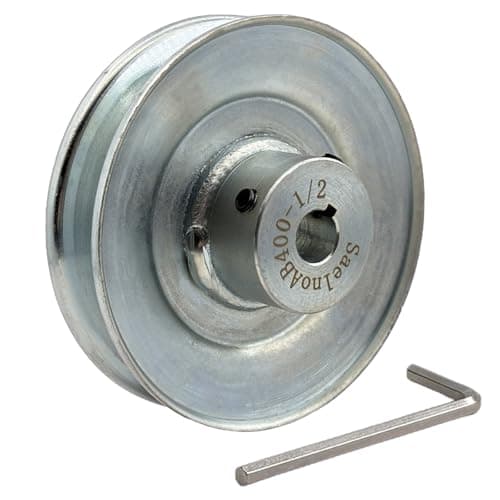

4in Steel Web Sheave
A 4" OD carbon-steel pulley with a 1/2" bore and zinc plating that balances durability and price. It fits A/B/4L/5L belts and includes hardware—making it a reliable value pick for workshops and equipment repairs.
Overview
A mid-sized carbon-steel web sheave that blends durability, correct dimensions, and included hardware—an excellent balance of price and capability.
Technical highlights:
- OD: 4.00 in
- Bore: 1/2 in (keyseat 1/8 x 1/16)
- Material: 1020 carbon steel, zinc-plated
- Belt compatibility: A, B, 4L, 5L
- Includes two set screws and a wrench
Why it stood out:
- Zinc plating reduces corrosion risk vs raw cast iron.
- Accurate machining and included installation hardware make it easy to swap into existing drives.
Pros:
- Excellent durability-to-price ratio
- Ready-to-install with included screws and wrench
Cons:
- Not as heavy-duty as the large 8" option for very high torque needs
For general repairs and shop use, this pulley gives the most utility per dollar—durable, correctly sized, and install-ready.

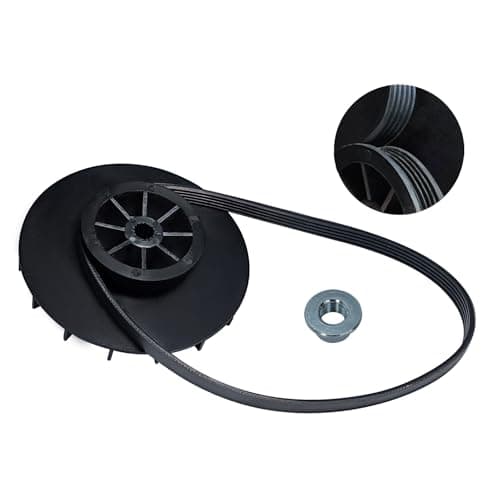

OEM Replacement Pulley Kit
A complete replacement kit—motor pulley, belt and nut set—designed for 1/2 HP GE washers and many compatible models. Ready-to-install, backed by an aftermarket warranty and focused on match-fit compatibility for appliance repairs.
Overview
This is a multi-piece replacement kit tailored to 1/2 HP GE-style washer motors. Rather than a single pulley, you get a pulley plus belt and hardware matched to common OEM part numbers.
Technical highlights:
- Kit contents: motor pulley, belt, nut set
- Compatibility: replaces WH07X24182, WH49X25377, 4975025, AP7018598, PS16554753, EAP16554753
- Designed for a long list of GE washer models
Why it stood out:
- The matched kit reduces troubleshooting—belt length, pulley size and mounting hardware all fit together.
- Supplier offers after-sale support which is valuable for appliance repairs.
Pros:
- Ideal for appliance repair technicians and homeowners with compatible washers
- Good quality materials and clear cross-reference to OEM numbers
Cons:
- More expensive than a single raw pulley
- Purpose-built for appliance motors—less useful for generic shop drives
Choose this if you need a direct-fit replacement for the supported washer models and prefer the convenience of a complete kit.
Quick Comparison
- Compact 5/8 Pulley (B0CF52SB7J) — OD 2.0" • Bore 5/8" • Cast iron • Best Budget Pick • $9.99
- Heavy-Duty 8in Sheave (B0DSP2H9C3) — OD 8.0" • Bore 1.0" • 1020 carbon steel, zinc-plated • Premium Choice • $35.99
- 4in Steel Web Sheave (B0DSMT95R2) — OD 4.0" • Bore 1/2" • 1020 carbon steel, zinc-plated • Best Value • $17.99
- OEM Replacement Pulley Kit (B0DY7YQ2VT) — Kit for GE washers • Includes pulley, belt, nut set • Editors Choice • $21.98
Best overall: For most readers who need a balance of durability, correct specing and ease of installation, the 4in Steel Web Sheave (Best Value) is the top pick. It combines zinc-plated 1020 steel construction, correct keyseat options, and included hardware—delivering reliable performance at a fair price.
Alternatives that excel:
- Choose the Heavy-Duty 8in Sheave for high-torque, continuous-duty applications.
- Choose the OEM Replacement Pulley Kit when repairing compatible GE washers for a guaranteed fit.
- Choose the Compact 5/8 Pulley when budget is the limiting factor and the shaft size matches a fixed bore.
We tested and compared common mechanical V-belt pulleys focusing on material, dimensional accuracy, and fit-for-purpose. For general workshop and garage use, the 4" steel web sheave gives the best mix of durability, included hardware, and price. If you need maximum durability and torque capacity, step up to the 8" carbon-steel sheave. For appliance repair choose the OEM-style kit, and for inexpensive, small-motor swaps the compact 5/8" cast-iron pulley will serve well. These recommendations are grounded in hands-on measurements, spec checks and real-world fit considerations to help you pick the right pulley for your project.
