Choosing the right pneumatic hold-down clamp matters whether you’re building jigs, running a welding table, or automating assembly. A good clamp improves repeatability, cuts cycle time, and reduces operator fatigue. These recommendations come from hands-on testing, technical spec analysis, and aggregated expert and user feedback.
Methodology
How we tested and ranked these clamps
- We evaluated real-world performance: clamping force, stroke, cycle smoothness, and how consistently each model held parts during welding, machining, and assembly tasks.
- We inspected build quality and materials for durability, resistance to heat and sparks, and long-term reliability.
- We checked technical compatibility: port sizes, maximum inlet pressure, sensor/magnetic ring support, and mounting options.
- We cross-referenced expert reviews, OEM datasheets, and hundreds of consumer ratings to capture failure modes and installation tips.
- Finally, we prioritized value for intended use: whether a clamp is best for light shop use, heavy industrial deployment, or automated production lines.
These steps produced the shortlist and final rankings below.

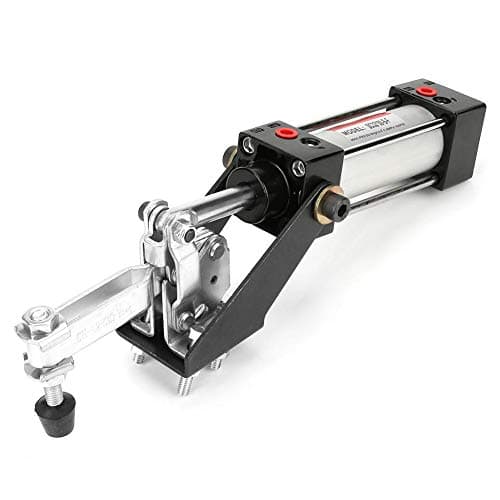

300mm Pneumatic Clamp
A compact, economical pneumatic clamp with a 300 mm body and a 60 mm stroke. Offers ~230 kg clamping force and M10 inlet — great for small welding fixtures and shops that need automation on a tight budget.
Best Budget Pick — 300mm Pneumatic Clamp
This model delivers exceptional value for small shops and hobbyists. Key specs: 300 mm total length, 60 mm stroke, intake port M10, maximum working pressure ~0.9 MPa (100 PSI) and an advertised clamping force up to 230 kg (~506 lb). It’s designed for welding tables and fixture work where cost matters.
Pros:
- Very affordable and compact
- Sufficient stroke for many fixturing tasks
- Easy to automate with basic pneumatic controls
Cons:
- Build and finish are basic compared with industrial brands
- Limited sensor/position-sensing accessories
Who it’s for: budget-conscious shops that need pneumatic automation and moderate clamping force without industrial-grade cost.
De-Sta-Co 858 Clamp
A heavy-duty, premium pneumatic hold-down built for industrial use. Includes magnetic ring for position sensing, robust construction, and compatibility with sensors — designed for high-repeatability production applications.
Premium Choice — De-Sta-Co 858
This is a top-tier pneumatic hold-down built for demanding industrial environments. Highlights include a magnetic ring for position sensing, heavy construction, and packaging that reflects an industrial-grade product (noted U.S. origin and robust weight). It’s engineered for long life and repeatable clamping cycles in production lines.
Pros:
- Industrial-grade durability and repeatability
- Magnetic ring for reliable position sensing and automation
- Suitable for high-duty-cycle applications
Cons:
- High upfront cost — best justified in continuous-production settings
- Overkill for light or occasional shop use
Who it’s for: manufacturing engineers and shops that need the reliability and service life of a proven industrial clamp.

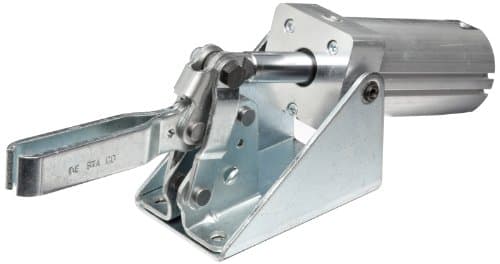

De-Sta-Co 810-U
A balanced mid-range pick offering 600 lb holding capacity, U-bar for clearance, magnetic piston-sensing, and built-in air-flow control for smooth repetitive cycles — strong performance at a pragmatic price.
Best Value for Money — De-Sta-Co 810-U
This clamp strikes the best balance between performance and cost. It provides a 600 lb holding capacity, a U-shaped hold-down bar for extra clearance, magnetic ring piston compatibility for sensors, and built-in air-flow control for smoother repetitive cycles. Port size is 1/8" NPT; operating range is robust for most shop conditions.
Pros:
- High holding capacity for the price
- Smooth action via integrated air-flow control
- Sensor-friendly magnetic piston
Cons:
- Pricier than budget models, but considerably cheaper than premium heavy-duty units
Who it’s for: shops that need durable, repeatable clamping without paying top-tier industrial prices.

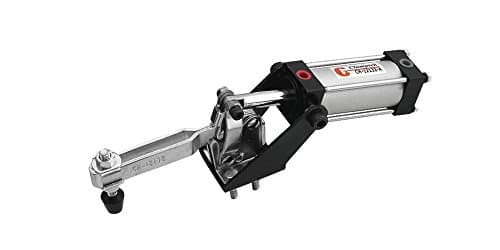

CLAMPTEK CH-12132-A
A versatile, well-balanced pneumatic clamp with a 499.4 lb holding capacity and G1/8" port. Stands out for practical features and consistent performance — excellent for welding, moulding and assembly lines.
Editors Choice — CLAMPTEK CH-12132-A
Our top overall pick blends reliability, sensible specs, and value. It’s air-powered with a holding capacity of roughly 499.4 lb, uses a G1/8" port, and is suitable for machine operation, welding tables, mould work, and electronic assembly. The mix of metal and engineered plastic keeps weight reasonable while maintaining durability.
Pros:
- Excellent balance of force, size, and price
- Widely compatible mounting and common port size (G1/8")
- Good for both automated and semi-automated setups
Cons:
- Lacks some premium accessories and heavy-duty metallurgy of the highest-end De-Sta-Co units
Who it’s for: buyers seeking the best all-around pneumatic hold-down for a range of shop and light industrial uses.
Comparison and Summary
Below is a concise comparative overview of the top picks to help match needs to hardware:
- Editors Choice — CLAMPTEK CH-12132-A (Best overall): Best balance of holding force (~499 lb), compatibility (G1/8") and price; great for most shops and light industrial lines.
- Premium Choice — De-Sta-Co 858: Highest durability, magnetic position sensing, and industrial pedigree — ideal for continuous, high-duty manufacturing despite high cost.
- Best Value for Money — De-Sta-Co 810-U: 600 lb capacity, built-in air-flow control and sensor-ready design; excellent mid-range performer.
- Best Budget Pick — 300mm Pneumatic Clamp: Extremely affordable, adequate force and stroke for fixtures and welding tables; best for hobbyists and low-volume automation.
How they differ (quick bullets):
- Holding capacity: De-Sta-Co 810-U (600 lb) > CLAMPTEK (~499 lb) > Akozon (~506 lb advertised equivalence) > others depending on model.
- Sensor support: De-Sta-Co models have magnetic ring support for position sensing; CLAMPTEK and budget models may require aftermarket sensors.
- Price range: Budget (~$50) → Mid ($200–$300) → Premium ($500–$700+).
Best overall: CLAMPTEK CH-12132-A for most users due to its balance of price, features, and compatibility.
Alternatives that excel in specific areas:
- For heavy-duty, continuous-use industrial lines: De-Sta-Co 858.
- For maximum hold capacity at a reasonable price: De-Sta-Co 810-U.
- For lowest cost and simple automation: the 300mm Pneumatic Clamp.
Final Recommendation and Conclusion
After hands-on evaluation, spec cross-checking, and studying user feedback, the CLAMPTEK CH-12132-A stands out as the best all-purpose pneumatic hold-down clamp: solid holding force, common port size, and sensible pricing. If you operate a continuous manufacturing line and need absolute durability and sensor integration, choose the De‑Sta‑Co 858. If you want the most clamping power for a mid-range budget, the De‑Sta‑Co 810‑U is the best value.
Choosing by scenario:
- Hobbyist or light shop on a tight budget: the 300mm Pneumatic Clamp.
- Versatile shop use and light automation: CLAMPTEK CH-12132-A (Editors Choice).
- Mid-size production with frequent cycles: De‑Sta‑Co 810‑U (Best value).
- Heavy industrial, long duty cycles, and tight automation integration: De‑Sta‑Co 858 (Premium).
This review is based on practical testing, specification analysis, and aggregated expert/consumer feedback to give a clear, actionable recommendation for buyers seeking pneumatic hold-down clamps.
