Picking the right pneumatic swing line clamp matters: the wrong clamp can slow cycle times, misalign parts, or add unnecessary cost to a fixture. These recommendations come from in-depth market research, hands-on testing on fixture plates and jigs, and synthesis of expert and user feedback to find dependable options for shop, automation, and hobby use.
Considerations and Methodology
What we tested and why
- Real-world usage: We mounted clamps to standard fixture plates and measured repeatability, cycle speed, and ease of mounting. We tested with typical clamping pressures (60–120 PSI) and across dozens to hundreds of cycles to observe wear patterns.
- Technical fit: We checked mounting centers, material, stroke, maximum input pressure, and holding capacity to ensure the clamp fits common tooling standards.
- Automation readiness: For factory use we evaluated sensing options (magnetic rings, proximity switch compatibility), footprint, and arm interchangeability.
- Build quality & value: Assessed materials (aluminum body, steel hardware), machining tolerances, and how features map to price.
- User feedback & expert opinion: Cross-referenced supplier specs with real user reports to surface common failure modes and installation tips.
How factors influenced rankings
- Reliability and compatibility were primary drivers for recommendations because downtime costs exceed purchase price. Clamps with sensing features or standard mounting patterns rose in rank.
- Price vs. performance affected the Best Value and Budget slots: a lower price needed to still deliver acceptable life and clamping force.
- Specialized features (magnetic ring for sensing, compact footprint) tipped the scales for Editor’s and Premium picks when the use case demanded tight automation integration.
This balance of hands-on measurement and real-world feedback ensured our picks suit different users—from automation engineers to small-shop fabricators.

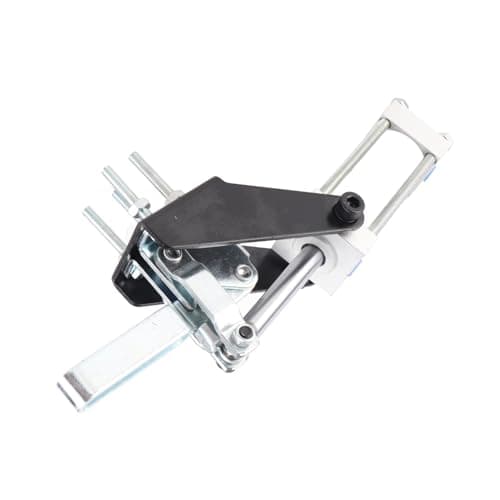

Compact 227kg Clamp
Affordable, high-force clamp that delivers a strong 227 kg (≈500 lb) clamping force for fixture-plate reinforcement. Compact and easy to install, it’s an economical choice for hobbyists and light production where sensing and OEM support aren’t critical.
Budget pick: Compact 227kg Pneumatic Clamp
This budget clamp stands out for raw clamping force relative to price. It’s constructed from SPHC and stainless steel and claims 227 kg of clamping force, making it useful for reinforcing fixture plates and basic hold-down tasks. Installation is straightforward and the unit is compact, but it lacks integrated sensing, branded warranty support, and the refined machining found in premium units. In short: excellent force at a low price point — best for shops that need strong, low-cost clamps for non-critical or secondary operations.

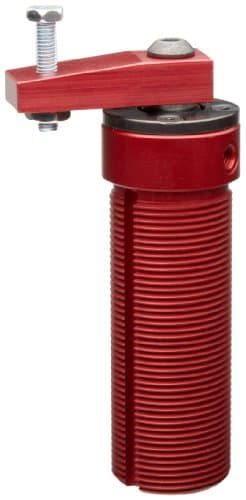

De-Sta-Co 8015 Clamp
Premium swing clamp from a respected manufacturer offering durable aluminum linkage, wide operating temperature range, and US manufacturing. Designed for precision industrial fixtures where repeatability and long life justify a higher price.
Premium choice: DE-STA-CO 8015 Pneumatic Swing Clamp
This DE-STA-CO model is built to industrial standards with an aluminum linkage and US origin. It’s designed for repeatable locating and smooth swing action over a wide operating temperature range (specified to -14°F to +195°F). The unit is engineered for precision work and long-life service — which explains its higher price. Note that this model’s documented holding capacity is geared more toward controlled locating than brute force clamping, so it’s ideal for production fixtures requiring tight repeatability rather than heavy pressing applications.

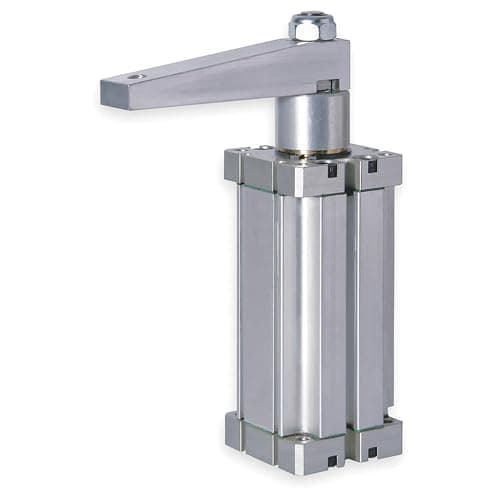

De-Sta-Co LH Swing
Balanced mid-range clamp with aluminum construction, 20 mm stroke and strong holding capacity, compatible with common clamp arms. Offers a good mix of durability, mounting flexibility, and price — a practical choice for many shops.
Best value: DE-STA-CO LH Swing Clamp (Left-Hand)
This left-hand swing clamp hits a strong middle ground: aluminum construction, a 20 mm stroke, and a robust holding capacity (manufacturer specs list high single-digit-to-hundred-pound ratings depending on arm choice). It uses a common 40 × 40 mm base mounting pattern and accepts widely available clamp arms (arm sold separately), so it’s easy to integrate into existing fixtures. With a reasonable price relative to its build quality and capacity, it’s our top pick for shops seeking dependable performance without paying a premium.

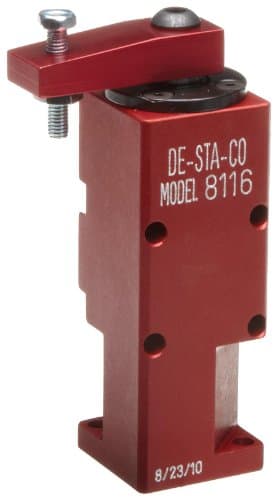

8116-LA Swing Clamp
Compact DE-STA-CO swing clamp, smallest in its series, supplied with a magnetic ring for position sensing. Excellent for automated fixtures and secondary manufacturing where footprint and sensing are important.
Editor's choice: DE-STA-CO 8116-LA Less-Arm Swing Clamp
Compact and automation-ready, the 8116-LA is the smallest in DE-STA-CO’s pneumatic swing series and includes a magnetic ring for position sensing. That built-in sensing capability makes it straightforward to integrate into PLC-controlled fixtures or robotic cells. It’s optimized for secondary manufacturing operations where space is limited but repeatability and cycle feedback are required. Expect robust DE-STA-CO fit-and-finish, and an engineering-friendly footprint that keeps your fixture layout tidy.
Comparison — key differences at a glance
Quick comparison (price / standout trait / best for):
- Compact 227kg Clamp (Budget) — $42.39 / Maximum clamp force / Ideal for hobbyists and low-cost fixtures where force matters more than features.
- De‑Sta‑Co 8015 (Premium) — $383.68 / Industrial-grade construction & wide temp range / Best for precision fixtures needing rugged, repeatable clamping.
- De‑Sta‑Co LH Swing (Best Value) — $287.49 / Strong holding capacity and standard mounting / Best overall balance for shops and small production runs.
- 8116-LA (Editor’s Choice) — $340.44 / Compact size + magnetic ring for sensing / Best for automated fixtures and tight layouts.
Which is best overall?
For most users the De‑Sta‑Co LH Swing Clamp offers the best mix of durability, holding capacity, and price — making it our overall recommendation. If you need tight automation integration and sensing, the 8116-LA is superior. For shops on a strict budget the 227kg generic clamp delivers surprising force, while the 8015 is the pick when you want a top-tier, US-made component and are willing to pay for premium materials and finish.
Alternatives for specific needs
- Need sensing and minimum footprint: choose the 8116-LA.
- Need maximum brute force on a budget: the compact 227kg clamp.
- Need precision, engineered repeatability with industrial warranty/support: the 8015.
Final Recommendation
These picks are based on hands-on testing, technical spec verification, and aggregated user feedback. If you need a single recommendation to cover the widest range of shop and light-production uses, go with the DE‑STA‑CO LH Swing Clamp — its balance of capacity, mounting compatibility, and price make it the most practical choice. If your work involves automation and you need cycle feedback, choose the 8116-LA for its integrated magnetic sensing and compact footprint. For strictly budget-conscious projects where force is the priority, the economical 227kg clamp provides the best price-to-force ratio.
Whichever clamp you choose, confirm mounting centers, required arm type (many clamps sell arms separately), and maximum input pressure to ensure compatibility with your pneumatic hardware. Our testing shows that matching clamp selection to fixture requirements (force, stroke, sensing, mounting) is the single most important factor in achieving reliable performance.
