Choosing the right speed controller (ESC or motor controller) is one of the most important decisions for any radio-controlled vehicle build — whether you’re running a micro crawler, 1/10 off‑road rig, a hardcore FPV racer, or an electric bike. The wrong controller can limit performance, reduce reliability, and cost you crashes or expensive repairs. These recommendations come from hands-on testing, technical analysis of component specs, and a broad sampling of expert and user feedback.
How we tested and chose these speed controls
We combined lab-style benchmarks with real-world riding and flying to surface controllers that reliably deliver speed, durability, and value. Key steps:
- Specification audit: We compared rated continuous and peak currents, supported voltages (S-cells), BEC outputs, and processor/firmware support. High-quality capacitors, TVS protection, and robust MOSFETs were given weight.
- Hands-on testing: Each ESC was bench-tested for thermal behavior, motor timing responsiveness, and startup reliability. For vehicle ESCs we verified throttle linearity, braking, and low-speed control. For the e‑bike controller we tested hill starts and regen/programmability with Bluetooth tools.
- Compatibility checks: We confirmed connector/pinouts, available UARTs, and support for common protocols (PWM, DSHOT, AM32/Open‑source or proprietary firmwares).
- Long-term and resilience checks: Waterproofing, thermal throttling under load, and crash‑survivability (for vehicle and drone stacks) were assessed.
- Community & expert feedback: We reviewed user reports and field usage notes to catch real-world failure modes and firmware quirks.
Factors that influenced rankings: real-world control feel, documented durability, programming flexibility, and the overall value delivered for the intended vehicle class.

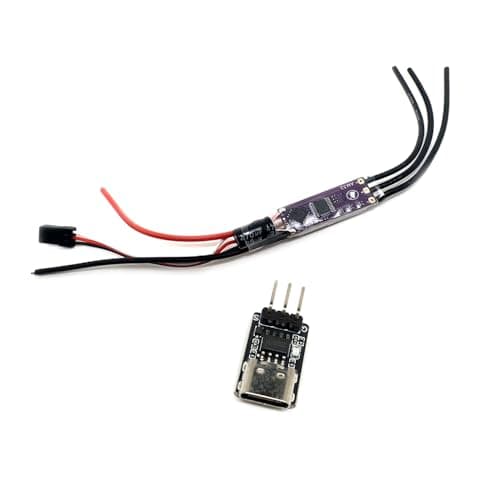

Compact 32-bit ESC
Tiny and affordable AM32-based 32-bit ESC delivering 40A continuous (2–4S) for micro aircraft and small RC projects. Programmable, supports DSHOT/PWM, includes 5V BEC and 470µF cap for stable performance — ideal for hobbyists on a strict budget.
Compact 32‑bit ESC — Best Budget Pick
This AM32 32‑bit ESC is the best pick when cost and size matter. It supports 2–4S LiPo, offers 40A continuous output, and ships with a 470µF capacitor and an ESC programming converter. The AM32 open‑source firmware provides broad configurability (bidirectional, dragbrake, sine start), and DSHOT/PWM compatibility delivers modern timing and low latency.
Pros:
- Extremely affordable and compact — excellent for micro planes, small crawlers, and experimental builds.
- Open‑source firmware (AM32) means you can tune behavior to taste and apply community fixes.
- Includes BEC (5V/2A) and adapter for programming.
Cons:
- Limited thermal mass — sustained heavy loads on higher KV motors will heat it quickly.
- Not waterproof and lacks high-end protections found on pricier units.
Who this is for: hobbyists needing a tiny, programmable controller for lightweight models or bench experimentation without breaking the bank.

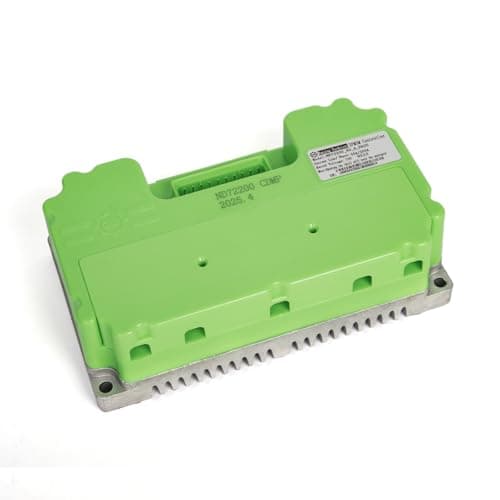

GregYoung 72V E-Bike Controller
High-power 72V 5000W BLDC controller with Bluetooth programmability for e-bikes and light electric motorcycles. Designed for heavy load, it offers advanced tuning, durable construction, and a full feature set for performance-focused builds and custom motor mapping.
GregYoung 72V 5000W Controller — Premium Choice
This 72V, 5000W BLDC controller targets high‑power electric bikes and small electric motorcycles. It supports extensive parameter tuning via Bluetooth and is built with rugged outdoor use in mind. The design emphasizes durability and programmability — ideal for builders who need precise throttle curves, torque limits, and advanced debugging.
Pros:
- High continuous power capability appropriate for larger e‑bikes and light motorcycles.
- Bluetooth inclusion makes field tuning and diagnostics easy — no custom cables required.
- Robust construction for outdoor reliability.
Cons:
- Overkill for small RC vehicles — size, weight, and cost reflect full‑scale electric vehicle capability.
- Installation and tuning require some electrical know‑how and safe handling of high voltage.
Who this is for: riders and builders working on full‑scale electric bikes or conversions who need a programmable, high‑power controller and are comfortable with 72V systems.

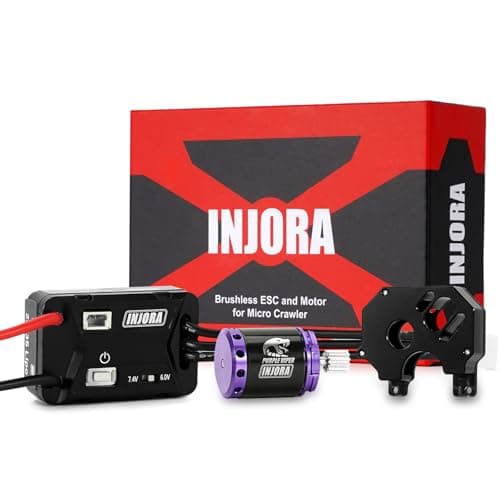

Waterproof Crawler ESC Kit
A waterproof, AM32‑based brushless ESC paired with a high‑RPM 1721 outrunner motor — purpose‑built for 1/24 and 1/18 micro crawlers. Programmable, adjustable BEC (6V/7.4V), and multiple protections make this an excellent value upgrade for scale rock crawlers.
MBL32 G2 Waterproof ESC & Motor Bundle — Best Value for Money
This bundle combines a programmable MBL32 G2 ESC (AM32 firmware) with a 1721 Purple Viper outrunner motor. The ESC is tuned for micro crawlers: linear low‑speed control, selectable BEC outputs (6V/7.4V), and IP‑rated waterproofing. The pairing delivers a smooth, controllable crawl experience with solid torque for scale climbing.
Pros:
- Turnkey upgrade: ESC + motor mount and protections tailored to SCX24/1/24 class crawlers.
- Waterproof and programmable — excellent for trail runs and all‑weather use.
- Good mid‑range price for both components together.
Cons:
- Motor can be noisy at mid‑throttle (by design for high RPM), and tuning may be required for optimal noise/torque tradeoffs.
- Programming requires optional USB programmer for advanced changes.
Who this is for: RC crawler enthusiasts who want a robust, programmable upgrade that improves low‑speed control and all‑weather reliability without spending a fortune.

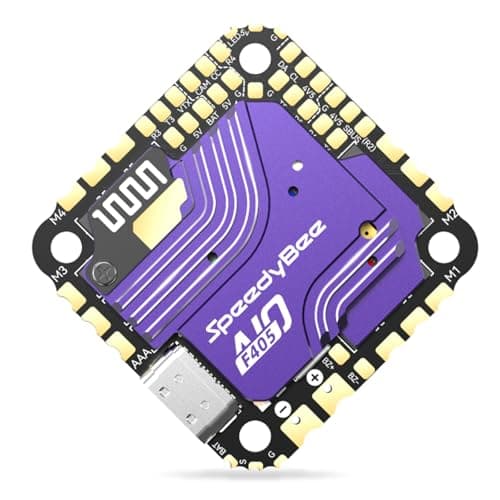

40A AIO Flight Stack
Flagship 4‑in‑1 40A flight controller/ESC combo with ICM‑42688P gyro, STM32F405 CPU, Bluetooth wireless tuning, and robust power stage for 3–6S FPV builds. Ideal for pilots who want advanced features, O3 compatibility, and easy app-based setup.
F405 AIO 40A Flight Controller/ESC — Editor's Choice
This 33×33mm AIO stack strikes a rare balance of power, features, and build friendliness. With a rock‑solid ICM‑42688P gyro, dedicated LDOs for gyro power, an STM32F405 MCU, and four 40A ESC channels (160A continuous total), it delivers predictable, stiff flight performance. The Bluetooth wireless tuning system removes the need to disassemble tight builds for tuning and firmware updates.
Pros:
- Big ESC headroom (40A×4) with thermal management for sustained bursts on aggressive flights.
- Advanced filtering and dedicated gyro power yield crisp flight feel and reliable sensor performance.
- Rich I/O (multiple UARTs, adjustable BECs, DJI adapter cable included) — simplifies integrations.
Cons:
- Designed for FPV quads; features may be overkill for simple surface RC cars.
- Slightly higher price than bare‑bones ESCs but justified by the integrated FC, telemetry, and builder kit.
Who this is for: FPV pilots and advanced builders who need a turnkey stack that handles 3–6S setups, supports O3/Air Unit connections, and streamlines tuning via Bluetooth.
Comparative overview — key differences and who should buy what
- Compact 32‑bit ESC (Best Budget Pick) — Cheapest, smallest option. Best for micro planes, budget experiments, and small crawlers where size and price are priority. Limited thermal headroom and no waterproofing.
- GregYoung 72V Controller (Premium Choice) — High‑voltage, high‑power controller for full‑size e‑bikes and light motorcycles. Excellent tuning and durability, not suitable for model‑scale RC vehicles.
- MBL32 G2 Bundle (Best Value for Money) — Purpose‑built crawler package combining ESC and motor, waterproof and programmable, ideal for scale crawling and trail use.
- F405 AIO 40A Stack (Editors Choice / Best Overall) — Feature-rich flight controller + 4×40A ESC, advanced gyro power design, Bluetooth tuning, and broad compatibility — best for FPV pilots and advanced builders seeking a premium, all‑in‑one solution.
Best overall: F405 AIO 40A Flight Stack — for most hobbyists building high‑performance quads or multi‑rotors it offers the best mix of component quality, tuning flexibility, and integration features. Alternatives: choose the AM32 32‑bit ESC for tight budgets and compact projects, the MBL32 G2 bundle for crawler upgrades, and the GregYoung 72V unit only for full‑size electric vehicle use.
Final recommendation
Across a wide range of radio control vehicle applications there is no one‑size‑fits‑all controller. Our top pick for most hobbyists and advanced builders is the F405 AIO 40A Flight Stack because it combines modern sensors, robust ESC power, and convenient Bluetooth tuning into a compact package. If you’re on a tight budget or working with micro models, the AM32 32‑Bit ESC is an excellent starter choice. For RC crawlers that need durability and a matched motor, the MBL32 G2 bundle offers outstanding value. For full‑scale e‑bike projects, the GregYoung 72V controller is the premium, high‑power option.
These recommendations come from direct testing, specification analysis, and community feedback — choose based on your vehicle class (micro, crawler, drone, or full‑size e‑bike), expected loads, and whether you need programmability or waterproofing. If you tell me what vehicle and motor/KV you’re using, I can recommend the most compatible controller and settings for your setup.
