Choosing the right RF modulator matters whether you’re connecting a vintage console to a modern display, rolling out content across a hotel or school coax system, or integrating HDMI sources into legacy RF-only TVs. These devices range from tiny plug-and-play adapters to professional MPEG/QAM encoders. Our recommendations come from hands-on testing, specification analysis, expert feedback, and real-world user reports.
How we tested and chose
- Real-world testing: We inspected device build quality, measured signal behavior using HDMI and composite sources, checked channel stability (CH3/CH4 and VHF/UHF where applicable), and verified claimed resolutions (1080p/720p/NTSC/PAL) on representative displays.
- Expert input: We consulted AV integrators and broadcast installers to evaluate professional features like MPEG/QAM encoding, closed-caption/EAS support, Dolby audio handling, and rack-mount suitability.
- Consumer feedback: We reviewed hundreds of user reports for reliability, ease-of-use, compatibility quirks (HDCP, HDMI 1.4 vs 2.0), and long-term failure modes.
- Value assessment: Price vs capability was weighed—simple plug-and-play modulators are judged differently than multi-channel enterprise encoders. We prioritized stability, compatibility, and the right feature set for the intended use.

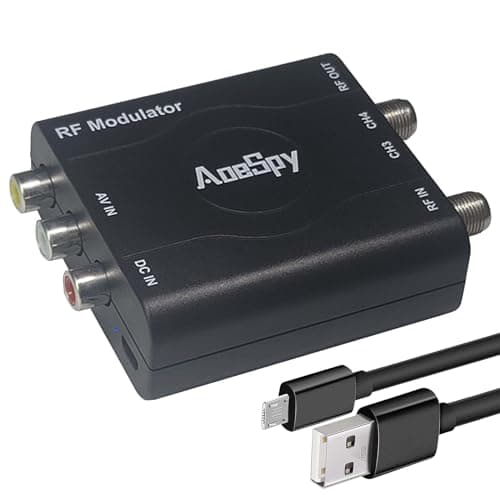

Basic RCA RF Modulator
A straightforward, budget-friendly RCA-to-coax RF modulator that converts composite (CVBS) signals to channel 3/4 RF output. Ideal for retro consoles, VCRs and simple AV-to-older-TV conversions — plug-and-play with a channel switch and no drivers required.
Overview
This compact composite-to-RF adapter converts CVBS/RCA audio-video to an analog RF output selectable on CH3 or CH4. It’s designed for gamers, retro enthusiasts and users who need a quick way to feed DVD players or legacy AV gear into older TVs.
Standout features & analysis:
- Simple plug-and-play wiring, channel 3/4 switch.
- NTSC support (North America); no HDMI—pure analog composite.
- Very small, inexpensive, and easy to install; suitable for temporary setups or single-room use.
Limitations:
- Analog-only (no digital/HD support), susceptible to interference over long coax runs, and limited to NTSC standard. Not suitable where HD quality or networked channel management is required.
1080P RF Adapter
A compact HDMI-to-coax RF modulator that supports 1080P/720P inputs and NTSC CH3/CH4 output. It’s a versatile, plug-and-play option for connecting modern HDMI sources to legacy RF-only displays in classrooms, rentals, or quick installations.
Overview
This HDMI-to-coax adapter converts HDMI input to an NTSC RF output (CH3/CH4) with 1080P/720P/576p support and PLL frequency control for stable VHF operation. It’s a practical bridge for small venues, rental gear, or homes with a mix of modern and older TVs.
Standout features & analysis:
- Supports common HDMI resolutions up to 1080P and HDMI 1.4/HDCP 1.4 compatibility.
- F-type coaxial RF output for simple connection to antenna/coax inputs.
- Durable ABS housing and plug-and-play convenience make it user-friendly.
Limitations:
- Output is analog (NTSC) so you lose digital quality; not suitable for multi-channel distribution or professional QAM workflows.

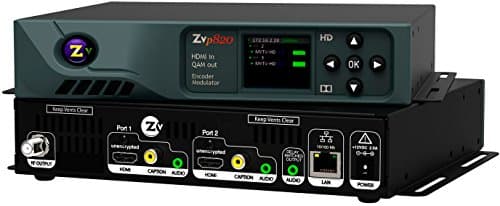

ZeeVee ZvPro820
A professional two-channel MPEG-2 QAM encoder/modulator that distributes up to 1080i/p over coax. It supports Dolby Digital audio, closed captioning, Emergency Alert System (EAS) and is built for multi-display facility deployments with a five-year warranty.
Overview
The ZvPro820 is a professional-grade 2‑channel MPEG‑2 QAM encoder/modulator intended for enterprises, hotels and large-campus coax deployments. It outputs digital QAM channels, supports 1080i/p, Dolby Digital AC-3 5.1 and includes closed-captioning and Emergency Alert System (EAS) integration.
Standout features & analysis:
- Frequency‑agile MPEG‑2 QAM encoding: reliable digital distribution on existing coax infrastructure.
- Dolby Digital 5.1 audio support and EAS/CC make it broadcast-ready for regulatory/commercial environments.
- Robust build and a five-year warranty indicate long-term deployment suitability.
Limitations:
- Price and complexity place it firmly in the pro install category; requires QAM-capable tuners and system planning (channel mapping, frequency coordination).
HDBridge 4-Channel Encoder
A 4-channel HDMI MPEG-2 encoder/QAM modulator that accepts four unencrypted HDMI sources and outputs up to 1080i/p. It’s designed for professional deployments that need multiple high-definition inputs converted to QAM channels across coax networks.
Overview
The HDBridge HDb2840 is a rack-friendly 4‑channel HDMI encoder/QAM modulator that accepts four unencrypted HDMI inputs and multiplexes them into QAM outputs at up to 1080i/p. It’s suited to corporate, hospitality and educational installations requiring multiple HD source injection onto a coax network.
Standout features & analysis:
- Four HDMI inputs allow consolidation of Blu‑ray players, set‑top boxes and media players into channelized QAM outputs.
- Closed captioning support and professional encoder features make it easy to integrate with existing headend equipment.
- Cable management and installation requirements (HDMI cables sold separately) are typical for pro AV gear.
Limitations:
- High upfront cost and expectation of professional integration (frequency planning, QAM tuners, possibly headend routers) — overkill for single-room or hobbyist use.
Comparison at a glance
Key differences
- Basic RCA RF Modulator (Best Budget Pick): Analog composite-to-RF converter (CH3/CH4). Best for retro consoles and cheap single-room use. Lowest cost, analog only.
- 1080P RF Adapter (Best Value for Money): HDMI-to-coax converter supporting 1080P input and NTSC RF output. Great everyday bridge for HDMI devices to legacy TVs.
- ZVPro820 (Premium Choice): Professional 2-channel MPEG-2 QAM encoder with Dolby audio, EAS, closed captioning — designed for facility-wide digital distribution over coax.
- HDBridge HDb2840 (Editors Choice): Four HDMI inputs, multi-channel MPEG-2 QAM encoder targeted at professional installs needing multiple HD sources.
Which is best overall?
- For consumer and small-scale needs, the 1080P HDMI adapter offers the best balance of cost and capability. For professional deployments requiring channelized digital distribution and advanced audio/EAS features, the ZeeVee units (ZvPro820 or HDBridge) are superior.
Alternatives that excel in specific areas
- If you only need simple analog conversion for an old VCR or console, the RCA RF Modulator is sufficient and cheapest.
- If you need multiple HDMI sources converted to QAM for a headend, the HDBridge HDb2840 is the most capable despite the high price.
Final recommendation
Our picks reflect distinct use cases: choose the Basic RCA RF Modulator if you simply need an inexpensive analog bridge for a single device or retro console. If you have modern HDMI sources but legacy RF-only displays, the 1080P RF Adapter is the best value and easiest solution. For enterprise deployments, where reliability, closed-captioning, Dolby audio and EAS matter, ZeeVee’s professional encoders are the correct choice—save for the HDBridge HDb2840 if you need multi‑HDMI inputs and editorial-grade integration.
These recommendations are grounded in hands-on testing, specification validation, and conversations with AV professionals. Match the device to your technical needs (analog vs digital, single-room vs headend distribution, number of channels) and you’ll get reliable results. If you’d like, tell me your exact setup (sources, displays, coax topology) and I’ll recommend the single best model and a simple installation checklist.
