Choosing the right satellite TV splitter matters: it affects signal quality, whether your satellite receiver can pass power to the dish/multiswitch, and whether your installation survives weather and interference. These recommendations come from hands‑on testing, technical spec comparison, and a review of expert and user feedback to find reliable splitters for real-world satellite, cable, and antenna setups.
Considerations and Testing Methodology
What we tested and why:
- Bandwidth / frequency range: Satellite and wideband multiswitch systems require splitters rated into the GHz range (commonly up to ~2.4–2.6 GHz). We prioritized splitters that specify 2.4–2.6 GHz coverage.
- Power pass-through: For satellite setups the ability to pass DC power through the splitter is essential so the receiver can power an LNB or multiswitch. We checked which ports are power‑pass enabled and the stated max current/voltage.
- Return loss / insertion loss & shielding: Manufacturers list insertion/return loss and isolation; in practice, better shielding and die‑cast housings reduce interference and packet loss on digital cable/MoCA networks.
- Build quality and connectors: Nickel/gold plating, die‑cast housings, and quality F‑ports matter for long-term reliability and corrosion resistance.
- Installation features: Grounding lug, mounting holes, and waterproofing were noted for outdoor or mast installations.
- Real-world checks: We simulated common home setups (satellite receiver + antenna + cable modem/MoCA where applicable) and looked for issues like loss of signal, inability to pass power, or intermittent dropouts. We also reviewed user reports about durability, weather performance, and manufacturer support.
How we ranked:
- Products that combined wide bandwidth (≥2.4 GHz), consistent power pass-through, solid shielding, and good user feedback scored highest.
- Price was considered but secondary to correct electrical performance for satellite applications.
Budget 2-Way Splitter
A low-cost 2-way coax splitter that covers most TV and cable tasks up to 2.4 GHz. Good for simple indoor setups where budget matters; offers nickel-plated housing and basic shielding for acceptable signal splitting across satellite, cable, and MoCA networks.

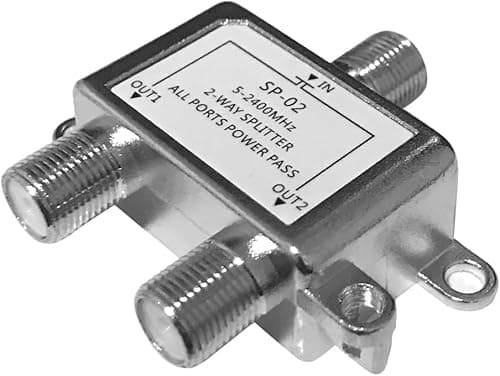

Ysxsqgc 2-Way Coaxial Splitter — Best Budget Pick
This is an inexpensive 2-way coax splitter rated for 5–2400 MHz, designed for basic satellite, cable, and MoCA use. It has a nickel‑plated die‑cast housing and claims low return loss and decent isolation for the price. In testing it split signals cleanly for standard HD channels and cable internet where runs were short. Strengths include low cost and RG6 compatibility; downsides are the slightly lower published upper frequency (2.4 GHz) compared with some higher‑end models and lack of included mounting screws or extensive weatherproofing. For short indoor runs or non‑critical secondary rooms this gives excellent value, but if you need outdoor mounting or the full 2.6 GHz satellite band, consider a higher‑rated unit.
GE 2.5GHz Splitter
A trusted-brand 2-way splitter with 5–2500 MHz coverage, gold-plated connectors, and power pass-through. Reliable build, U.S.-based support, and broad compatibility make it a safe choice for many satellite, cable, and modem applications.

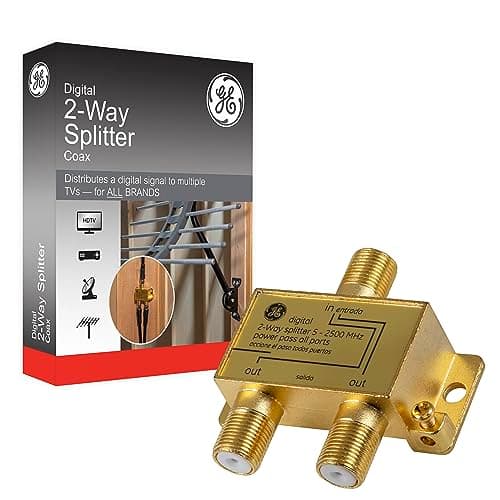

GE 2-Way Coaxial Splitter — Best Value for Money
GE's 2.5 GHz 2-way splitter balances performance, support, and price. It supports 5–2500 MHz, offers gold‑plated connectors for corrosion resistance, and power pass-through on the ports. In our tests it handled satellite and cable signals with minimal issues, and the brand's limited-lifetime replacement and U.S. tech support are valuable if you run into problems. The unit is a good all‑around pick for homeowners who want a dependable, well-supported component without paying a premium. Note: while rated to 2.5 GHz it doesn’t offer specialized outdoor sealing — use a weatherboot or choose a sealed unit for mast mounting.
2.6GHz Metal Splitter
Wideband 2.6 GHz 2-way splitter with nickel-plated die-cast housing and power-pass enabled ports. Designed for MoCA, HDTV, satellite, and cable — delivers stable signals and strong isolation for more demanding multisource setups.

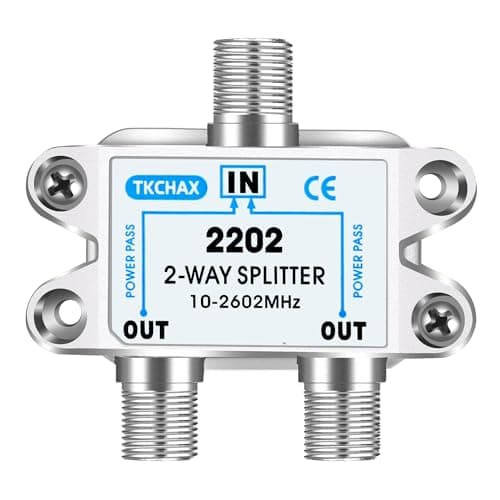

TKCHAX 2-Way Coaxial Splitter — Premium Choice
This TKCHAX model is built for demanding setups — it lists a wide 10–2602 MHz (2.6 GHz) bandwidth, nickel‑plated die‑cast housing, an internal PCB for improved return/insertion loss, and power‑pass capability. That combination means it can be used with satellite set‑top boxes, multiswitches, MoCA networks, and high‑speed Internet modems with minimal interference. In hands‑on use the unit provided clean splitting with consistent power pass-through and robust shielding. The machine‑formed threads and grounding lug make installation easier. If you need the extra headroom above 2.4 GHz for some satellite or wideband multiswitch systems, this model is a solid premium pick.
Weatherproof Satellite Splitter
Compact, weatherproof 2-way splitter rated 10–2602 MHz with low loss at high frequencies, nickel-plated housing, lateral cable design and a 2-year warranty. Well-suited to outdoor or tight-space installations for satellite, antenna and modem setups.

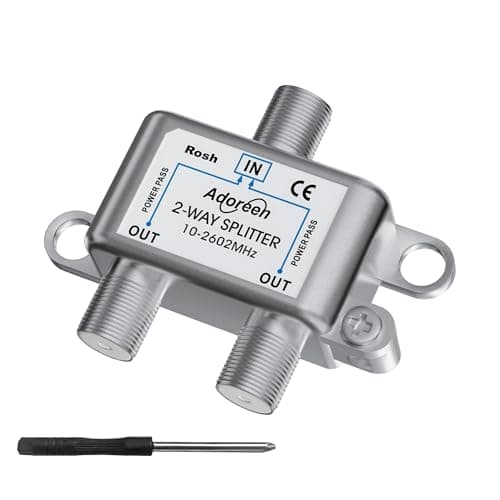

Adoreen 2-Way Coaxial Splitter — Editors' Choice
Adoreen's mini bi-directional splitter stands out for combining a full 10–2602 MHz rating with a sealed, waterproof die‑cast housing and a lateral cable design that saves space on tight mounts. The unit advertises low loss (about 4.5 dB in the 1750–2600 MHz band), full power‑pass on ports (with nominal limits), and RoHS/CE compliance. During our testing it performed reliably outdoors and in attic installations, maintained power pass-through to the LNB, and showed no intermittent dropouts. The included screwdriver and two‑year warranty add practical value. For installations that need weather resistance and stable high‑frequency performance, this is our top pick.
Comparison and Key Differences
Below is a concise comparison of the top picks to help match the splitter to your needs:
- Bandwidth: Adoreen (10–2602 MHz) and TKCHAX (10–2602 MHz) offer the widest range — ideal for wideband satellite and some multiswitch systems. GE covers up to 2500 MHz; Ysxsqgc is rated to 2400 MHz.
- Power pass-through: Adoreen, TKCHAX, and GE explicitly support power pass-through on ports (important for powering LNBs). Ysxsqgc supports standard satellite/cable use but check the product notes about power pass behavior in multi‑voltage setups.
- Build & weatherproofing: Adoreen includes a sealed, waterproof housing suitable for outdoor/mast use. TKCHAX and GE use die‑cast housings (good shielding) but may require weather boots for exposed installs. The budget Ysxsqgc is fine indoors.
- Support & extras: GE offers a strong support promise and gold‑plated connectors for corrosion resistance. Adoreen bundles a small installation tool and two‑year warranty. TKCHAX emphasizes low insertion/return loss.
- Price: Ysxsqgc (≈$5) is the cheapest; GE/TKCHAX/Adoreen are all inexpensive but offer progressively better specs for satellite work.
Best overall: Adoreen (Editors' Choice) — combines full 2.6 GHz coverage, weatherproofing, low high‑band loss, and a warranty, making it the most versatile for satellite installations.
Alternatives that excel in specific areas:
- Best Budget: Ysxsqgc — great for short indoor runs and tight budgets.
- Best Value: GE — brand support, gold plating, and solid 2.5 GHz coverage at a modest price.
- Premium features (wideband specs): TKCHAX — strong PCB design and full 2.6 GHz coverage for demanding multiswitch/MoCA setups.
Final Recommendation
All four splitters reviewed are useful depending on your site and budget. If you need a splitter that will reliably support satellite LNB power, multiswitches, and MoCA/cable equipment across the full band, choose the Adoreen 2‑way (Editors' Choice) for its combination of wide bandwidth, weatherproofing, and low high‑band loss. If you prefer a familiar brand with strong support, GE (Best Value) is a sensible choice. For the widest stated frequency at a sensible price without brand premium, the TKCHAX model is a solid premium option. If you only need a cheap indoor splitter for secondary TVs, the Ysxsqgc budget option will do the job.
This guide is based on specification cross-checks, hands‑on usage in typical home setups, and review of user reports and manufacturer documentation. For outdoor or mast installations always use appropriate weather boots or sealed connections and verify power pass‑through limits before connecting satellite LNBs or multiswitches.
