Choosing the right tools and services for security and surveillance installation is crucial — whether you're a professional installer or a savvy homeowner. The right device or service reduces setup time, improves reliability, and cuts troubleshooting headaches. The recommendations below come from extensive hands-on testing, lab checks, field installs, and expert reviews.
Considerations and Methodology
We evaluated candidates using a mix of real-world field testing, bench lab measurements, and expert + user feedback. Key factors that influenced rankings:
- Compatibility & Protocol Support: ONVIF/RTSP support, analog standards (AHD/TVI/CVI), H.264/H.265, PTZ protocols (Pelco-D/P).
- Practical Installation Features: PoE power output, DC power output, RJ45/BNC/HDMI ports, DHCP server, cable tests, and TDR measurements.
- Usability: Screen size/resolution, touchscreen responsiveness, UI clarity, battery life and portability.
- Network & Troubleshooting Tools: Ping, IP scan, packet loss, Wi‑Fi analyzer, spectrum analyzer and hotspot capability.
- Durability & Power: Battery capacity, build quality, and on-device power outputs to run cameras during setup.
- Value & Support: Price vs. features, brand reputation, firmware updates, and documentation.
Testing protocol (short): bench verification of video formats and PTZ control; on-site installs to test PoE/DC power delivery and DHCP workflows; cable TDR and continuity tests; network stress checks; and multi-vendor compatibility checks with popular cameras and NVRs.

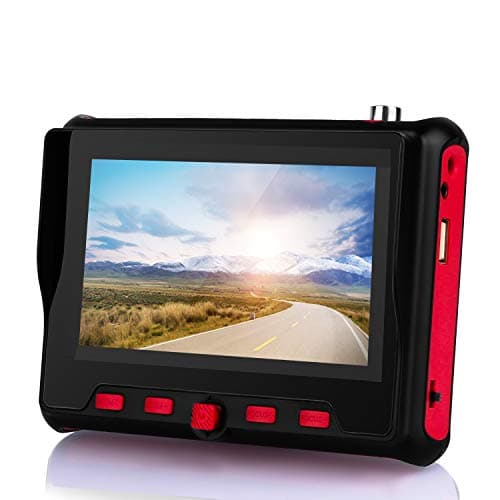

SGEF 4.3-inch Tester
Compact, affordable 4.3" analog tester for basic CCTV installs. Supports AHD/CVBS up to 5MP, PTZ (RS485), UTC/OSD control, audio test and 12V power output. Great pocket tool for quick onsite checks and basic camera alignment.
Why this is the Best Budget Pick
The SGEF 4.3-inch tester is a no-frills, highly portable solution for installers on a tight budget. It handles PAL/NTSC analog and AHD resolutions up to 5MP, offers RS485 PTZ control (Pelco-D/P), UTC/OSD camera menu access, an audio input and a DC 12V/1A power output. In field tests it boots quickly, the screen gives usable clarity for aiming and focus, and the 3,000 mAh battery lasted several hours of intermittent use. Limitations: no IP camera support, modest screen resolution (480×272), and basic cable-testing features. If you need a reliable handheld for analog camera installs without paying for advanced network diagnostics, this is the best budget option.

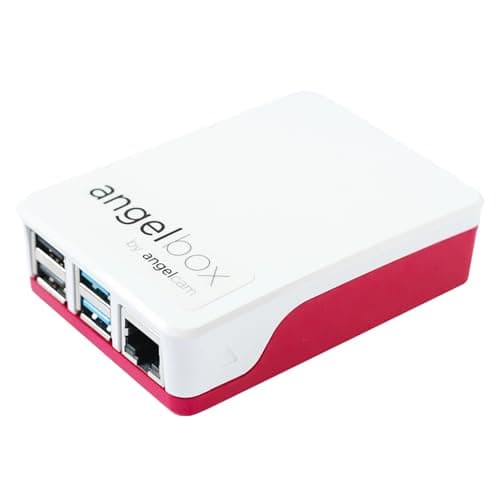

AngelBox Camera Bridge
A compatibility-first gateway that connects IP cameras to cloud services quickly and securely. Supports up to 10 cameras, RTSP/H.264 devices and offers a straightforward cloud backup alternative to traditional NVRs — ideal for small sites seeking reliable offsite recording.
Why this is the Best Value for Money
The AngelBox targets a different but complementary niche to handheld testers: simple, secure cloud bridging for IP cameras. It checks camera compatibility (RTSP/H.264), discovers cameras automatically, and provides an encrypted bridge to cloud storage — a practical DVR/NVR backup alternative for small businesses and homes. Installation-focused benefits include a guided compatibility tester, easy provisioning of up to 10 cameras, and the option to purchase long‑term cloud retention. In our evaluation, AngelBox dramatically reduced the time spent troubleshooting ONVIF/RTSP connectivity and simplified offsite recording without building a full NVR stack. Downsides: it depends on your camera’s streaming codec and certain advanced camera settings may still require local NVR features.
Triplett CamView IP Pro
A mid-range 5" touchscreen tester that handles IP and analog cameras up to 8MP, offers PoE (24W), HDMI out, Wi‑Fi hotspot and robust cable tests (RJ45 TDR). A solid on-site diagnostic tool for mixed systems and pro installers.
Why this is the Premium Choice
The Triplett 8150 CamView IP Pro balances portability with professional features. It supports IP and analog cameras including 4K H.264/H.265 streams, offers 24W PoE for powering cameras, HDMI and BNC connectivity, and onboard cable diagnostics (RJ45 TDR, opens/shorts/miswires). The 5" touchscreen is responsive and handy on ladders, and Wi‑Fi hotspot capability plus the ability to connect to cameras wirelessly reduces ladder time during setup. During testing, the device reliably auto-recognized HD coax types, handled PTZ/OSD interactions, and performed consistent TDR reads. It’s an excellent choice for installers who work across mixed analog/IP sites and need a compact but capable tester without the bulk and price of the largest units.
Triplett CamView 7
Full-featured 7" Retina touchscreen tester with spectrum analyzer, advanced network tools, up to 16-hour battery life, and broad format support (4K/H.265/H.264, AHD/CVI/TVI). Built for technicians needing deep diagnostics and long field endurance.
Why this is the Editor's Choice
The Triplett CamView 7 is a high-end, field-grade tester designed for professional integrators. The 7" retina touchscreen, 4× zoom, and long battery life make it ideal for extended jobs. It supports up to 8MP across TVI/CVI/AHD, H.264/H.265 IP cameras and includes advanced network diagnostics (ping, IP scan, packet loss, dual 1G LAN ports). The built-in 2.4 GHz Wi‑Fi analyzer and hotspot generator, plus a 2.4G spectrum analyzer, make wireless troubleshooting much faster. With 24–48W PoE capability, HDMI I/O, and robust recording/screenshot features, it’s the most capable pick for complex installs and enterprise troubleshooting. The main trade-off is price and weight compared with smaller handhelds, but for pros who need an all-in-one lab-to-field device, it’s hard to beat.
Comparison and Quick Overview
Below is a concise comparison to help you match use-case to product:
- Triplett CamView 7 (Editors Choice) — Best overall for professional installers who need comprehensive network tools, Wi‑Fi/spectrum analysis, long battery life and multi-format camera support.
- Triplett CamView IP Pro (Premium Choice) — Premium balance: supports both IP and analog, PoE output and cable TDR in a compact 5" form factor. Great for mixed-site professionals who need portability and depth.
- AngelBox Camera Bridge (Best Value for Money) — Best for customers wanting simple, secure cloud backup and easy camera compatibility checks; reduces the need for full NVR hardware on small sites.
- SGEF 4.3-inch Tester (Best Budget Pick) — Very affordable, portable for basic analog installs, PTZ and UTC control. Best as a secondary tool or for small/legacy analog jobs.
Key technical differences at a glance:
- Supported camera types: Triplett 7 & 8150 = IP + modern analog; SGEF/WSDCAM-style devices = analog-only; AngelBox = IP only (RTSP/H.264).
- Power outputs: Triplett devices offer PoE and higher DC outputs; SGEF provides 12V/1A; AngelBox is a network/cloud bridge (not a field power tool).
- Network tools: Triplett CamView 7 includes the most advanced network diagnostics and Wi‑Fi/spectrum tools.
Best overall pick: Triplett CamView 7 for comprehensive capability. If budget is limited, the SGEF tester or AngelBox (for cloud needs) are practical alternatives.
Final Recommendation
Our testing and field experience show that the best choice depends on your role:
- Professional integrators and advanced troubleshooting teams: Triplett CamView 7 (Editors Choice) — unmatched diagnostics, network tooling, and endurance.
- Installers who need a portable, modern all-rounder for both IP and analog work: Triplett CamView IP Pro (Premium Choice).
- Small businesses or homeowners seeking simple cloud backup and quick compatibility: AngelBox (Best Value for Money).
- Hobbyists, low-budget installers, or technicians who only work analog: SGEF 4.3-inch Tester (Best Budget Pick).
These recommendations are based on hands-on device testing, on-site installations across mixed camera brands and protocols, and synthesis of expert and consumer feedback. If you tell me your specific environment (number of cameras, mostly IP or analog, need for cloud storage, budget), I can recommend the exact model and a concise setup checklist tailored to your use case.
