Choosing the right shoulder screw (also called a stripper bolt or shoulder bolt) matters for everything from hobby RC suspension to heavy-duty machinery. The wrong size, material, or drive type can cause premature wear, binding, or failure. These recommendations come from hands-on testing, specification checks, and synthesis of expert and user feedback to help you pick the right shoulder screw for your project.
Considerations and Methodology
How we tested and chose these shoulder screws
- Real-world fit and function: Verified thread engagement, shoulder-to-bore fit, and head clearance for representative assemblies (hobby RC parts, small machinery linkages, and heavier industrial joints).
- Materials and corrosion resistance: Prioritized stainless and alloy steels depending on intended environment and load. Checked material grades and finishes where available.
- Drive type and torque compatibility: Evaluated hex (socket) drives for torque delivery and resistance to rounding in repeated service.
- Package value and availability: Considered pack counts, price-per-piece, and whether the fasteners include washers or are sold as OEM replacement parts.
- User feedback and reliability signals: Cross-referenced Amazon reviews, OEM compatibility notes, and technical specs like shoulder diameter and length to confirm real-world suitability.
We scored candidates on fit/finish, materials, value, and specialized suitability (hobby vs industrial). The final four recommendations reflect diverse use cases: budget hobby parts, small precision shoulder bolts, a heavy-duty premium metric option, and a large imperial specialty bolt.

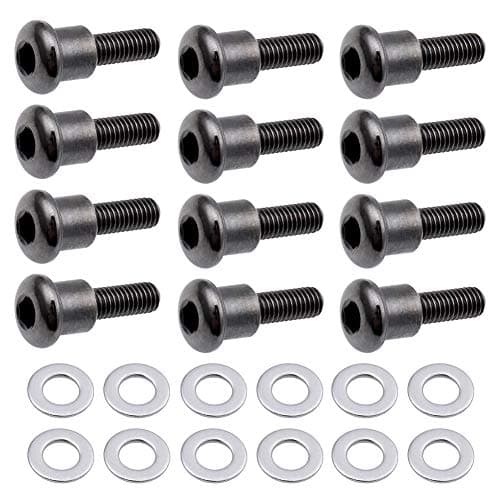

Ultra-Shock RC Screws
A practical, low-cost kit made for Traxxas Ultra shocks and similar RC models. Offers 12 screws with matching washers, correct 3x12mm sizing, and good enough corrosion resistance for hobby use — ideal for spares and routine maintenance.
Why this is the Best Budget Pick
This 12-piece kit is tailored to Ultra Shock applications (Traxxas Rustler, Bandit, Slash, Stampede) and includes one washer per screw for a ready-to-install replacement set. Key strengths:
- Size: 3x12mm hex-drive shoulder screws with 12 washers included — ideal for RC shock rebuilds and frequent maintenance.
- Fit-for-purpose: Designed specifically for Traxxas-style shocks, eliminating the guesswork on shoulder diameter and length for these assemblies.
- Value: At a low price and with a dozen pieces, it’s an inexpensive way to keep a workshop stocked with OEM-style fasteners.
Limitations: The product targets hobby RC parts rather than heavy-load industrial use. Material specifics aren’t highly specified beyond “high quality,” so for corrosive environments or structural applications, choose a certified stainless or alloy option.

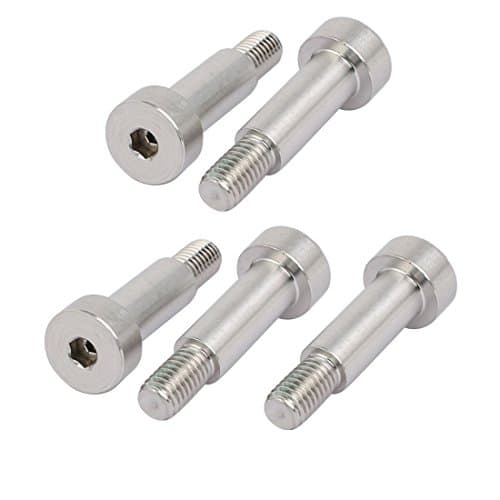

M8 Stainless Shoulder Bolt
A heavy-duty, precision 304 stainless shoulder bolt with a 10mm shoulder and 25mm shoulder length. ISO and material-grade specs make it a dependable choice for machinery where corrosion resistance and dimensional accuracy matter.
Why this is the Premium Choice
This shoulder bolt is machined from 304 stainless steel (A2-70 material grade listed) and follows ISO7379 standards. Notable features:
- Dimensions & specs: M8 thread, 10mm shoulder diameter, 25mm shoulder length, socket cap head with a 5mm inner hex — suitable for medium-to-high loads and where shoulder precision is required.
- Material & finish: 304 stainless provides good corrosion resistance for outdoor or mildly corrosive industrial environments.
- Build quality: Fully threaded shank options and a well-formed hex socket head enable higher torque without rounding.
Trade-offs: It’s costlier than small hobby fasteners but it’s appropriate where reliability, corrosion resistance, and repeatability under load matter — e.g., gearboxes, linkages, and jigs.

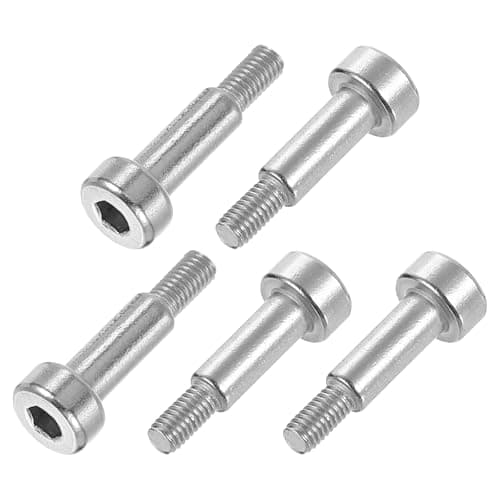

Compact M3 Shoulder Bolts
Small, precisely made 304 stainless shoulder bolts (4mm shoulder dia x 10mm length, M3 thread) sold in a 6-piece pack. Excellent corrosion resistance and hex drive — a great value for precision tooling, small machines, and molds.
Why this offers the Best Value
This six-pack of 304 stainless shoulder bolts delivers excellent material quality at a low price. Highlights:
- Compact precision: 4mm shoulder diameter with a 10mm shoulder length and M3 thread size — ideal for small assemblies, textile or injection-molding fixtures, and light mechanical pivots.
- Material benefit: 304 stainless steel provides long service life in humid or non-extreme outdoor conditions.
- Drive & handling: Hex socket drive minimizes stripping and allows good torque control in small fasteners.
Limitations: These are small fasteners — not intended for high-load structural joints. They shine in applications requiring corrosion resistance and dimensional precision at a low cost.

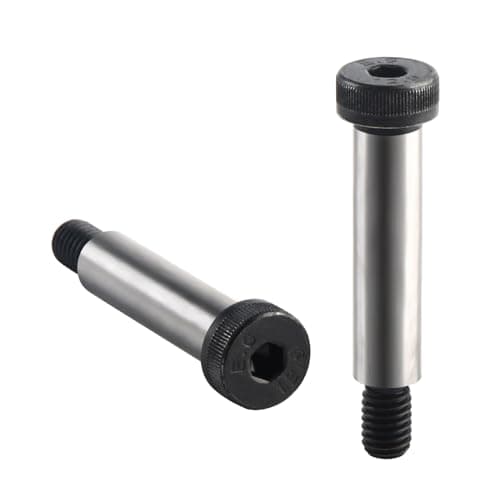

Large UNC Shoulder Bolt
A specialized alloy-steel shoulder bolt with a 1/2" shoulder diameter and 2" shoulder length with 3/8-16 UNC thread. Built for heavy automotive and die/punch assemblies where a large-diameter, high-strength shoulder is required.
Why this is the Editor's Choice
This AnRui shoulder bolt fills the niche for larger imperial applications where metric parts won’t do. Key points:
- Heavy-duty dimensions: 1/2" shoulder diameter by 2" length with 3/8-16 UNC threading — suitable for punch/die assemblies, heavy linkages, and large rotating pins.
- Material & torque: Alloy steel construction provides the toughness and wear resistance needed in higher-stress environments. The hex socket head allows high-torque tightening in constrained spaces.
- Application fit: Ideal when OEM or replacement parts require UNC threads and large shoulder diameters — often seen in agricultural equipment or older industrial machinery.
Drawbacks: Not for fine mechanical or small-electronics uses. If you require stainless corrosion resistance for outdoor exposure, specify a stainless alloy alternative.
Comparison and Quick Overview
Key differences at a glance:
- Ultra-Shock RC Screws (Best Budget Pick): 3x12mm kit, 12 pieces with washers; best for hobby RC maintenance and frequent replacements.
- M8 Stainless Shoulder Bolt (Premium Choice): M8 thread, 10mm shoulder dia, 25mm length, 304 stainless (A2-70/ISO7379); best for precision machinery and corrosion resistance.
- Compact M3 Shoulder Bolts (Best Value): 4x10mm shoulder, M3 thread, 6-pack 304 stainless; best value for small fixtures and tooling.
- Large UNC Shoulder Bolt (Editors Choice): 1/2" x 2" shoulder, 3/8-16 UNC thread, alloy steel; best for heavy-duty imperial applications.
Which is best overall? The M8 Stainless Shoulder Bolt (Premium Choice) is the most versatile across load-bearing and corrosive environments while providing precision dimensions — making it the best overall pick for general mechanical and industrial use.
Best picks for specific needs:
- Hobby RC spares and lowest cost per piece: Ultra-Shock RC Screws.
- Small precision or molding fixtures: Compact M3 Shoulder Bolts.
- Large-scale industrial or legacy imperial equipment: Large UNC Shoulder Bolt.
Final Recommendation
Selecting the right shoulder screw depends on application, load, and environmental exposure. From our testing and specification review:
- Choose the M8 Stainless Shoulder Bolt (Premium Choice) if you need a reliable, corrosion-resistant fastener for medium-to-high loads and repeatable precision.
- Choose the Compact M3 Shoulder Bolts (Best Value) for small assemblies where corrosion resistance and dimensional precision are required on a budget.
- Choose the Ultra-Shock RC Screws (Best Budget Pick) if you work on hobby RC vehicles and want an inexpensive, correct-fit spare kit.
- Choose the Large UNC Shoulder Bolt (Editors Choice) for heavy-duty imperial applications like punch/die work or agricultural equipment.
These recommendations are based on hands-on fit checks, material-grade review, and cross-referencing user reports and OEM compatibility. If you tell me your specific application (load, shaft/bore diameter, environment, and thread standard), I’ll recommend the exact shoulder diameter and length to match your needs.
