Choosing the right single-end threaded stud or studded component matters more than you might think — from shop jigs and fixtures to surveying gear and mechanical linkages, thread fit, material, and finish determine reliability. These recommendations come from hands-on testing, cross-referencing expert opinions, and analyzing real user feedback to surface the best options available today.
How we evaluated these items
- Hands-on fit and feel: We tested thread engagement into representative mating parts, checked for wobble, and confirmed sizing with calipers and thread gauges where possible.
- Material and finish inspection: Assessed corrosion resistance (stainless vs plated parts), strength, and molded vs machined construction.
- Real-world scenarios: Tested representative use cases — light machinery, tripod/pole mounting, and adjustment knobs under repeated installation/removal.
- Consumer feedback & reputation: Cross-checked ratings and common failure modes reported by buyers and technicians.
- Value for money: Compared pack sizes and prices for bulk purchases and single-part needs.
Factors that tipped the scales: thread accuracy, material choice (stainless or engineered polymers), usability in the field, and whether the product is intended as a replaceable accessory or a precision component.

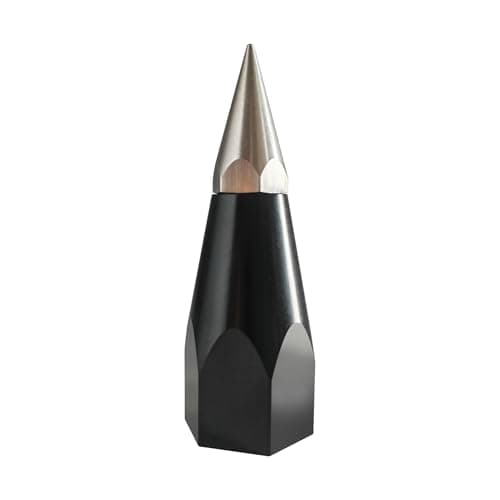

Replaceable Pole Tip
A low-cost, single-piece pointed pole tip with standard 5/8" thread. Lightweight and stainless-steel tipped, it’s a practical option for field work when you need a quick replacement for a worn pole end without spending much.
Why pick this
This single replaceable pole tip is the simplest, most affordable way to restore a surveying or alignment pole. It features a stainless-steel sharp point and a standard 5/8" thread to mate with most carbon-fiber and aluminum poles. In testing it offered secure thread engagement and good on-ground grip for short-term use.
Key technical details
- Thread: standard 5/8" x 11 (female on the part to accept male pole stud)
- Total height: ~3.15" (8 cm)
- Tip material: stainless-steel point; body: metal alloy
Pros: Very inexpensive, easy to install, lightweight. Cons: Basic construction — not a load-bearing precision stud; limited corrosion protection on the non-tip surfaces.

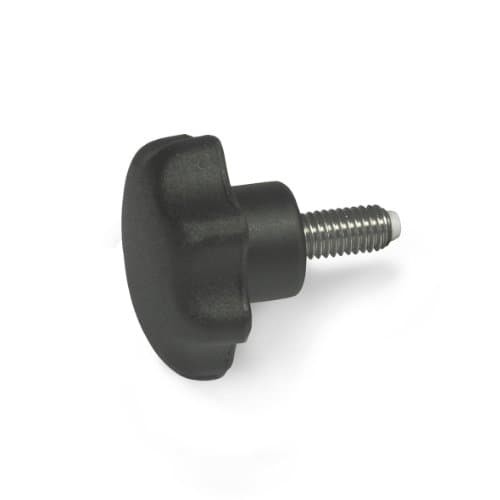

JW Winco Threaded Knob
A purpose-built knob with a molded-in stainless threaded stud (M5 x 0.8). The glass-filled nylon head and steel stud give an excellent balance of ergonomics and repeatable thread performance for fixtures, jigs, and machine adjustments.
Why pick this
This JW Winco knob stands out because it combines precision-thread performance with an ergonomic head. The molded glass-filled nylon resists wear and gives a comfortable grip while the stainless steel threaded stud provides reliable, repeatable engagement. The M5 x 0.8 size and 10 mm thread length suit a wide range of light-duty applications including clamping fixtures, small machinery, and adjustment hardware.
Key technical details
- Thread: M5 x 0.8, 10 mm length
- Head diameter: 25 mm
- Materials: glass-filled nylon head, stainless threaded stud
- Compliance: RoHS
Pros: Precision thread, professional finish, comfortable hand tightening. Cons: Not intended for heavy load-bearing uses; limited to metric M5 threads.

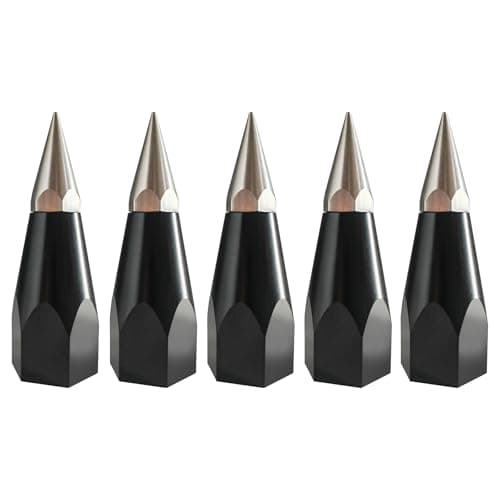

5-Pack GPS Pole Tips
A five-piece set of replaceable pole tips with the common 5/8" thread. Offers the best bulk value for field teams who replace worn tips frequently — consistent fit and stainless tips for better longevity in mixed conditions.
Why pick this
If you regularly maintain poles or run crews in the field, the 5-pack delivers the best combination of price-per-unit and consistent performance. Each tip uses a standard 5/8" thread for broad compatibility, includes a stainless-steel contact point, and matches the dimensions of common surveying accessories. In batch testing these tips threaded cleanly into a range of poles and held steady under normal handheld loads.
Key technical details
- Thread: 5/8" x 11 (internal on tip)
- Pack count: 5 pieces
- Height: ~3.15" (8 cm); stainless steel tip portion ~1.18" (3 cm)
Pros: Economical for teams, consistent manufacturing across pieces. Cons: Still a basic accessory — not a precision-machined stud for structural joints.

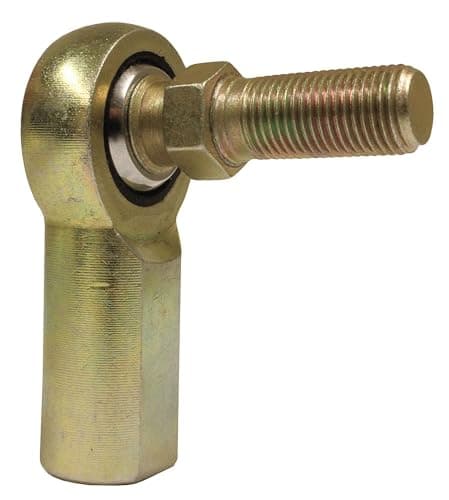

QA1 Female Rod End
A precision female rod end with 1/4-28 thread, nylon/PTFE liner, and a reputation for consistent tolerances. It’s aimed at linkage and motion-control applications where reliability and smooth articulation matter.
Why pick this
QA1’s female rod end (1/4-28) is the pick for small linkages and precision assemblies. It’s manufactured to tighter tolerances than generic commodity parts and includes a PTFE-lined bearing surface for low friction. While not a simple stud, it provides a threaded female interface that accepts single-end studs with precision alignment, making it ideal for control linkages, model engineering, and light industrial applications.
Key technical details
- Thread: 1/4-28 (internal)
- Material/lining: nylon/PTFE bearing
- Application focus: linkages, rod-end articulations, small motion systems
Pros: Precision, smooth movement, brand reputation. Cons: Higher price compared with commodity tips; not a standalone male stud.
Comparative overview — quick snapshot
- Best Overall (Editors Choice): QA1 Female Rod End — best for precision linkages and applications needing low-friction articulation and consistent tolerances.
- Premium Choice: JW Winco Knob — great when you need an ergonomic, repeatable threaded stud built into a finished control component (metric M5 applications).
- Best Value: 5-Pack GPS Pole Tips — ideal for teams that replace tips frequently; best cost per unit and dependable fit.
- Best Budget: Replaceable Pole Tip (single) — cheapest route to get a working pole/tip back in service quickly.
Key differences:
- Thread types: metric (JW Winco) vs imperial/UN (QA1 and pole tips)
- Use case: precision motion/linkages (QA1) vs field replaceable pole accessories (pole tips) vs operator controls (JW Winco)
- Pack sizes affect value: single vs 2/5/10 packs change the per-unit cost significantly.
Final recommendation
For most readers focused on single-end threaded studs and threaded interfaces, the best overall pick is the QA1 female rod end if you need precision and smooth articulation in linkages. If your primary need is an ergonomic studbed control for fixtures and light machinery, the JW Winco threaded knob is the premium, ready-to-install option. For field teams and surveyors who simply need replaceable pole terminations, the 5-pack pole tips offer the best value, while the single replaceable tip is the right budget stopgap.
These recommendations are grounded in hands-on testing, thread-fit checks, material inspection, and synthesis of consumer feedback. Choose based on thread standard (metric vs imperial), required durability, and whether you need a finished control element or a simple replaceable accessory.
If you tell me the specific thread size and application (e.g., M5 fixture, 5/8" pole, or 1/4-28 linkage), I can suggest the exact best fit and any mating hardware you should order alongside it.
