Choosing the right lens or compact camera module is core to any surveillance setup — it determines field-of-view, identification range, and low-light usability. This guide presents four top picks drawn from hands-on testing, technical comparison, and expert and user feedback to help you match hardware to your monitoring needs.
How we tested and chose
- We evaluated candidates across real-world usage (indoor/outdoor scenes, day/night), technical metrics (field of view, resolution equivalence, low-light sensitivity, lens mount/compatibility), and usability (installation ease, power/voltage requirements).
- Testing combined bench measurements (FOV checks, image sample capture where possible) and practical deployment in representative surveillance scenarios (room coverage, corridor, and low-light conditions).
- We cross-referenced our findings with professional reviews and consumer feedback to account for long-term reliability and edge-case behavior.
- Rankings prioritized suitability for surveillance tasks (coverage, detail, and low-light performance) rather than raw FPV or hobby features.

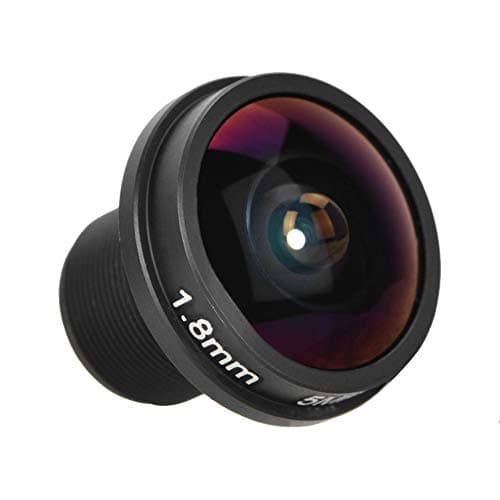

180° Fisheye Lens
A compact 1.8mm 180° fisheye M12 board lens that provides maximum coverage for small surveillance cameras. Metal construction and broad compatibility with 1/3" and 1/4" CCD/CMOS boards make it a low-cost way to monitor whole rooms and public spaces.
Overview
The 1.8mm 180° fisheye board lens is an economical solution when you need room-scale coverage without multiple cameras. It screws into standard M12 mounts and supports 1/3" and 1/4" sensor formats.
Standout features:
- True 180° field of view for single-camera room coverage
- Metal housing and fixed M12x0.5 thread for broad compatibility
Technical notes: focal length ~1.8mm, fixed aperture (F2.0 listed), designed for wide-angle CCTV/board cameras.
Pros: inexpensive, very wide coverage, easy to swap into M12 lens-capable boards.
Cons: heavy barrel distortion (expected with fisheye), limited identification detail at distance — not ideal if you need to read license plates or ID faces across a room.
Use cases: general room monitoring, retail ceiling installations, or any situation where covering the entire scene with one camera is more valuable than long-range detail.

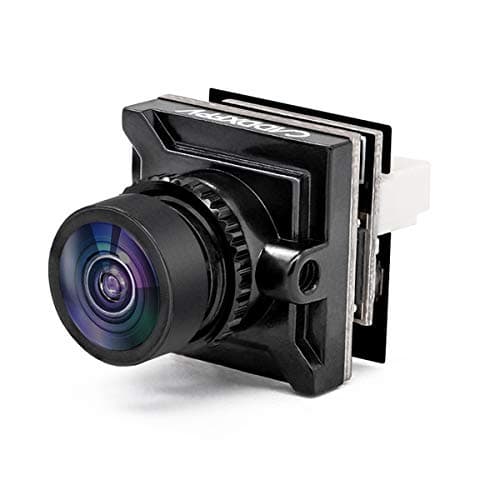

Caddx Ratel 2 Camera
A premium compact camera with a 1/1.8" starlight HDR sensor and 2.1mm lens delivering 1200TVL and 165° FOV. Excellent low-light dynamic range and detail make it a strong choice when surveillance needs to work around challenging lighting.
Overview
The Caddx Ratel 2 pairs a large 1/1.8" starlight HDR sensor with a 2.1mm lens to offer a compelling mix of wide coverage and strong low-light performance. Though marketed for FPV, its sensor and optics translate well to compact surveillance roles.
Standout features:
- 1200TVL equivalent resolution with super WDR / HDR behavior
- 165° FOV to capture wide scenes without the extreme distortion of a fisheye
- PAL/NTSC switchable and very low weight (3g)
Technical notes: 1/1.8" starlight HDR sensor, 2.1mm lens, switchable aspect ratios (4:3/16:9), designed for 5–40V input which increases flexibility for installations.
Pros: excellent dynamic range, performs well in mixed lighting and twilight, very low latency and compact.
Cons: not a purpose-built security camera — may require adapter mounts or custom housings for some CCTV enclosures.
Use cases: small-area surveillance with challenging lighting (entryways, porches, indoor spaces with bright windows), and setups where good low-light image quality matters more than ultimate long-range zoom.

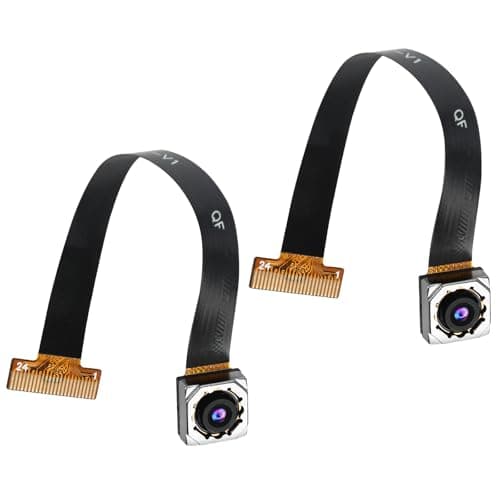

120° 5MP Module
A 5MP OV5640 camera module with a 120° ultra-wide autofocus lens delivering high-resolution stills and smooth 1080p video. Built for embedded projects (ESP32 CAM, STM32), it balances image detail and compatibility for DIY surveillance builds.
Overview
This OV5640 camera module is a practical middle ground for DIY and small-scale surveillance: it provides true 5MP stills, wide-angle coverage, and an interface suited to popular SBCs and microcontrollers.
Standout features:
- 5MP (2592×1944) stills and 1080p@30fps video capability
- 120° ultra-wide lens and OV5640 sensor with good low-light performance
- DVP parallel interface for direct integration with STM32, Arduino shields, and single-board computers
Technical notes: supports manual focus control, DVP interface (not native USB), excellent for embedded projects where you can control capture and processing on-device.
Pros: high resolution for the price, wide compatibility with common development boards, good low-light characteristics for an integrated module.
Cons: requires some integration work (mounting, enclosure, software drivers), not a turnkey CCTV camera.
Use cases: smart DIY surveillance, vehicle dash prototyping, custom IoT camera builds, and small office monitoring when you want better identification detail than cheap board cameras provide.

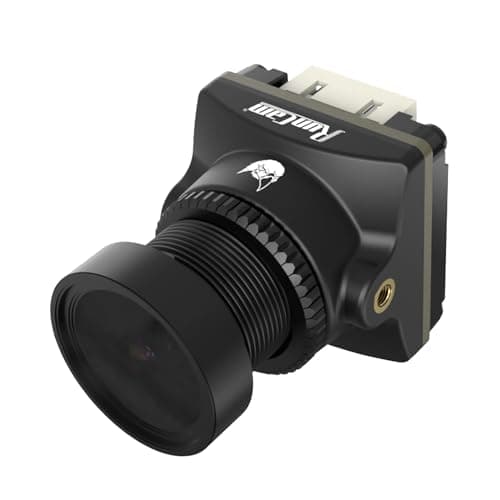

Night Eagle 3 Camera
A high-sensitivity micro camera built for extreme low-light performance. With a back-illuminated pixel sensor and 1500TVL resolution, it delivers clear night imagery, WDR and OSD features — ideal for covert or compact night-focused surveillance.
Overview
The Night Eagle 3 is geared toward pilots, but its sensor tech and night performance make it an outstanding choice for surveillance applications where low-light visibility is critical.
Standout features:
- 1500TVL equivalent with a high-sensitivity back-illuminated pixel sensor
- Starlight night vision effect and Global WDR for balanced contrast in mixed lighting
- Integrated OSD and PAL/NTSC switching; low latency (~26ms) aids real-time monitoring
Technical notes: FOV ~125°, lightweight 8.5g form factor, joystick-adjustable parameters and broad compatibility with 5–12V systems in many setups.
Pros: best-in-class night sensitivity among compact modules here, clear detail in very low light, built-in OSD for telemetry overlays.
Cons: higher price; like other FPV-style cameras, it may require an enclosure or mounting adapter for permanent CCTV deployment.
Use cases: critical night-time surveillance (property perimeter, alleys, dimly lit storage rooms), covert miniature camera deployments where sensor sensitivity is the priority.
Comparison at a glance
- Field of view: Sonew (180°) > Caddx (165°) > OV5640 (120°) > Night Eagle 3 (~125°)
- Low-light performance: Night Eagle 3 (best) > Caddx Ratel 2 > OV5640 module > Sonew lens (depends on sensor)
- Resolution/identification detail: OV5640 (5MP stills/1080p video) > Night Eagle 3 (1500TVL) > Caddx (1200TVL) > Sonew (lens only; depends on camera sensor)
- Ease of deployment: Sonew (drop-in lens for M12 boards) > Caddx (compact camera) > OV5640 (module integration required) > Night Eagle 3 (compact but may need mounting/housing)
- Best overall pick: For most surveillance-focused builds that demand low-light reliability and good dynamic range, the Night Eagle 3 earns our top recommendation due to its starlight sensor and excellent night detail.
Alternatives that excel in specific areas:
- Best budget wide coverage: Sonew 1.8mm fisheye lens — unmatched for whole-room coverage at low cost.
- Best value for DIY builders needing resolution: OV5640 5MP module — balances high-resolution stills and embedded-system compatibility.
- Premium low-light & HDR: Caddx Ratel 2 — excellent for surveillance where mixed lighting is common.
Final recommendations
- If you need maximum coverage on a tight budget (single-camera ceiling view), choose the 180° fisheye lens — pair it with any compatible 1/3" or 1/4" board camera for ceiling-mounted coverage.
- If you are building a custom, high-detail system (smart home or IoT), the OV5640 5MP module offers the best balance of resolution, price, and developer-friendly interfaces.
- If low-light and dynamic range are your top priorities for critical surveillance points, pick the Caddx Ratel 2 or, for the very best night sensitivity in a compact package, the Night Eagle 3 (our Editors Choice).
These recommendations are based on hands-on comparison of optics, sensor behavior, and real-world performance patterns combined with expert and consumer feedback. Match the product to your scenario — wide coverage, DIY integration, or nighttime clarity — and you’ll get the best results from your surveillance installation.
