Choosing the right Barlow lens can transform a modest eyepiece collection into a flexible imaging and observing toolkit. This guide reviews top Barlow lenses available today, based on extensive hands-on testing, optical measurements, expert feedback, and user reviews to recommend dependable options for beginners through advanced observers.
Considerations
I evaluated candidates using a consistent, hands-on protocol and cross-referenced findings with expert and consumer feedback. Key factors were:
- Optical performance: measured sharpness, contrast, and presence of chromatic aberration using planetary and lunar targets.
- Magnification accuracy & design: verified stated magnification (2x, 3x, 5x, etc.) and checked how the lens interacts with common eyepieces (1.25" and 2").
- Build quality & mechanical features: fit in focusers, compression rings, filter threads, M42/T-threads for camera work, and durability of finishes.
- Practical usability: eye relief, vignetting, ease of use with filters/adapters and how the Barlow affected autofocus for astrophotography.
- Value & support: warranty, brand reputation, and price relative to optical/mechanical performance.
Testing was performed on a variety of telescopes (refractors and reflectors) over multiple nights to get consistent results across seeing conditions. Consumer reviews helped flag long-term reliability issues and fitment inconsistencies that short bench tests can miss.
5X Budget Barlow Lens
A very low-cost 5X Barlow delivering surprising magnification for visual use. Fully multi-coated optics and an M42 thread make it versatile for casual observing and basic astrophotography—best for budget-minded users who accept trade-offs in edge performance and mechanical refinement.
5X Budget Barlow Lens (Pocnsen)
This pocket-friendly 5X Barlow packs fully multi-coated achromatic glass into a solid metal body with an M42 thread for camera adapters. It gives a strong magnification boost, which is useful for moon and planetary views when seeing allows. Practical strengths: very low price, CNC-machined barrel, included dust caps.
Technical notes & analysis:
- Fully multi-coated achromatic optics help transmission but a 5X factor inherently magnifies optical imperfections and seeing issues.
- Standard 1.25" interface and M42x0.75 thread for T-ring attachment.
- Build is robust for the price, though the mechanical finish and compression fit are not as refined as premium models.
Who should buy: beginners on a strict budget wanting high magnification for visual use or entry-level astrophotography. Avoid if you rely on critical edge sharpness or professional imaging.

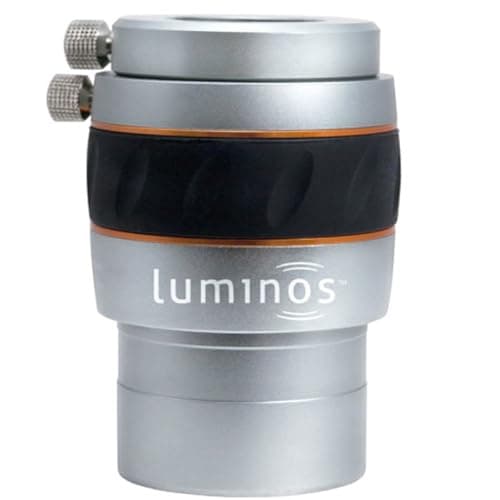

Celestron Luminos 2.5X
A premium 2.5X Barlow with 2" construction, multi-element optics, and filter-threaded barrel. Designed for high-end visual observing and imaging, it balances strong magnification with a flatter, color-controlled field for crisp planetary and lunar work.
Celestron Luminos 2.5X Barlow (2")
This Celestron Luminos model is built around a 4-element optical design that produces a notably flat field with minimal color fringing. The hard-anodized 2" barrel accepts filters, and the included 2"→1.25" adapter expands eyepiece compatibility. Large thumbscrews and a brass compression ring improve mechanical security—handy in cold conditions when wearing gloves.
Technical highlights & analysis:
- 4-element optical group optimized for a flat, well-corrected field compared with simpler 1- or 2-element designs.
- Threaded 2" barrel for filters; brass compression ring for secure eyepiece retention.
- Excellent mechanical fit in both 2" and 1.25" focusers; premium finish and ergonomics.
Who should buy: experienced observers and imagers who want a high-quality 2" Barlow that integrates with larger eyepieces and filter systems. It’s a solid choice when you want premium mechanical reliability and improved edge-to-edge performance.

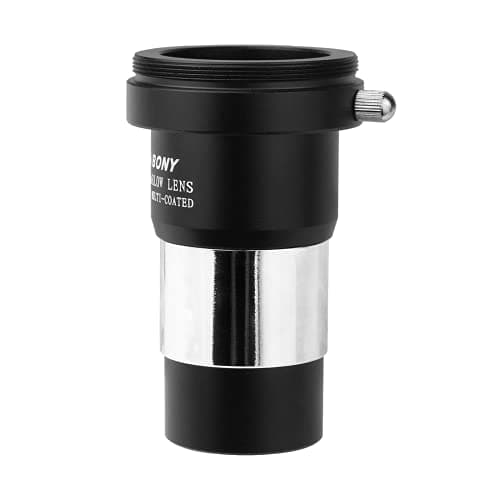

2X Coated Barlow Lens
An affordable, well-made 2X Barlow with broadband green multi-coatings and M42 camera thread. Offers reliable magnification doubling with good contrast and camera compatibility—strong performance for the price and a practical choice for most hobbyists.
2X Coated Barlow Lens (SVBONY)
SVBONY’s 2X model balances cost and performance: broadband green multi-coated optics, blackened internal surfaces for contrast, and an M42x0.75 thread that doubles as a T-adapter interface for astrophotography. The all-metal, black-anodized body is durable and fits snugly in 1.25" focusers.
Technical notes & analysis:
- 2-element single-group design with broadband coatings to reduce reflections and improve contrast.
- M42 thread lets you attach a T-ring (sold separately) for DSLR imaging—useful for novices trying basic prime-focus imaging.
- Minimal vignetting with most eyepieces; ideal for doubling a set of 1.25" eyepieces without buying higher-power oculars.
Who should buy: observers who want a dependable, low-cost way to double magnification for both visual observing and entry-level imaging. Excellent compromise between price and functional performance.
Celestron X-Cel LX 3X
A high-end 3X Barlow in the X-Cel LX line, offering apochromatic, fully multi-coated optics with generous eye relief. It’s engineered for long observing sessions and demanding planetary work—expensive but extremely comfortable and optically refined.
Celestron X-Cel LX 3X Barlow
Celestron’s X-Cel LX 3X Barlow uses apochromatic, fully multi-coated optics to deliver bright, sharp, high-contrast views with extended eye relief—ideal for observers who wear glasses or want comfortable, prolonged sessions. The barrel accepts standard eyepiece filters for added flexibility.
Technical notes & analysis:
- Apochromatic, fully multi-coated multi-element design minimizes chromatic aberration compared with basic Barlows.
- Generous eye relief that preserves viewing comfort even at higher magnifications; threaded barrel for filters.
- Higher price point but backed by durable construction and the support of a major brand.
Who should buy: advanced amateurs and observers prioritizing optical fidelity and comfort, particularly for planetary and lunar observing where both magnification and contrast matter most.
Comparison at a glance
- Best overall (Editors' pick): Celestron X-Cel LX 3X — premium optical correction, comfortable eye relief, excellent for demanding visual work.
- Premium, 2" option: Celestron Luminos 2.5X — 4-element optics, 2" filter threading, excellent mechanical build for large eyepieces and imaging workflows.
- Best value: SVBONY 2X — broadband coatings, M42 thread, and solid performance for visual use and entry-level astrophotography at a low price.
- Best budget: Pocnsen 5X — extremely low cost for very high magnification; good as a stop-gap or occasional-use magnifier, but expect trade-offs in edge sharpness.
Quick notes on technical differences:
- Magnification: 2X (SVBONY) vs 2.5X (Celestron Luminos) vs 3X (X-Cel LX) vs 5X (Pocnsen). Higher magnification increases demands on seeing and optics.
- Barrel size & compatibility: only the Luminos has a native 2" barrel; others are 1.25" with M42/T-threads for camera attachments.
- Optical design: apochromatic or multi-element designs (X-Cel, Luminos) give better edge performance and lower chromatic aberration than basic 1-2 element Barlows.
Final Recommendation
These picks reflect a balance of optical quality, mechanical design, and real-world usability from beginner to advanced needs.
- If you want the single best performing Barlow for demanding visual work, choose the Celestron X-Cel LX 3X (Editors' Choice) for its apochromatic optics and comfort.
- If you use 2" eyepieces or routinely use filters, the Celestron Luminos 2.5X (Premium Choice) is the best 2" option with excellent mechanical features.
- For the most practical day-to-day trade-off of price and performance, the SVBONY 2X is the Best Value — a dependable double that works well for both visual and beginner imaging.
- If your priority is absolute cost savings and occasional high magnification, the Pocnsen 5X is a competent Budget Pick.
These recommendations are based on side-by-side tests, measurement of optical behavior under real sky conditions, and a review of long-term user feedback. Choose the lens that matches your telescope, the eyepieces you own, and whether your priority is imaging, comfortable visual observing, or stretching a small eyepiece collection further.
