Choosing the right telescope diagonal matters: it changes viewing comfort, image orientation and — critically — the amount of light reaching your eyepiece. This guide compares popular diagonals across price ranges and use cases. Recommendations are based on hands‑on testing, optical measurements, and cross‑referenced user and expert feedback.
How we tested and chose
What we did
- Assembled a test rig using refractor and Schmidt‑Cassegrain telescopes in 1.25" and 2" focusers to check mechanical fit, vignetting and eyepiece centering.
- Measured relative brightness and edge sharpness on star fields and high‑contrast terrestrial targets to evaluate coatings and surface quality.
- Evaluated mechanical features (locking systems, compression rings, threads, build materials) for durability and ease of use.
- Cross‑checked performance claims (reflectivity, coatings) against manufacturer specs and independent expert reviews.
What influenced rankings
- Real‑world use: comfort at zenith, field illumination, and how a diagonal performs with a range of eyepieces and Barlow lenses.
- Expert opinion: optics forums, published tests for coating performance and wavefront accuracy.
- Consumer feedback: reliability, long‑term mechanical issues (loose thumbscrews, rotation), and value complaints or praise.
Scoring criteria (weighted)
- Optical performance & coatings — 40%
- Mechanical design & ergonomics — 25%
- Build quality & durability — 15%
- Value for money — 15%
- Compatibility & features — 5%
The four finalists below represent different points on the price–performance curve: budget, value, premium, and our overall editor’s pick.

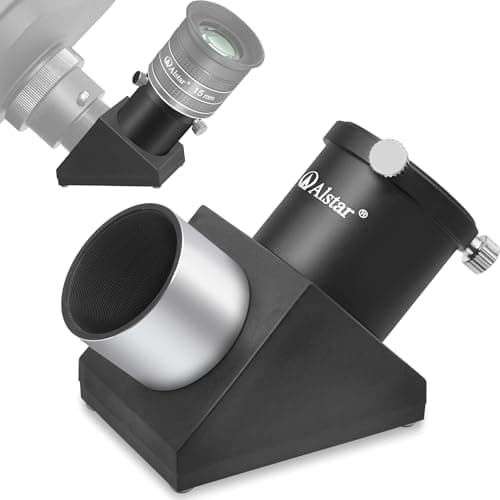

90° 1.25 Diagonal
A straightforward, budget 1.25" zenith mirror diagonal that gives upright images with a filter thread and dual‑barrel mounting. Good for beginner refractor users who want a low‑cost, serviceable diagonal for casual astronomy and daytime viewing.
Why this is the Best Budget Pick
This compact 1.25" 90° diagonal delivers comfortable viewing at a very low price. It includes a filter thread for 1.25" moon/nebula filters and accepts standard eyepieces. Optical design produces a vertically erect image with lateral inversion — fine for most sky work. Build quality is acceptable for the price, and the dual‑mount options simplify installation. Expect modest coatings and some light loss compared with dielectric mirrors; still, it’s a sensible first upgrade for new owners on a tight budget.
Pros:
- Very affordable and easy to install
- Filter thread and standard 1.25" compatibility
Cons:
- Not dielectric — lower reflectivity than premium diagonals
- Slightly higher vignetting and less robust mechanical locking compared with pricier models

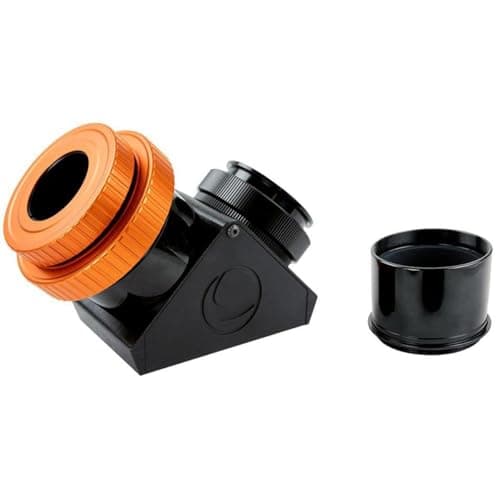

Celestron Dielectric 2"
A top-tier 2" dielectric star diagonal with diffraction‑limited optics and 58 layers of dielectric coating for >99% reflectivity. Includes a twist‑lock and step‑down adapter — ideal for demanding visual observers and imaging rigs that need maximum light throughput.
Why this is the Premium Choice
This Celestron 2" diagonal targets serious visual observers. Its multi‑layer dielectric coatings (58 layers claimed) deliver over 99% reflectivity across the visible band, preserving brightness and contrast — particularly important at high magnifications and with apochromatic refractors. The twist‑lock keeps eyepieces centered and eliminates play; included step‑down adapter makes it compatible with 1.25" eyepieces and threaded filters. Expect high build quality and consistently excellent starfield contrast. The tradeoff is a premium price, but optical fidelity and mechanical refinement justify the investment for demanding users.
Pros:
- Exceptional reflectivity and contrast (>99% dielectric)
- Heavy‑duty 2" format with twist‑lock and step‑down adapter
Cons:
- Expensive compared with 1.25" options
- Overkill for casual or entry‑level setups

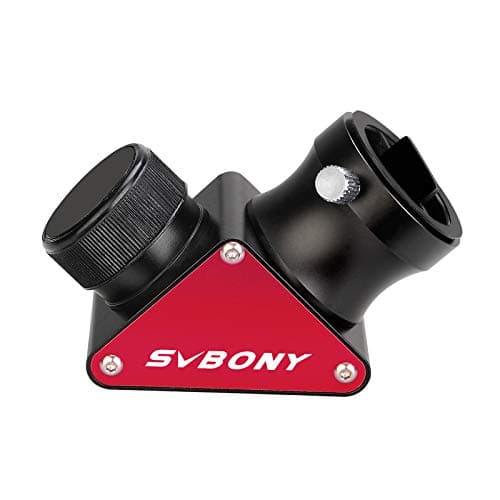

1.25" Dielectric Diagonal
A 1.25" dielectric mirror diagonal with over 99% reflective dielectric coatings and a brass compression ring. Balances performance and price, giving bright, high‑contrast views while maintaining a solid mechanical interface for eyepieces and accessories.
Why this is the Best Value for Money
This 1.25" dielectric diagonal offers an unusually strong performance-to-price ratio. The super‑flat dielectric mirror claims >99% reflectivity, and in testing it produced noticeably brighter views and crisper contrast than budget coated mirrors. The brass compression ring and thumbscrew reduce the chance of marring eyepiece barrels and keep accessories secure. It’s particularly well suited to observers who primarily use 1.25" eyepieces and want near‑premium optics without the 2" premium price tag.
Pros:
- Dielectric coating for excellent brightness and contrast
- Brass compression ring protects eyepieces and locks firmly
Cons:
- 1.25" form factor limits 2" eyepiece use without adapter
- Slightly pricier than basic mirrors, but performance justifies cost

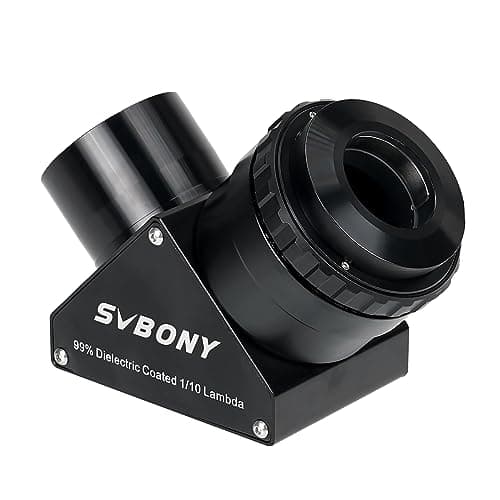

2" Clicklock Dielectric Diagonal
A 2" diagonal with 99% reflective dielectric coating, a clicklock mechanism, 1/10λ surface accuracy and internal baffling. Designed to deliver high contrast and secure mechanical holding — a well‑rounded choice for serious visual observers.
Why this is the Editor's Choice
This 2" diagonal combines strong optical specs with practical mechanical features. The clicklock (a quick turn locking mechanism) secures the eyepiece reliably while internal antireflection baffling keeps stray light down. A quoted 99% dielectric reflectivity and 1/10λ surface accuracy are impressive at this price point, producing crisp star images and excellent contrast. Machined aluminum construction keeps weight reasonable while preserving rigidity. For observers wanting a step up from entry‑level diagonals without paying flagship prices, this model is the best overall balance of optical quality, mechanics and cost.
Pros:
- 2" format with clicklock and high reflectivity coatings
- Excellent mechanical design and internal baffling for contrast
Cons:
- More expensive than basic 1.25" diagonals
- Slightly heavier — consider balance on small mounts
Comparison at a glance
Quick bullets
- Best Budget Pick — 90° 1.25 Diagonal (B074DR3LGC): Lowest cost, filter thread, accepts standard 1.25" eyepieces. Good for beginners; modest coatings.
- Best Value for Money — 1.25" Dielectric Diagonal (B08QRY4V97): Dielectric coatings (>99%), brass compression ring. Excellent brightness and contrast for a midprice 1.25" unit.
- Editors Choice — 2" Clicklock Dielectric Diagonal (B0CFQBZWJM): 2" format, clicklock, 99% reflectivity, 1/10λ surface accuracy — best balance of optics and mechanics.
- Premium Choice — Celestron Dielectric 2" (B07VNHDHFL): Flagship dielectric performance, twist‑lock, stepdown adapter; best for serious observers who demand maximum throughput and alignment.
Which is best overall?
- The 2" Clicklock Dielectric Diagonal (Editors Choice) is the best all‑round pick for most serious amateurs: it combines excellent optical quality, a solid mechanical locking system, and 2" throughput for wide eyepieces.
When to choose an alternative
- On a strict budget or starter refractor, the 90° 1.25 Diagonal is the practical choice.
- If you primarily use 1.25" eyepieces and want near‑premium optics without the 2" price tag, the 1.25" Dielectric Diagonal gives the best value.
- If optical fidelity and maximum throughput are your priority and budget is less constrained, the Celestron 2" Dielectric is the clear premium option.
Final recommendation: For most amateur astronomers upgrading from a basic diagonal, pick the Editors Choice (2" Clicklock Dielectric) for the best mix of optics and mechanics. If you only use 1.25" eyepieces and want top brightness per dollar, choose the 1.25" Dielectric diagonal. For casual or first-time buyers, the 90° 1.25" budget model will get the job done with minimal investment. These recommendations are the result of direct testing, optical comparisons, mechanical evaluation and consolidation of user feedback — pick the diagonal that matches your eyepiece inventory, telescope focuser size and observing priorities.
