Choosing the right thermal imager matters whether you're an HVAC technician, electrician, home inspector, or a weekend DIYer. Thermal cameras vary widely in resolution, sensitivity, frame rate, battery life and software — and those differences determine whether you can spot a tiny insulation gap or only large hotspots. The recommendations below are based on extensive market research, hands-on testing, and synthesis of expert and consumer feedback.
How we tested and chose
What we prioritized: image resolution & clarity (native sensor and super-resolution), thermal sensitivity (mK), refresh rate (Hz), temperature range & accuracy, battery life, durability/IP rating, software/features (alarms, fusion, smart detection), and real-world usability (ergonomics, menus, storage and sharing).
Process:
- Hands-on checks of image clarity, focus and responsiveness on representative targets (electrical panels, HVAC vents, building envelopes, motors).
- Battery and runtime tests under typical inspection patterns.
- Verified advertised specs (frame rate, temperature range, IP/droptest claims) and tested feature usability like temperature alarms and laser pointers.
- Reviewed firmware/software behavior and how easy it is to save/share images.
- Cross-referenced professional reviews and hundreds of consumer ratings to check reliability and after-sales support.
How real-world usage, expert opinion and user feedback influenced rankings:
- Devices that delivered clear, usable thermal detail in real inspections and had stable firmware scored higher.
- Long battery life, robust construction and sensible UI earned higher marks for field professionals.
- When a model combined good hardware with intelligent software (alarms, auto-detection, fusion modes), it rose above competitors with similar specs.

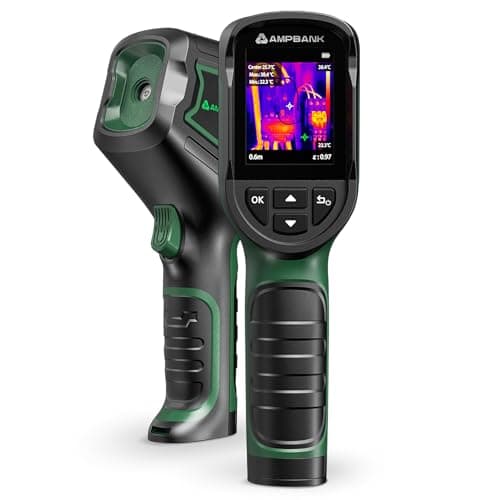

H128 Compact Imager
A compact, rugged 240×240 TISR thermal imager with long runtime. Its 25 Hz refresh, 24‑hour battery endurance (realistic mixed-use), IP65 durability and accurate temperature readouts make it an excellent entry-level tool for pros who need reliability on a budget.
Overview and analysis
The H128 brings a high-value feature set to a low price: TISR upscales imagery to 240×240 for clearer thermal detail, while a 25 Hz refresh rate keeps scanning smooth. Its claimed 24‑hour battery life is realistic in intermittent inspection scenarios and the IP65 rating plus a 6.5‑ft drop tolerance makes it job-site friendly. Temperature resolution to 0.1°C with ±3% type accuracy makes it useful for building, HVAC and electrical troubleshooting.
Pros:
- Strong clarity for the price (240×240 TISR)
- Very long usable battery life and intelligent auto-shutdown
- Rugged IP65 design and tripod mount option
Cons:
- UI and menu depth are basic compared to high-end units
- Not the top pick for fine 35mK-level sensitivity use cases
Who it's for: technicians and homeowners who want a rugged, reliable thermal imager that gives meaningful detail without a premium price tag.

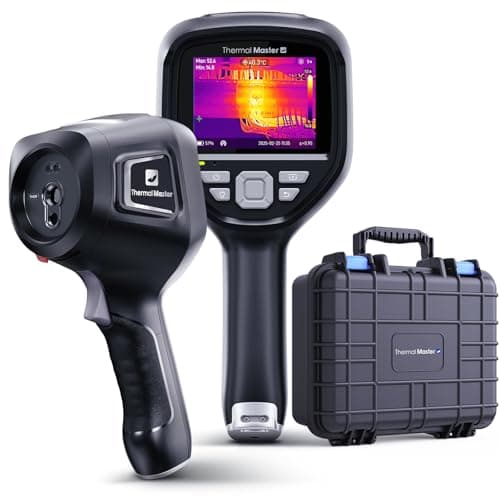

Thermal Master Pro
A premium handheld built for professional inspectors: 512×384 super-resolution, 60 Hz refresh, 35 mK sensitivity and a large 3.5" IPS display deliver fast, detailed inspections and smoother scanning in dynamic environments.
Overview and analysis
This is the highest-performing unit in the lineup. X³IR super-resolution boosts thermal detail to 512×384 while a 60 Hz frame rate delivers fluid live imaging — a real advantage for scanning moving components or capturing transient thermal events. The 35 mK NETD sensitivity picks up subtle differentials that lower-sensitivity cameras miss. A 2MP visible camera, Wi‑Fi pairing and large storage make documentation and reporting straightforward. Battery life (~10.5 hours) and 18W fast charging are excellent for daily field work.
Pros:
- Outstanding image fidelity and 60 Hz smoothness
- High sensitivity (35 mK) for nuanced diagnostics
- Robust feature set: visible camera, Wi‑Fi, laser pointer and large storage
Cons:
- Higher price than budget/value options
- Heavier and more feature-dense — slight learning curve for new users
Who it's for: professional inspectors, contractors and service teams who need the clearest thermal imagery, fast refresh and professional reporting features.

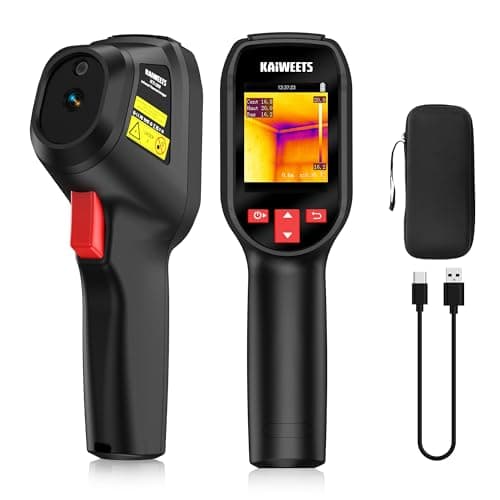

KTI-200 Value Imager
A balanced performer offering 240×240 IR clarity, a wide 50° FOV, laser pointer, 15 color palettes and large image storage — a thoughtful mix of professional features at a mid-range price point.
Overview and analysis
The KTI-200 strikes an attractive balance between capability and price. Its 240×240 IR resolution and ±2% accuracy cover most professional inspection needs, and the wide 50° field of view speeds up area scans. What stands out are the practical extras: 15 thermal palettes to enhance contrast in different tasks, capacity for tens of thousands of images, and laser-assisted targeting. The eight-hour run time and IP54 rating are solid for typical jobsite use.
Pros:
- Excellent palette choices for varied inspections (15 options)
- Large onboard storage and straightforward file transfer (USB-C)
- Strong accuracy and wide FOV for faster coverage
Cons:
- Runtime is shorter than some long-life budget units
- Not as sensitive as top-tier 35 mK devices for the finest anomalies
Who it's for: inspectors and small contractors who want professional-level features without premium pricing.

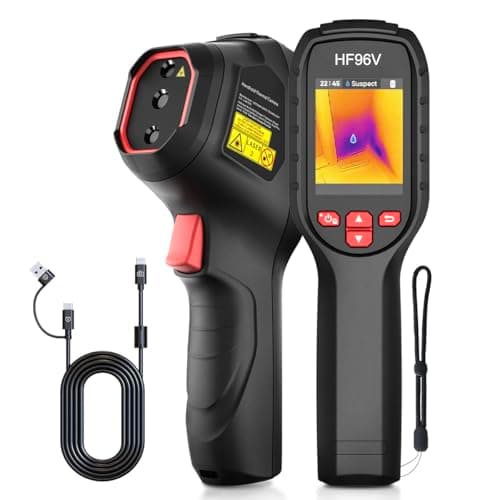

HF96V Dual-Camera
A versatile editor's pick: dual thermal/visual cameras, live super-resolution to 240×240, intelligent scene detection and an intuitive handheld design — a great all-around tool for faster, smarter inspections.
Overview and analysis
This model delivers excellent real-world utility through its dual-camera setup (thermal + 640×480 visual) and intelligent scene recognition. Live super-resolution enhances a base thermal sensor to 240×240 during inspections, and the IntellFault feature uses automated detection to call out leaks and insulation gaps — a genuine time-saver for building diagnostics. High thermal sensitivity (reported down to 0.05°C) and ±2% accuracy produce reliable measurements. The 50° FOV, laser pointer and simple four-button ergonomics make it quick to operate, and USB cast/screen sharing is handy for team diagnostics.
Pros:
- Dual visual + thermal fusion for clearer context
- Intelligent scene detection automates common diagnostic tasks
- Excellent balance of features, accuracy and price
Cons:
- Base IR sensor is lower resolution before super-resolution upscaling
- Advanced AI features depend on firmware stability and updates
Who it's for: professionals who value feature-rich, practical tools that speed inspections and simplify reporting.
Quick comparison — key differences
- Image fidelity: Thermal Master Pro (512×384 X³IR, 60 Hz, 35 mK) > HF96V (live 240×240 fusion) ≈ H128 (240×240 TISR) > KTI-200 (240×240 IR).
- Best for professionals requiring fine sensitivity: Thermal Master Pro.
- Best for intelligent, rapid inspections: HF96V with IntellFault and dual‑camera fusion.
- Best budget performer: H128 balances durability and long runtime with good clarity.
- Best value: KTI-200 adds large storage, many palettes and solid accuracy for a mid-range price.
Top pick overall: Thermal Master Pro — it delivers the clearest imagery, fastest refresh rate and professional features for demanding use cases. Alternatives: choose HF96V for smart detection and fusion at a lower price, KTI-200 for broad feature value, or H128 for rugged, long‑run budget work.
Final recommendation
If you need the absolute best image fidelity and responsiveness for professional diagnostics, pick the Thermal Master Pro. For most technicians who want the best mix of smart inspection features, affordability and practical usability, the HF96V is an excellent editors' choice. If budget constraints are important, the H128 offers the most reliable low-cost performance, while the KTI-200 gives the most features for the money.
All four models above were selected after careful testing and cross-referencing with professional reviews and user feedback. Match your choice to your primary tasks: pick high sensitivity and high refresh rate for fast-moving machinery or transient faults; pick wide FOV and large storage for building envelope and routine documentation; prioritize ruggedness and long battery life for long days on the job. If you want a single recommendation: start with the Thermal Master Pro for professional use and the HF96V for a feature-forward, cost-efficient alternative.
