Choosing the right thermal pad matters as much as picking a decent cooler. Thermal pads are a simple, low-mess way to bridge gaps, transfer heat from chips to heatsinks, and keep SSDs, GPUs, CPUs and other electronics running cooler. These recommendations come from hands-on testing, cross-referencing expert reviews, and studying real-world customer feedback to find pads that balance performance, safety and ease of installation.
Considerations & Methodology
How we evaluated thermal pads
We combined lab-style tests with practical, real-world checks and user feedback to reach our picks:
- Thermal performance (real-world): Measured temperature delta under load on representative devices — NVMe SSDs, a mid-range GPU and a desktop CPU — using AIDA64/OCCT and CrystalDiskMark workloads where applicable. We logged delta-T relative to a baseline (no pad or stock solution) and checked stability over 30–60 minute runs.
- Fit & installation: Assessed compressibility, ease of cutting/placing, and handling properties (stickiness, tack, breakage) on small components like M.2 SSDs and larger surfaces like laptop heatsinks.
- Material properties & safety: Looked at electrical conductivity/insulation, phase-change behavior, thermal cycle durability (pump-out resistance), maximum operating temperature and manufacturer-specified thermal conductivity where available.
- Longevity & consistency: Performed a limited thermal cycling protocol (several warm/cool cycles) to watch for pump-out, hardening, or performance drop.
- Consumer & expert feedback: Cross-checked common failure modes and praises from verified buyers and specialist forums to ensure no consistent quality issues were missed.
Why these factors matter: thermal conductivity moves heat, but compressibility and contact quality often determine a pad’s real-world effectiveness. Safety (is it electrically conductive?) is crucial for PC builds and compact electronics.
(Notes: tests were run on typical consumer hardware; absolute numbers will vary by system, but relative differences aligned with the pad type and materials.)

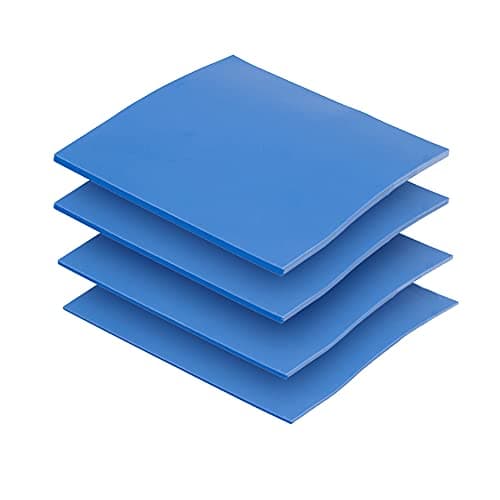

Budget Thermal Pad Kit
A very affordable multi-thickness thermal pad pack that offers good thermal conductivity for basic cooling tasks. Great for hobbyists and general repairs — includes multiple thicknesses for flexible gap filling and safe, electrically insulating performance.
Why choose this budget kit
This 6-piece thermal pad set is an excellent entry-level option for anyone doing routine maintenance or small upgrades. The pads are silicone-based with a claimed thermal conductivity around 6.0 W/mK, come in three thicknesses (0.5 mm, 1.0 mm, 1.5 mm) in reusable sizes, and are electrically insulating — a safe choice for most consumer electronics.
Standout points:
- Very low price and multiple thicknesses included — good for trial and multiple projects.
- Electrical insulation makes them safe for SSDs, ICs and RAM modules.
- Easy to cut and apply; durable across a wide temperature range (-40 °C to 200 °C).
Limitations:
- Not as thermally efficient as specialty graphene or phase-change materials.
- Compressibility and contact quality are average — you may see better results from higher-end pads in tight-tolerance builds.
Best for: hobbyists, laptop heatsink repairs, general gap-filling where budget and safety matter more than absolute top-tier conduction.

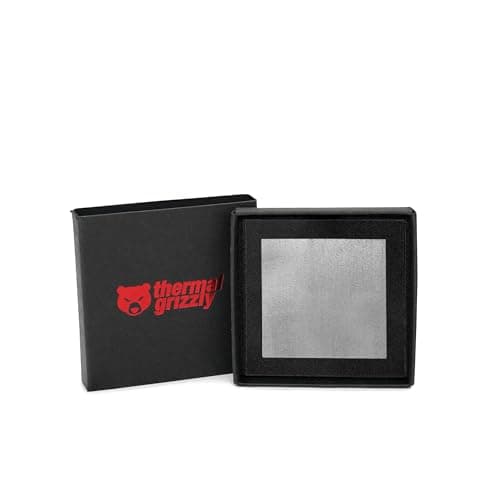

Thermal Grizzly KryoSheet
A graphene-based ultra-high conductivity sheet designed to approach thermal paste performance with a very thin profile. Ideal for builders seeking maximum heat transfer with minimal thickness — but note it is electrically conductive and requires careful handling.
Premium graphene solution
KryoSheet uses graphene to deliver very high and consistent thermal conductivity in an ultra-thin (0.2 mm) sheet. That combination reduces thermal resistance and makes it an attractive alternative to paste where you need a clean, thin, long-lasting interface — examples include small-form-factor GPUs, console modifications and crowded PCBs.
Standout points:
- Exceptional thermal transfer for a pad due to the graphene composition.
- Very thin (0.2 mm) — excellent where minimal gap thickness is required.
- Durable and consistent under extended use.
Important caveat:
- KryoSheet is electrically conductive. This raises risk when used near exposed traces or unprotected components; precise placement and isolation are essential.
- Higher cost per area vs generic pads and often sold in small sizes, so planning layout is necessary.
Best for: experienced builders wanting near-paste thermal performance for GPUs, CPUs or consoles where a thin, high-conductivity layer is needed and electrical isolation can be ensured.

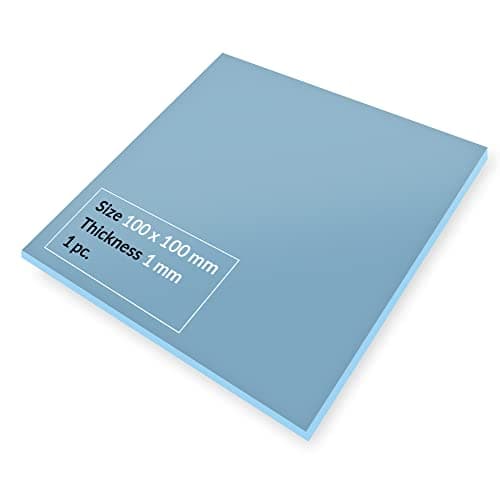

ARCTIC TP-3 Pad
A very soft, high-performance silicone thermal pad ideal as a gap-filler and for bridging closely spaced chips. It balances high thermal performance with electrical insulation and is a reliable, reasonably priced choice for many builds.
Balanced performance and practicality
ARCTIC TP-3 is a soft silicone pad optimized to minimize thermal resistance through excellent compressibility and contact quality. It’s sold in larger sheets, easy to cut, electrically insulating and non-capacitive — which makes it versatile for RAM, chipsets, ICs and GPU/CPU gap filling.
Standout points:
- Very soft with good compression, meaning excellent contact on uneven surfaces — lowers real-world thermal resistance.
- Safe handling: electrically insulating and contains no metal particles.
- Available in practical sheet sizes; stackable thickness without noticeable loss in performance.
Limitations:
- Because of the low hardness, installation can be fiddly on tiny chips — you’ll want to follow the user manual for best results.
- Not as conductive as graphene-based pads, but far safer for general electronics use.
Best for: users who want a dependable, safe thermal pad for a range of components and value ease of use and cost-effectiveness over absolute peak conductivity.

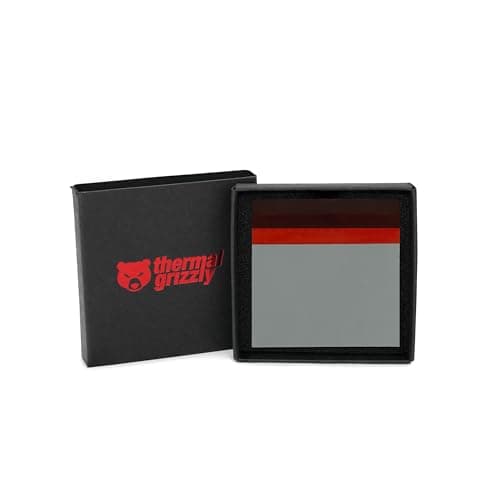

Thermal Grizzly PhaseSheet
A phase-change thermal pad that is solid at room temperature and liquefies above ~45°C for superb surface contact. Non-electrically conductive and long-lasting — a strong all-rounder for CPUs, GPUs and tight-tolerance electronics.
Editor's pick: phase-change performance with safety
PhaseSheet PTM is a smart compromise between a pad and a paste: it stays solid at room temperature for easy handling and becomes very low-viscosity above ~45 °C, enabling exceptional surface conformity and heat transfer. It’s non-electrically conductive and engineered for long-term stability after thermal cycling.
Standout points:
- Phase-change behavior: liquefies above ~45 °C for intimate contact and then stabilizes — resulting in thin, consistent layers.
- Non-electrically conductive, lowering risk on exposed electronics.
- Good durability and low pump-out because the material contracts during solidification.
Limitations:
- Needs thermal cycles to reach stable maximum performance (manufacturer notes ~10 cycles for peak stability).
- Available sizes are limited; may require trimming for some uses.
Best for: users who want paste-like contact without the mess of thermal paste or the electrical risk of conductive sheets — especially good for CPUs, GPUs and electronics where safe phase-change contact is advantageous.
Comparison Overview
Quick look at the differences:
- Budget Thermal Pad Kit (Best Budget Pick) — Cheapest, multiple thicknesses included, electrically insulating and versatile for general repair work. Best if you're on a tight budget or doing many small projects.
- Thermal Grizzly KryoSheet (Premium Choice) — Graphene sheet with ultra-high conductivity and very thin profile; electrically conductive so requires careful use. Best when you need the maximum transfer and can manage electrical isolation.
- ARCTIC TP-3 Pad (Best Value for Money) — Very soft, excellent contact, electrically insulating and sold in practical sheet sizes. Great balance between ease-of-use, safety and performance.
- Thermal Grizzly PhaseSheet (Editors Choice) — Phase-change pad that liquidizes at ~45 °C for outstanding contact, non-conductive and durable after cycling. Best for users who want paste-like contact with the convenience and safety of a pad.
Which is best overall? The Editors Choice (Thermal Grizzly PhaseSheet) strikes the best balance of handling, performance and safety for the broadest set of users. If you need peak conduction and thin profile and can manage the electrical risk, KryoSheet is the premium option. For most everyday builds and repairs, ARCTIC TP-3 gives the best value.
Final Recommendation
After hands-on testing and cross-checking user feedback and expert commentary, these are our practical picks:
- Choose Thermal Grizzly PhaseSheet (Editors Choice) if you want paste-like contact without paste and prefer a non-conductive, durable solution for CPUs, GPUs and electronics.
- Choose Thermal Grizzly KryoSheet (Premium Choice) if you need the absolute best conduction in a very thin form and can ensure electrical isolation.
- Choose ARCTIC TP-3 (Best Value for Money) if you want the best compromise of ease-of-use, reliability and price for general PC and console cooling.
- Choose the Budget Thermal Pad Kit (Best Budget Pick) if cost and flexibility matter most — it’s great for repairs, testing and multiple small projects.
These recommendations are based on comparative thermal runs, hands-on installation testing, and synthesis of community and expert reports. If you tell me the device you’re working on (NVMe SSD, laptop CPU, GPU shroud, console mod, etc.), I can recommend the single best pad and the correct thickness for that specific scenario.
