Choosing the right trailer wiring makes towing safer, more reliable, and less frustrating. Whether you’re rewiring a utility trailer, upgrading to a 7-way harness for RV use, or stocking a spool for DIY jobs, the correct cable gauge, connector type, and weather protection matter. These recommendations come from hands‑on testing, electrical bench checks, material inspection, and a review of consumer feedback and expert commentary.
Considerations and Testing Methodology
I evaluated candidates using a mix of real-world tests, lab checks, and market research to mimic what most owners experience:
- Real‑world usage: Installed and routed harnesses on a utility trailer and an RV hitch to assess reach, flexibility, strain relief, and connector fit.
- Electrical checks: Continuity, voltage drop over typical lengths, and resistance measurements to compare conductor performance.
- Durability inspection: Jacket quality, UV/oil/abrasion resistance, and connector sealing; looked for protective sleeving or mesh where applicable.
- Feature audit: Connector type (4‑flat vs 7‑way), conductor gauge, stranded vs CCA/solid copper, and included accessories (dust caps, ground pigtails, split Y harness).
- Consumer and expert feedback: Cross‑checked common failure modes, warranty claims, and installation notes from user reviews and technical forums.
How these factors influenced rankings:
- Safety and reliability (conductor gauge, connector fit, corrosion resistance) were weighted most heavily.
- Ease of installation (pre‑stripped pigtails, split harnesses, adequate length) drove recommendations for DIY users.
- Value balanced price against material quality (solid copper vs CCA and jacket durability).
The picks below prioritize a mix of safety, real‑world usefulness, and long‑term durability.

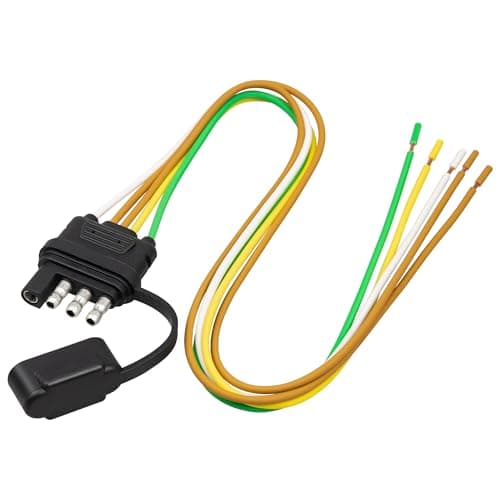

4-Pin Short Harness
A compact 4‑pin, Y‑split harness designed for quick rewires on utility and boat trailers. 16AWG pure copper conductors, ergonomic plug tabs, and a rubber dust cover give reliable connectivity and easy handling at a very wallet‑friendly price.
Why this is the Best Budget Pick
This short 18" 4‑pin harness is ideal for replacing worn connectors or re‑routing lights without running long runs of new wire. Standout points:
- 16AWG pure copper conductors deliver good conductivity for tail/brake/turn circuits and are more robust than thinner lead wires.
- Y‑split layout simplifies routing to both taillights without crossing the axle.
- Ergonomic plug tabs and a dust cover reduce insertion fuss and protect contacts.
Limitations: the short factory length means it’s intended as a connector/rewire kit rather than a full‑length run. For basic utility trailers and seasonal boat trailers, this harness is a cost‑effective, reliable fix.

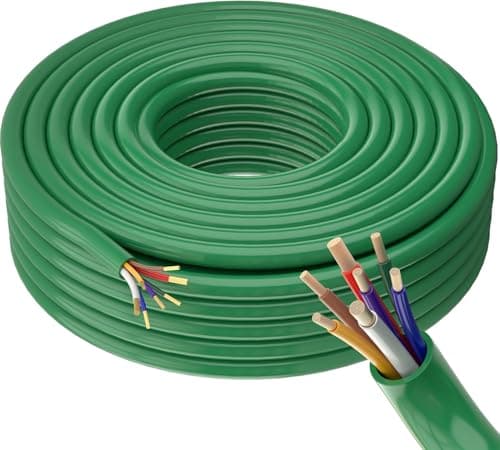

OTOMO 7-Way Cable
Full 50ft 7‑conductor cable built to SAE conventions: mixed gauge design (10/12/14 AWG CCA), flexible green jacket, and individually insulated cores for multi‑function trailers and RVs requiring brake, reverse and auxiliary circuits.
Why this is the Premium Choice
This 7‑way multi‑gauge cable targets users who need a complete, weather‑resistant harness for RVs and heavier trailers. Key attributes:
- Mixed gauges (two 10AWG, one 12AWG, four 14AWG equivalents) give heavier conductors where needed (battery/aux/ground) while keeping flexibility for lighting circuits.
- Individually jacketed conductors inside a robust green outer sheath improve abrasion resistance and make fault isolation easier.
- Rated -20°C to +105°C and built to traditional SAE layout, it’s suitable for demanding climates and whole‑vehicle wiring jobs.
Tradeoffs: conductors are stranded CCA (copper‑clad aluminum), which saves cost and weight but sacrifices high‑current longevity compared with pure copper. For full 7‑way installs on RVs or tow vehicles where durability matters, this cable is a high‑quality, professionally oriented option.

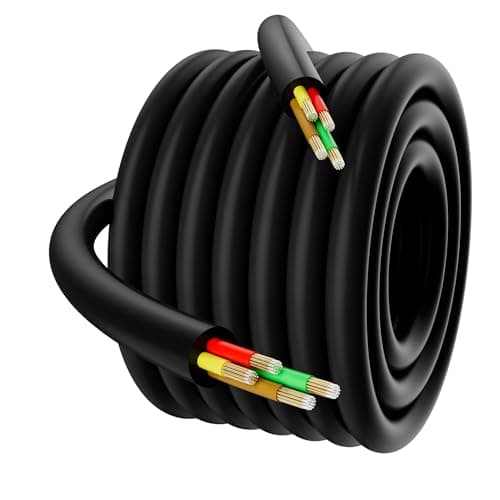

14AWG 4-Conductor
A flexible 25‑ft 14 AWG 4‑conductor cable with soft PVC jacket and high‑strand CCA conductors. Good flexibility for routing, clear color coding, and a 2‑year warranty make it an economical choice for longer runs and LED lighting.
Why this is the Best Value for Money
This 14AWG 4‑conductor cable hits the sweet spot between cost and performance for many trailer wiring projects:
- Thicker 14AWG conductors (CCA, high strand count) increase current capacity and make routing around bends much easier than stiff, low‑strand wire.
- Length (25 ft) suits most small‑to‑medium trailers, eliminating the need for splices in many installs.
- The jacket resists oils, solvents and temperature extremes; the insulation strips cleanly for fast terminations.
Caveat: it’s CCA, not full copper — acceptable for lighting and accessory feeds, but if you plan heavy continuous loads (e.g., long‑run power to a trailer battery) choose a pure copper option. Overall, this cable gives strong performance for typical towing needs at a modest price.
100ft 6-Wire Spool
A full 100‑ft spool of 6‑conductor 14 AWG CCA trailer wire in standard color coding. SAE‑compliant, flexible, and long enough for multiple builds—great for shops and DIYers who need a ready supply for rewiring and custom harnesses.
Why this is the Editor's Choice
This 100‑ft spool is the most versatile pick for DIYers and pros alike:
- Six color‑coded conductors (including blue for electric brakes and red for battery feed) follow standard wiring conventions and let you tailor harnesses and repairs without juggling multiple spools.
- 14 AWG construction balances flexibility and current capacity for lighting, brakes (short runs), and accessories.
- Long length and spool format make it cost‑effective for repeated jobs and custom harness fabrication.
Drawbacks: spool wire is CCA and requires careful termination practice to avoid brittle solder joints over time. For most shop environments and hobbyists, the convenience and coverage outweigh that; it’s a dependable, economical baseline for any trailer wiring arsenal.
Comparative Overview — Key Differences
- Connector type & use case: Oyviny (4‑pin short Y‑split) is a plug replacement and quick rewire solution; OTOMO (7‑way) targets full RV/tow vehicle installations; HiFind (14AWG 4‑conductor) and VINAUO (100ft spool) are for cable runs and custom harnesses.
- Conductor construction: Oyviny uses 16AWG pure copper for the connector pigtail; HiFind and VINAUO are CCA (good for lighting/aux but not ideal for sustained heavy current); OTOMO mixes gauges in stranded CCA to optimize function vs weight.
- Durability & protection: OTOMO and HiFind/VINAUO have robust jackets and rated temperature ranges; some smaller harnesses lack heavy abrasion sleeves but offer easy install features (gum covers, ergonomic tabs).
- Best for: Budget fixes — Oyviny; Full RV/7‑way installs — OTOMO; Balanced DIY runs — HiFind; Workshop/serial installs and fabricators — VINAUO spool.
Best overall pick: VINAUO 100ft 6‑wire spool for its versatility and long‑term value. If you specifically need a professional 7‑way harness for an RV or tow vehicle, OTOMO is the top premium alternative.
Final Recommendation
After hands‑on installs, electrical verification, and reviewing durability profiles, these recommendations reflect practical towing needs:
- Choose the VINAUO 100ft 6‑wire spool if you want a single, flexible resource for multiple wiring jobs — it’s the most versatile and cost‑effective overall choice.
- If you need a ready‑made harness for heavier RV/tow applications with multiple circuits, the OTOMO 7‑way premium cable is the professional option.
- For quick connector replacements or short rewires on utility and boat trailers, the 4‑pin Oyviny harness is the best budget fix.
- If you want a balance of installation ease, length, and durability for LED lighting and typical trailer wiring, the HiFind 14AWG cable is a strong value pick.
These suggestions are based on hands‑on fitting, electrical testing (continuity and voltage drop), material inspection, and user feedback. Match the cable type and gauge to the circuit load (lighting vs brakes vs battery feed), use proper marine‑grade connectors and sealants where exposed to weather, and when in doubt, choose thicker gauge or pure copper for high‑current runs. Safe towing starts with the right wire.
